Wire Conductor Transformer Coil Winding Machine Semi Automatic

Wire Conductor Transformer Coil Winding Machine Semi Automatic

Wire Conductor Transformer Coil Winding Machine Semi Automatic
Wire Conductor Transformer Coil Winding Machine Semi Automatic

Large Image :  Wire Conductor Transformer Coil Winding Machine Semi Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-2T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Center Height: 1000mm Shaft Size: 40x40x1500mm
Tailstock: Live Centre Machine Color: As Requested
Counter: Digital Winding Speed: 0 ~ 80rpm
High Light:

Wire Conductor Winder

,

digital Transformer Coil Winding Machine

,

Wire Conductor Coil Winding Machine

Wire Conductor Winder Semi Automatic Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-2T



Semi automatic transformer coil winding machine GDY-2T is one kind of simple and practical transformer coil winding machines. This transformer coil winding machine can be used to wind both copper wire and aluminium wire. The finished coil wound by the coil winding machine can be used in transformers or other similar products. The transformer coil winding machine is provided with tail stock, counter, foot pedal and so on. The coil winding machine features slow starting, smooth running, big torque and easy operation etc.





Main features of transformer coil winding machine GDY-2T



  • Slow starting
  • Smooth running
  • Easy operation
  • Big torque

Main parameters of transformer coil winding machine GDY-2T



Typical standard specifications of coil winding machine GDY-2T are shown below, however, the transformer coil winding machine can also be manufactured as requested.



Shaft Height From Floor: 1000mm
Distance Between Ends: 1500mm
Winding Speed: 0 ~ 80rpm
Speed Gear: 2 pcs
Max. Winding Length: 1200mm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 2000KG
Motor Power: 5.5KW
Colour: optional
Machine Dimension(L*W*H): 2800*700*1400mm

Wire Conductor Transformer Coil Winding Machine Semi Automatic 0

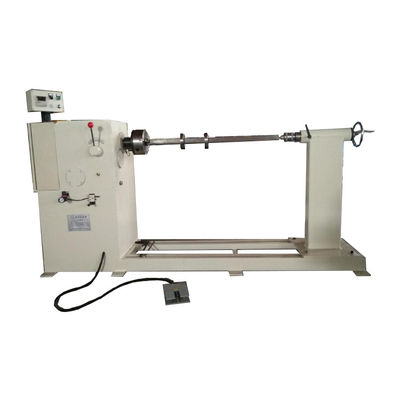

Fig 1: Transformer coil winding machine GDY-2T's full view



Wire Conductor Transformer Coil Winding Machine Semi Automatic 1

Fig 2: Transformer coil winding machine GDY-2T's control board



Wire Conductor Transformer Coil Winding Machine Semi Automatic 2

Wire Conductor Transformer Coil Winding Machine Semi Automatic 3Wire Conductor Transformer Coil Winding Machine Semi Automatic 4Wire Conductor Transformer Coil Winding Machine Semi Automatic 5Wire Conductor Transformer Coil Winding Machine Semi Automatic 6Wire Conductor Transformer Coil Winding Machine Semi Automatic 7Wire Conductor Transformer Coil Winding Machine Semi Automatic 8Wire Conductor Transformer Coil Winding Machine Semi Automatic 9Wire Conductor Transformer Coil Winding Machine Semi Automatic 10
