Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer

Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer

Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer
Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer

Large Image :  Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: T/T, L/C
Detailed Product Description
Name: Foil Winding Machine Function: Winding Foil Coils
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Welding Mode: TIG Welding Color: Optional
Machine Color: As Requested Machine Warranty: 12 Months
High Light:

Transformer Copper Foil Winder

,

2mm Thickness Copper Foil Winding Machine

,

Foil Conductor Copper Foil Winding Machine

Automatic Winding Foil Conductor Copper Foil Winding Machine For Making Transformer


Description of copper foil winding machine BRJ800-2

Copper foil winding machine BRJ800-2 is one professional foil conductor winder for making different specifications of foil coils. These coils can be used in transformers and other similar products. This kind of copper foil winding machine is provided with two foil deciolers and two insulation decoilers, which make the copper foil winding machine wind one or two layers of copper foil or aluminium foil and one or two layers of insulation paper at the same time. The copper foil winding machine is also provided with TIG welding unit for welding foil and bus bar together. With a touch screen and PLC control system, the copper foil winding machine can be operated easily.


Quick details of copper foil winding machine BRJ800-2

  • Maximum foil width 800mm
  • Winding copper or aluminium foil
  • Foil conductor ID 500mm, OD 1000mm
  • TIG welding
  • Pressing roller
  • Machine’s color can be customized


Technical parameters of copper foil winding machine BRJ800-2

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.

Foil width:200 ~ 800mm
Max. OD. of Wound Coil:800mm
Wound Coil Shape:oval, circle and rectangular,etc.
Conductor Foil Material OD.:1,000mm
Conductor Foil Material ID.:500mm
Foil Decoiler Number:2 pcs
Foil Decoiler Length:850mm
Foil Decoiler Diameter:Adjustable range 400-520mm
Winding Mandrel Size:80×80×1150 mm
Welding Mode:TIG
Insulation Decoiler Number:2 pcs
Max. Insulation Material Width:850mm
Insulation Decoiler Shaft:Expandable (pneumatic open/close action)
End-fill Strip Feeder:6 pcs
Edge Alignment System:Photoelectric sensing
Control System:PLC
User Interface:10inch (254mm) touch screen
Counting Turns Range:0 - 9999.9


Automatic Foil Conductor Copper Foil Winding Machine For Making Transformer 0

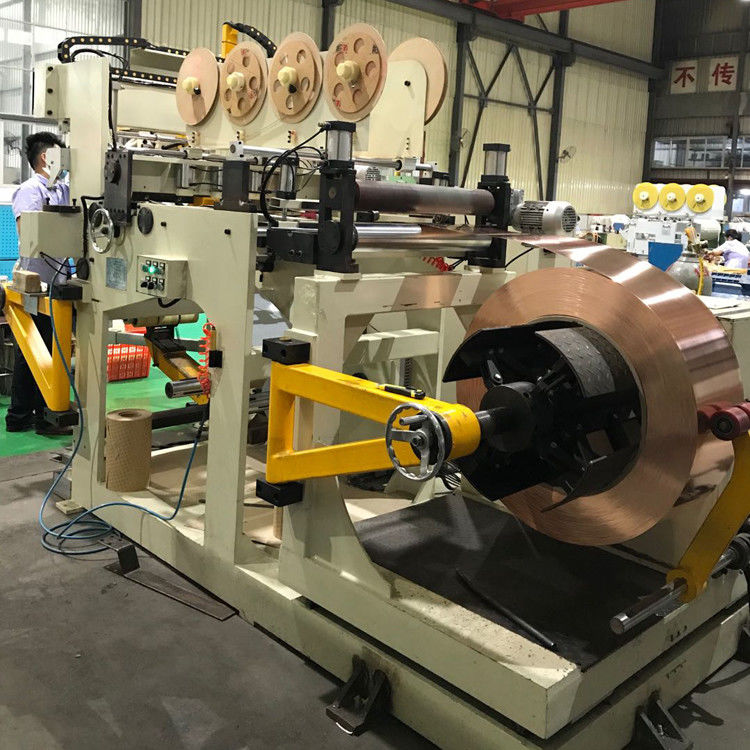

Fig 1: Copper foil winding machine BRJ800-2's front view
