| Product Name: | Automatic Coil Winding Machine | Usage: | Winding Transformer Coil |
|---|---|---|---|
| Wire Material: | Copper Or Aluminium | Wire Type: | Flat Or Round Wire |
| Winding Width: | 0 ~ 250mm | Wire Guide: | 1 Pc |
| Control System: | PLC | Warranty Time: | 12 Months |
| Highlight: | Automatic Coil Winding Machine 250mm,PLC Control System Coil Winding Machine,Live Center Tailstock Automatic Coil Winder |
||
PLC Control System Automatic Coil Winding Machine with Live Center Tailstock
Description of automatic coil winding machine ZPX250
Automatic coil winding machine ZPX250 is a special wire winder machine, which can be used to wind both copper wire and aluminium wire to make transformer coils and other similar products. The automatic coil winding machine can wind the coil with maximum height 250mm. The automatic coil winding machine is provided with main winding motor, wire guide, touch screen, a foot pedal and so on. One servo motor with power 0.75kw is adopted to drive the wire guide, which guarantees the precision of the start and stop actions. The touch screen of the automatic coil winding machine provides a user friendly interface and the parameters can be input through the touch screen. With PLC control system and HMI, the automatic coil winding machine can be operated easily. The tensioning system ensures that the wire is properly tensioned during the winding process. The automatic coil winding machine features slow starting, smooth running and so on.
Main features of automatic coil winding machine ZPX250
Technical parameters of automatic coil winding machine ZPX250
Typical standard specifications of automatic coil winding machine ZPX250 are shown below, however, the coil winding machine can also be manufactured as requested. .
| Shaft Height from Floor: | 900mm |
| Tailstock: | Live center |
| Winding Motor Power: | 2.2kw |
| Rotating Speed: | 0 ~ 120 rpm |
| Speed Regulation: | stepless speed regulation |
| Control System: | PLC |
| Maximum Flat Wire: | 2.0x8.0mm |
| Round Wire Diameter: | Ø0.3-4.0mm |
| Max Finished Coil Height: | 250mm |
| Max Finished Coil OD: | Ø400mm |
| Automatic Wire Laying Function: | Min. Spread Pitch: 0.01mm |
| Basic Function: | 5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc. |
| Counting Turn Range: | 0 ~ 9999.9 |

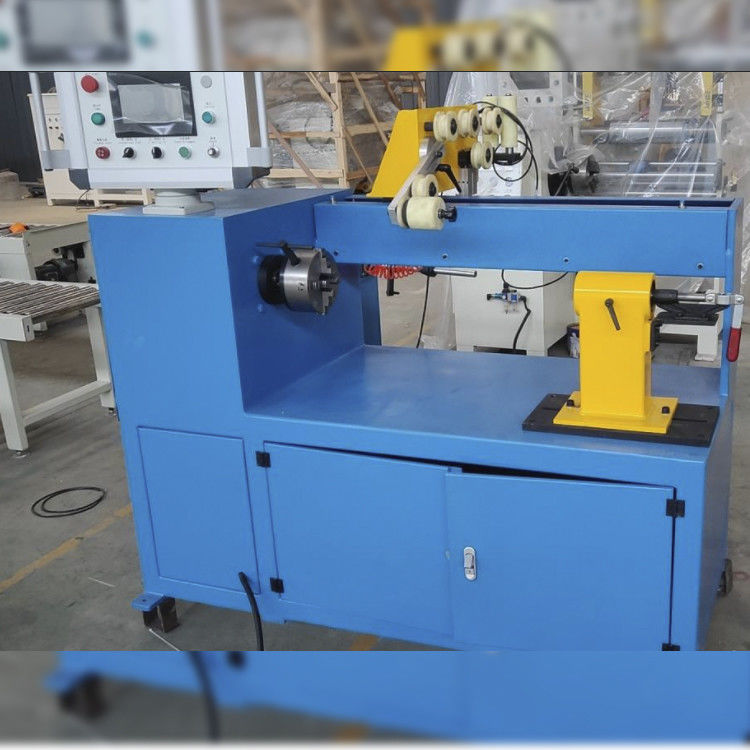

Fig 1: Automatic coil winding machine ZPX250's front view
Fig 2: Automatic coil winding machine ZPX250's wire guide
