Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving

Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving

Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving
Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving

Large Image :  Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-2T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Center Height: 1000mm Shaft Size: 40x40x1500mm
Tailstock: Live Centre Color: As Requested
Counter: Digital Speed: 0 ~ 80rpm
High Light:

PLC Semi Automatic Transformer Winder

,

Transformer Coil Winder Machine 5.5KW

,

1000mm Transformer Coil Winding Machine

5.5KW Motor Driving Semi Automatic Transformer Coil Winding Machine





Description of transformer coil winding machine GDY-2T



Transformer coil winding machine GDY-2T is semi automatic simple and practical transformer coil winding machine. The transformer coil winding machine can be used to wind both copper wire and aluminium wire. The wound coil can be used in transformers or other similar products. The transformer coil winding machine is provided with tail stock, counter, foot pedal and so on. Through pressing the foot pedal, the coil winding machine can be operated to stop and run and switch the rotating direction. The transformer features slow starting, smooth running, big torque and easy operation etc.





Main features of transformer coil winding machine GDY-2T



  • Slow starting
  • Smooth running
  • Easy operation
  • Big torque



Main parameters of transformer coil winding machine GDY-2T



Typical standard specifications of coil winding machine GDY-2T are shown below, however, the transformer coil winding machine can also be manufactured as requested.

Shaft Height From Floor: 1000mm
Distance Between Ends: 1500mm
Winding Speed: 0 ~ 80rpm
Speed Gear: 2 pcs
Max. Winding Length: 1200mm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 2000KG
Motor Power: 5.5KW
Colour: optional
Machine Dimension(L*W*H): 2800*700*1400mm

Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 0

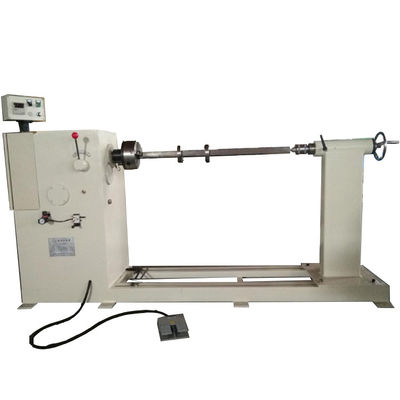

Fig 1: Transformer coil winding machine GDY-2T's full view



Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 1

Fig 2: Transformer coil winding machine GDY-2T's control board



Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 2

Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 3Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 4Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 5Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 6Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 7Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 8Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 9Semi Automatic Transformer Coil Winding Machine 5.5KW Motor Driving 10
