Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding

Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding

Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding
Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding
video play

Large Image :  Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ1200-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworth packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Detailed Product Description
Name: Transformer Foil Winding Machine Function: Winding Dry Transformer Coils
Cu Foil Thickness: 0.2 ~ 2.0mm Al Foil Thickness: 0.3 ~ 3.0mm
Welding Mode: TIG Welding Machine: 1 Set
Color: As Requested Warranty: 12 Months
High Light:

Copper Foil Winding And Welding Machine

,

Copper Foil Winding Machine 0.2mm

,

TIG Transformer Copper Foil Winder

Copper Foil Winding Machine 0.2-3.0mm Thickness Foil Winding And Welding





Description of copper foil winding machine BRJ1200-2



Copper foil winding machine BRJ1200-2 is a professional conductor foil winder. This kind of foil winding machine can wind both copper foil and aluminium foil to make cast resin transformer coils and other similar products. The copper foil with thickness from 0.2mm to 2.0mm and the aluminium foil with thickness from 0.3mm to 3.0mm can be wound with this kind of copper foil winding machine. With two foil decoilers, the copper foil winding machine can wind two layers of copper or aluminium foils. The copper foil winding machine can weld copper foil and copper bus bar together and weld aluminium foil and aluminium bus bar together with its TIG welding unit. The copper foil winding machine features easy operation and high automation.





Main components of copper foil winding machine BRJ1200-2

  • Main strong frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-fill strip feeder
  • Cleaning system
  • Cutting system
  • Deburring system
  • TIG welding unit
  • Electronic control system



Technical parameters of copper foil winding machine BRJ1200-2



Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below, however, these can be easily modified as requested.

Foil width: 200 ~ 1,200mm
Maximum Wounded Coil OD: Ø1,000mm
Finished Coil Shape: oval, circle and rectangular, etc
Conductor Material: Copper or Aluminum strip
Al Foil Thickness: 0.3 ~ 3.0 mm
Cu Foil Thickness: 0.2 ~ 2.0 mm
Maximum Conductor Material OD.: Ø 1,000mm
Conductor Material ID.: Ø 500mm (optional)
Foil Decoiler Expanding Range: Ø 420 ~ 520mm
Winding Power: 18KW
Welding Mode: TIG
Cutting Mode: Electric rolling shear
Insulation Decoiler: pneumatic open/close action
End-fill Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
User Interface: 10 inches (254mm) touch screen
Counting Range: 0 - 9999.9



Transformer Copper Foil Winding Machine 0.2 - 3.0mm Thickness Foil Winding And Welding 0

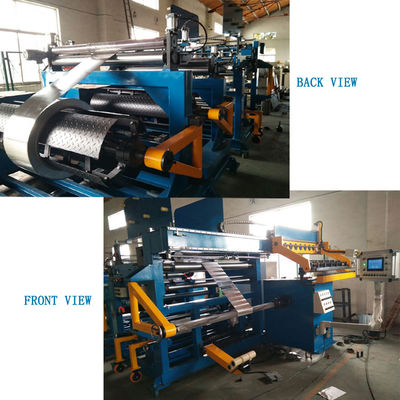

Fig 1: Copper foil winding machine BRJ1200-2's side view
