Description of transformer coil winding machine GDY-3T

Transformer coil winding machine GDY-3T is a special copper wire winder for making transformer. This transformer making equipment can be used to wind both copper wire and aluminium wire to make oil immersed transformer coils and other similar products. The transformer coil winding machine is provided with one 7.5kw winding motor as the main winding motor to provide enough torque to drive the winding shaft. One counter is provided to count the number of turns when winding. It is very easily to operate the transformer coil winding machine, only needing preset the number of turns and pressing the foot pedal, the transformer coil winding machine can wind the wire automatically and stop winding when finishing winding the number of turns preset. The foot pedal can be used to start or stop running the machine and switch the rotating direction of the transformer coil winding machien.

Main components of transformer coil winding machine GDY-3T

• Main frame
• Square shaft
• Split tailstock
• Foot pedal
• Counter
• Control board

Main parameters of transformer coil winding machine GDY-3T

Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.

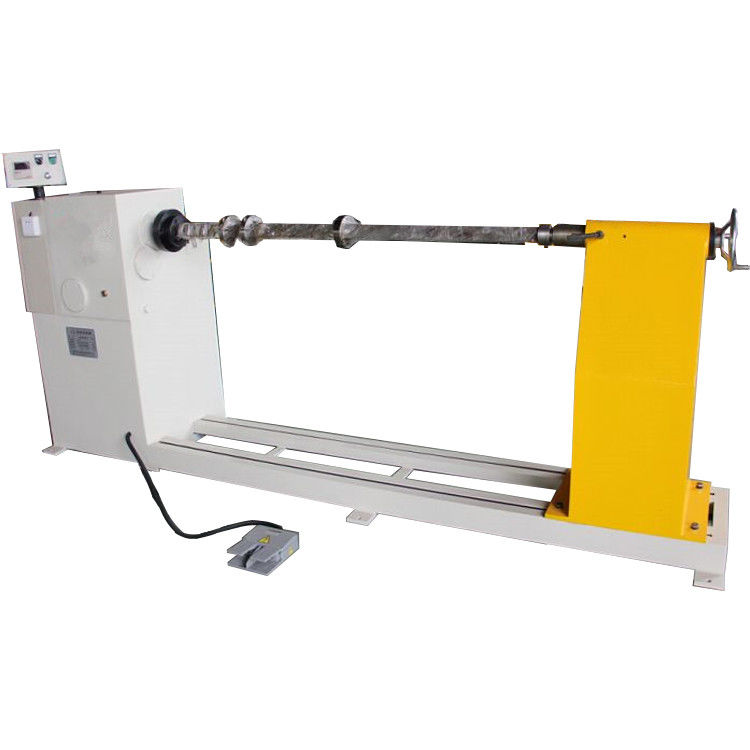

Fig 1: Transformer coil winding machine GDY-3T's full view

Fig 2: Transformer coil winding machine GDY-3T's control panel
