Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder

Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder

Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder
Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder

Large Image :  Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GDY-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2000 ~ 4000 per set
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Center Heigth: 1000mm Shaft Size: 40x40x1200mm
Tailstock: Split Type Color: As Requested
Counter: Digital Type Rotating Speed: 0 ~ 200rpm
High Light:

Horizontal Transformer Coil Winding Machine

,

Horizontal Copper Wire Winder

,

Oil Immersed Transformer Wire Winding Machine

Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder





Description of transformer coil winding machine GDY-1T



Transformer coil winding machine GDY-1T is a professional wire winder. The transformer coil winding machine can wind various types of wires, such as copper or aluminum wires with different diameters, and the winding machine also can wind round and flat wires. The transformer coil winding machine is mainly used to wind wire coils for transformers or other similar products. With a counter, the transformer coil winding machine can count the number of turns when winding. With a potentiometer on the screen board, the winding speed of the transformer coil winding machine can be adjusted stepless. The rotating direction of the transformer coil winding machine can be switched through the foot pedal. It is very easy to operate the transformer coil winding machine.





Quick details of transformer coil winding machine GDY-1T

  • Winding copper or aluminium wire
  • Winding width 1000mm
  • Maximum capacity 1000kg
  • Winding power 3kw
  • Winding shaft size 40x40x1200mm
  • Two speed gear



Specifications of transformer coil winding machine GDY-1T



Typical standard specifications of coil winding machine GDY-1T are shown below, however, the coil winding machine can also be manufactured as requested.



Center Height: 1000mm
Shaft Size: 40x40x1000mm
Flange Square Hole Size: 40x40mm
Winding Speed: 0 ~ 200rpm
Speed Gear: 2 pcs
Maximum Winding Winding: 1000mm
Counting Range: 0 ~ 9999.9
Maximum Capacity: 1000KG
Power: 3KW
Total Weight: 500 kg
Dimension(LxWxH): 2800x700x1400mm



Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 0

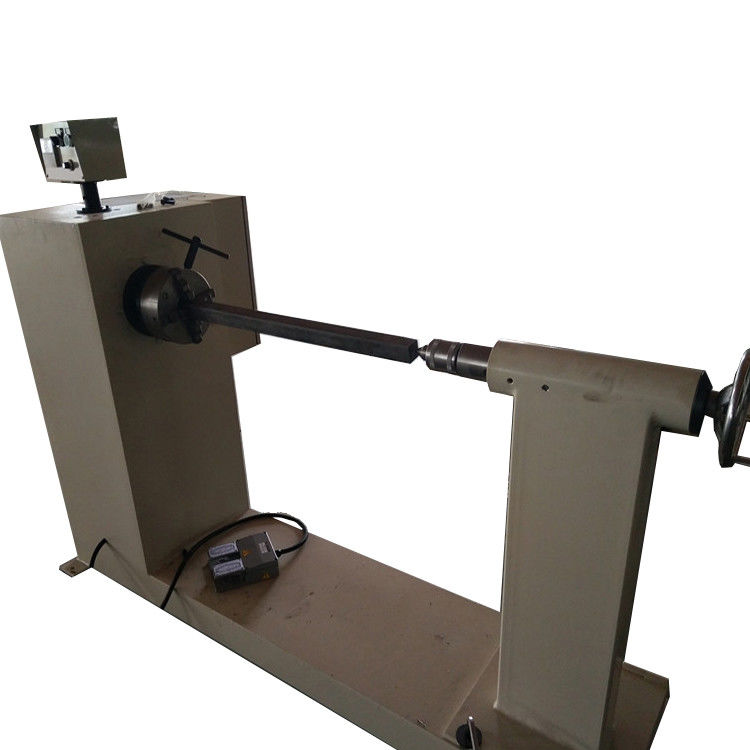

Fig 1: Transformer coil winding machine GDY-1T's full view



Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 1

Fig 2: Transformer coil winding machine GDY-1T's tailstock



Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 2

Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 3Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 4Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 5Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 6Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 7Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 8Oil Immersed Transformer Coil Winding Machine Horizontal Copper Wire Winder 9
