| Product Name: | Transformer Coil Winding Machine | Usage: | Winding Wire Coil |
|---|---|---|---|
| Max Winding Width: | 600mm | Center Height: | 900mm |
| Power: | 4kw | Rotating Speed: | 0 ~ 200rpm |
| Color: | Optional | Warranty: | One Year |
| High Light: | Programmable Copper Wire Winder,Automatic Oil Type Transformer Coil Winder |
||
Automatic Copper Wire Winder Programmable Oil Type Transformer Coil Winding Machine
Introduction of transformer coil winding machine ZPX600
Transformer coil winding machine ZPX600 is a professional wire winder for winding oil immersed transformer coil or other similar products. Flat or round copper wire and aluminium wire can be wound with this kind of transformer coil winding machine. The transformer coil winding machine is provided with 4kw motor to drive the winding shaft. Servo motor is adopted to drive the wire guide, which guarantees the precision of the wire guide moving. With PLC based control system and HMI, it is very easy to operate the transformer coil winding machine. The color of the transformer coil winding machine can be optional.
Main features of transformer coil winding machine ZPX600
Main parameters of transformer coil winding machine ZPX600
The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.
| Winding Shaft Center Height From Floor: | 900mm |
| Winding Shaft Size: | 40x40x900mm |
| Max Winding Width: | 600mm. |
| Winding Motor Power: | 4kw |
| Max. Winding Speed: | 200 rpm |
| Speed Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire: | Φ0.3 ~ Φ5.0mm |
| Max. Rotating Diameter: | Φ600mm |
| Max. Loading Capacity: | 500kg |
| Spread Pitch: | Min. 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Turns Preset: | 9999.9 |
| Counting Range: | 0 - 9999.9 |

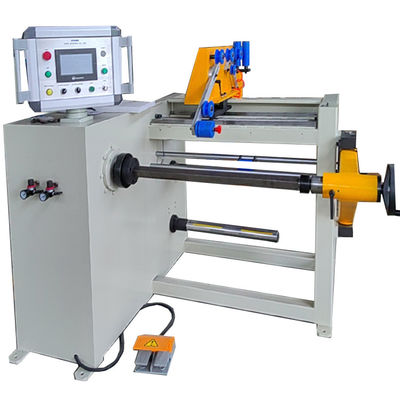

Fig 1: Transformer coil winding machine ZPX600's full view
Fig 2: Transformer coil winding machine ZPX600's winding shaft
