Automatic Cold Pressure Welding Foil Winder Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ300-2
Transformer foil winding machine BRJ300-2 is a special foil winder, which is mainly used to wind foil conductor, i.e. copper foil and aluminium foil to make foil coils. This kind of foil coils can be used in transformer and other similar products. The model of transformer foil winding machine, BRJ300-2, can wind copper or aluminium foil with max width 300mm. The transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The transformer foil winding machine’s control system is based on PLC, which can make the machine run automatically as per the parameters input. With HMI and PLC, the transformer foil winding machine can be operated very easily.
Quick details of transformer foil winding machine BRJ300-2
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 300mm |
| Coil Shape: | Round, Oval and Rectangle |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Ø500mm |
| Foil Material OD.: | Ø≤ 1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Insulation Paper Decoiler Number: | 2 sets |
| Insulation Paper Coil OD.: | ≤ Ø400mm |
| Insulation Paper Coil ID.: | Ø76mm |
| Insulation Decoiler Width: | 350mm |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power: | 5.5kw |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Control system: | PLC |
| Counting Range: | 0 - 9999.9 |

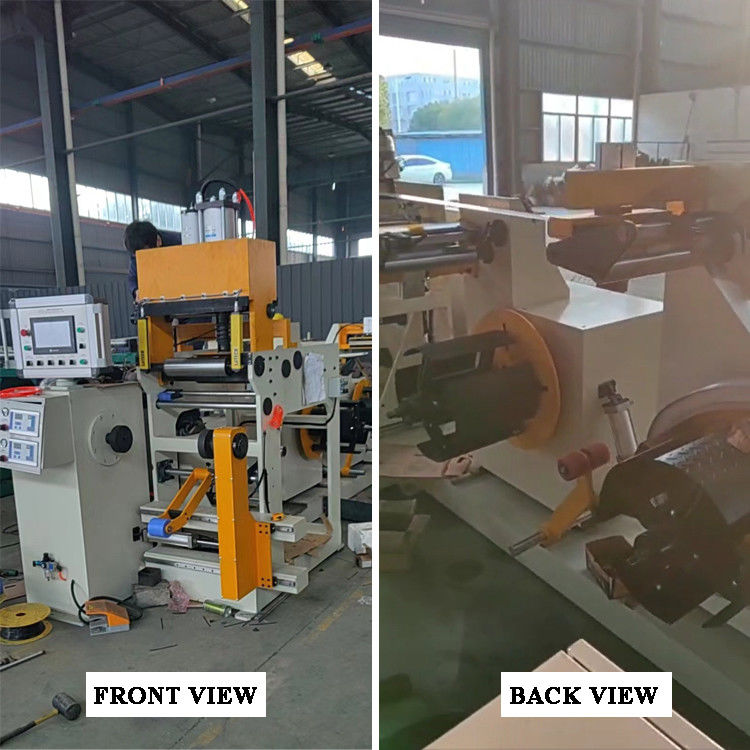

Fig 1: Transformer foil winding machine BRJ300-2's full view
Fig 2: Transformer foil winding machine BRJ300-2's welding effect
