| Product Name: | Transformer Foil Winding Machine | Foil Width: | 150 ~ 600mm |
|---|---|---|---|
| Foil Decoiler: | 2 Pcs | Winding Speed: | 0 ~ 26 Rpm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Insulation Decoiler: | 2 Pcs | Foil Cutter: | Electric Scissors |
| Highlight: | 26 Rpm Transformer Foil Winding Machine,TIG Welding Dry Transformer Foil Winder,150mm Transformer Foil Winding Machine |
||
Automatic TIG Welding Dry Type Transformer Foil Winding Machine
Quick details of transformer foil winding machine BRJ600-2
Description of transformer foil winding machine BRJ600-2
Transformer foil winding machine BRJ600-2 is mainly used to wind transformer foil coil and other similar products. The transformer foil winding machine can be used to wind copper or aluminium foil. The transformer foil winding machine is provided with pneumatic brake system for foil decoilers and insulation decoiler to provide tension to make sure the coil can be wound tightly when winding. With photoelectric sensors, the transformer foil winding machine can correct the position of foil, which can make the foil edge neat when winding. The transformer foil winding machine is with TIG welding unit for welding foil and bus bar together. With HMI and control system based on PLC, the transformer foil winding machine can be operated easily and intuitively.
Main parameters of transformer foil winding machine BRJ600-2
Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below, however, the foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 600mm |
| Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Number of Conductor Decoiler: | 2 pcs |
| Length of Conductor Decoiler: | 650mm |
| Conductor Decoiler Expanding Range: | Ø400 ~ 520mm |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed: | 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Insulation Paper Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Touch Screen: | 10 inch |
| Counting Turns Range: | 0 ~ 9999.9 |

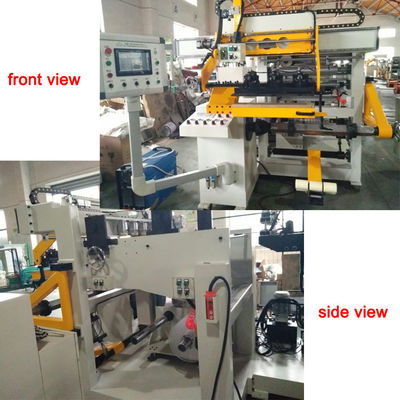

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
