Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder

Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder

Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder
Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder

Large Image :  Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: T/T, L/C
Detailed Product Description
Product Name: Foil Winding Machine Usage: Winding Foil Coils
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Welding Method: TIG Welding Color: Optional
Machine Color: As Requested Machine Warranty: 12 Months
High Light:

Custom Copper Foil Winding Machine

,

Low Voltage Transformer Coil Winder

Automatic Low Voltage Transformer Coil Winder Copper Foil Winding Machine





Introduction of copper foil winding machine BRJ800-2



Copper foil winding machine BRJ800-2 is a special winder equipment for winding foil conductor coils and this kind of foil coils can be used to make cast resin transformers and other similar products. The copper foil winding machine can wind one or two layers of copper or aluminium foil strip and one or two layers of insulation paper. The copper foil winding machine is provided with TIG welding unit for welding conductor foil and bus bar together. The copper foil winding machine is also provided with deburring unit and cleaning unit. The copper foil winding machine features slow starting, smooth running, easy operation and so on.





Quick detail of copper foil winding machine BRJ800-2

  • TIG welding
  • Pneumatic foil deburring
  • Pneumatic foil cleaning
  • Expanding mandrel
  • Pressing roller
  • Customized color



Main components of copper foil winding machine BRJ800-2



1) Main iron frame

2) Automatic winding unit

3) Foil conductor decoiler

4) Insulation paper decoiler

5) End-fill strip holder

6) Cleaning device

7) Cutting unit

8) Foil deburring system

9) Edge alignment system

10) Automatic welding unit

11) Electronic control system

12) Pneumatic system





Technical parameters of copper foil winding machine BRJ800-2



Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however the foil winding machine can also be manufactured as requested.

Foil width 200 ~ 800mm
Finished Coil Shape: oval, circle and rectangular
Conductor Foil Material OD.: Ø1,000mm
Conductor Foil Material ID.: Ø500mm
Foil Decoiler Number: 2 sets
Foil Decoiler Expanding Range: Ø480 ~ 520mm
Winding Mandrel Size: 80×80×1150 mm
Welding Method: TIG
Insulation Decoiler Number: 2 sets
Insulation Material OD. Max: Ø400mm
Insulation Material ID.: Ø76mm
Insulation Decoiler Shaft: Expandable
End-fill Strip Feeder: 6 pcs
Edge Alignment System: Photoelectric sensing
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen


Automatic Copper Foil Winding Machine Low Voltage Transformer Coil Winder 0

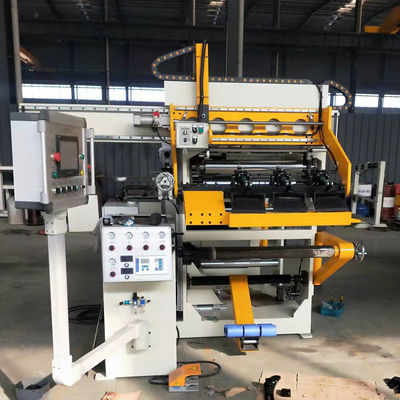

Fig 1: Copper foil winding machine BRJ800-2's front view
