| Product Name: | Coil Winding Macihne | Usage: | Winding Wire Coil |
|---|---|---|---|
| Winding Width: | 0 ~ 2500mm | Winding Speed: | 0 ~ 200 Rpm |
| Wire Conductor: | Cu Or Al Wire | Wire Size: | 0.3 ~ 3.0mm |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | Heavy Duty Automatic Coil Winder,Transformer Coil Winder Lathe,Transformer Coil Winding Machine 2500mm |
||
Transformer Coil Winder Lathe Heavy Duty Automatic Coil Winding Machine
Introduction of automatic coil winding machine ZPX2500
Automatic coil winding machine ZPX2500 is a professional wire coil winder. The automatic coil winding machine adopts automatic wire laying and tension technologies, which is especially suitable for winding different shapes of coils. These coils can be used in transformers and other similar products. The automatic coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, pneumatic system, PLC, and servo motors, etc. The automatic coil winding machine can wind the coil with maximum width 2500mm. With HMI and PLC, the automatic coil winding machine can be operated very easily.
Main components of automatic coil winding machine ZPX2500
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical parameters of automatic coil winding machine ZPX2500
Typical standard specifications of automatic coil winding machine ZPX2500 are shown below, however the coil winding machine can also be manufactured as requested.
| Height of the chuck to ground: | 1000mm |
| Shaft Size: | 50x50x2800mm |
| Insulation Decoiler Number: | 1 pc |
| Winding Power: | 7.5Kw |
| Winding Speed: | 0 ~ 200 Rpm |
| Tailstock Moving Range: | 800 ~ 2500mm |
| Speed Regulation: | stepless speed regulation |
| Round Wire Diameter: | Ø0.3 ~ 4.0mm |
| Max Winding Width: | 2500mm |
| Max. Rotating Diameter: | 800mm |
| Max. Coil Weight: | 500kg |
| Automatic Wire Laying: | Min. Spread pitch: 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Range: | 0~ 9999.9 |

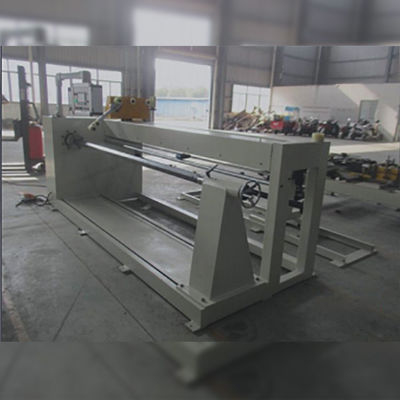

Fig 1: Automatic coil winding machine ZPX2500's full view

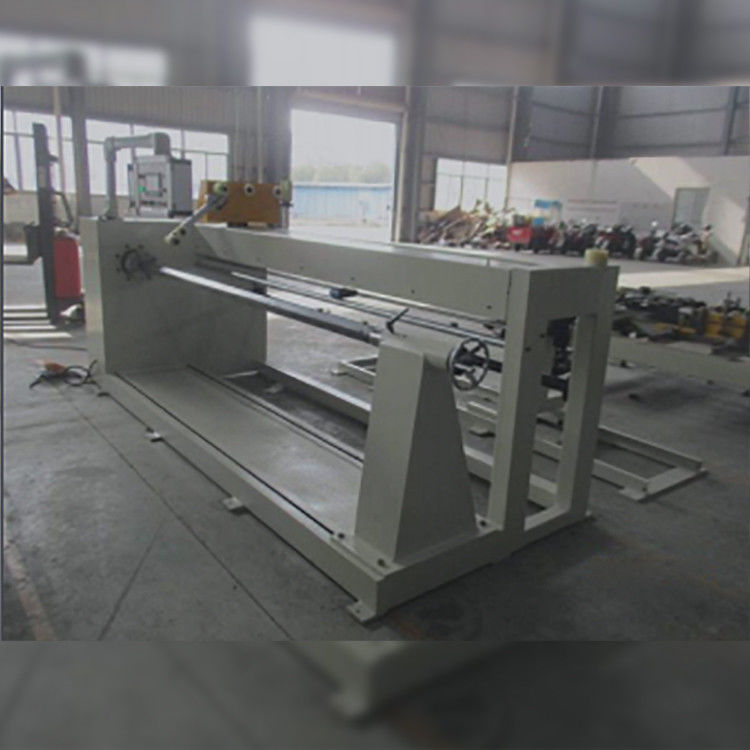

Fig 2: Automatic coil winding machine ZPX2500's side view
