Description of transformer coil winding machine ZPX1400



Transformer coil winding machine ZPX1400 is a heavy duty winding equipment, which can wind different specifications of coils. The wound coils can be used in transformers and other similar products. The transformer coil winding machine adopts automatic wire laying technology and servo motor driven mode, which guarantees the wire wound compactly and neatly. With a 7.5KW motor, the winding shaft provides enough torque to wind copper or aluminium wire. One potentiometer on the board is used to adjust the rotating speed of the transformer coil winding machine. The rotating direction of the winding shaft can be switched through the foot pedal. The coloured touch screen is used to provide a user friendly interface to input all the parameters. The transformer coil winding machine features slow starting, smooth running, big torque and high automation, etc.





Main Components of transformer coil winding machine ZPX1400



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system





Technical Parameters of transformer coil winding machine ZPX1400



Typical standard specifications of coil winding machine ZPX1400 are shown below, however the transformer coil winding machine can also be manufactured as requested.

Center Height: 900mm
Shaft Length: 1700mm
Transverse Width: 1400mm
Main Motor Power: 7.5Kw
Winding Speed: 0 ~ 90 rpm
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3-5.0mm
Max. Rotating OD.: 1200mm
Max. Loading Capacity: 700kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Counting Turn Range: 0 ~ 9999.9



Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine 0

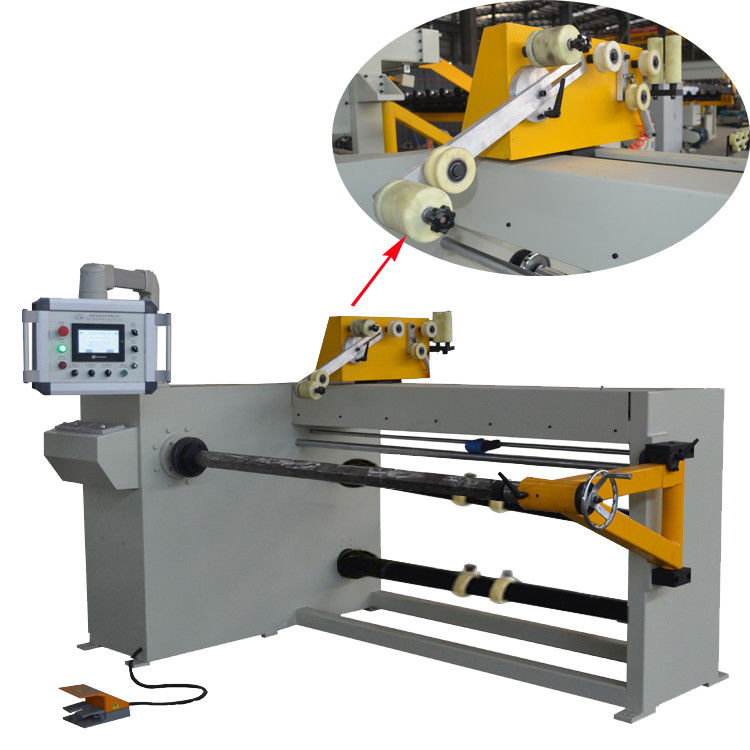

Fig 1: Transformer coil winding machine ZPX1400's front view
