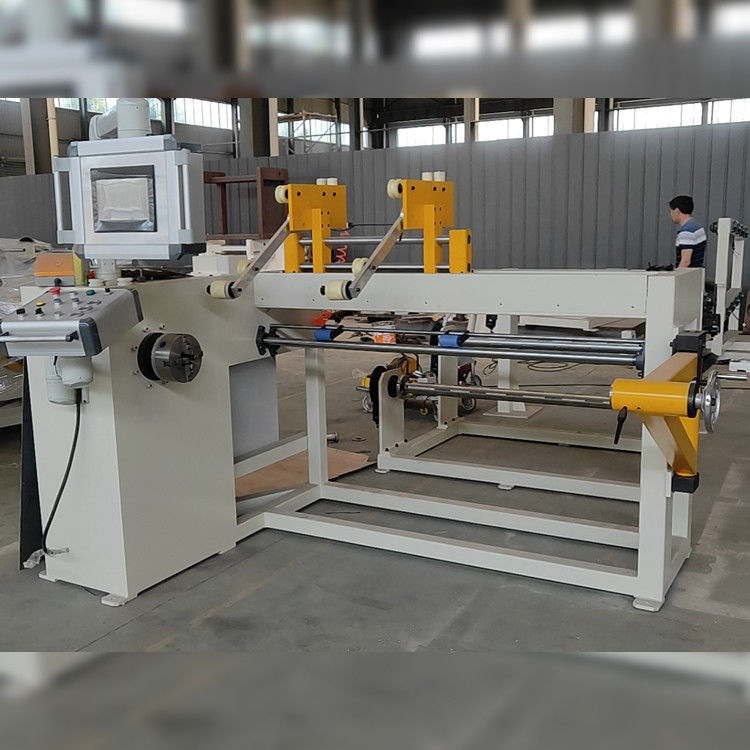

Programmable HV Winder Automatic Coil Winding Machine

Programmable HV Winder Automatic Coil Winding Machine

Programmable HV Winder Automatic Coil Winding Machine
Programmable HV Winder Automatic Coil Winding Machine
video play

Large Image :  Programmable HV Winder Automatic Coil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Usage: Making Transformer Coil
Motor Power: 11kw Winding Speed: 0 ~ 150rpm
Conductor: Copper Or Aluminium Wire Wire Type: Flat Or Round Wire
Control System: PLC Wire Guide: 2 Pcs
High Light:

Automatic Coil Winding Machine

,

HV Winder Automatic Coil Winding Machine

,

Programmable Automatic Coil Winding Machine

Programmable HV Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX600-2



Automatic Coil winding machine ZPX600-2, adopting automatic wire laying and tension technologies, is especially suitable for winding different kinds of coils. The coils can be used in transformers and other similar products. The machine is provided with main winding motor, automatic wire laying unit, insulation decoiler, coil stand, pneumatic system, PLC based control system, and servo motors, etc. It features high automation, full functions, and strong driving force, etc. This machine can wind 2 same coils at once.





Technical parameters of automatic coil winding machine ZPX600-2



Typical standard specifications of ZPX600-2 are shown below, and the automatic coil winding machine can also be manufactured as requested.

Centre height: 1000mm
Paper decoiler 2 pcs
Coil number:possible 2 pcs
Each coil height max.: 600mm
Wire dereeler: 2 pcs
Flat wire size: 5x12mm
Round wire diameter: 0.3 ~ 5.0mm
Max. coil OD.: 1200mm
Max. coil weight: 1200kg
Winding shaft size: 50x50x1600mm
Winding speed: 0 ~ 150RPM
Speed regulation: Variable frequency and stepless speed regulation
Motor power: 11kw
Automatic wire laying: Diameter of wire adjustable, Min. step: 0.01mm
Counting mode: 5-digit counting
Counting range: 0 ~ 9999.9



Programmable HV Winder Automatic Coil Winding Machine 0

Fig 1: Automatic coil winding machine ZPX600-2's front view



Programmable HV Winder Automatic Coil Winding Machine 1

Fig 2: Automatic coil winding machine ZPX600-2's back view



Programmable HV Winder Automatic Coil Winding Machine 2



Programmable HV Winder Automatic Coil Winding Machine 3Programmable HV Winder Automatic Coil Winding Machine 4Programmable HV Winder Automatic Coil Winding Machine 5Programmable HV Winder Automatic Coil Winding Machine 6Programmable HV Winder Automatic Coil Winding Machine 7

Programmable HV Winder Automatic Coil Winding Machine 8Programmable HV Winder Automatic Coil Winding Machine 9

Programmable HV Winder Automatic Coil Winding Machine 10
