Transformer Winding Machine PLC Control Automatic Coil Winding Machine

Transformer Winding Machine PLC Control Automatic Coil Winding Machine

Transformer Winding Machine PLC Control Automatic Coil Winding Machine
Transformer Winding Machine PLC Control Automatic Coil Winding Machine

Large Image :  Transformer Winding Machine PLC Control Automatic Coil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000 ~ 15000
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Coil Winding Machine Winding Width: 1000mm, Maximum
Rotating Power: 5.5kw Speed: 0 ~ 160rpm
Wire Guide: Driven By Servo Motor Warranty Period: 12 Months
Control Mode: Manual/Automatic Power Supply: AC
Winding Direction: Clockwise/Anticlockwise Wire Diameter: 0.3 ~ 5.0mm
High Light:

PLC Control Coil Winding Machine

,

Automatic Coil Winding Machine

,

Transformer Winding Machine

Transformer Winding Machine PLC Control Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX1000



Automatic coil winding machine ZPX1000 is a professional winder equipment. The coil winding machine is mainly used to wind copper wire or aluminium wire to make wire coils. The coils can be used to make transformers and other similar products. The maximum winding width of the automatic coil winding machine is 1000mm. The automatic coil winding machine is provided with one servo motor to drive a wire guide, which guarantees the wire guide move precisely. The automatic coil winding machine is very easy to be operated through a touch screen.





Features of automatic coil winding machine ZPX1000

  • slow starting
  • smooth running
  • accurate control
  • big torque
  • easy operation
  • 12 months warranty



Main parameters of automatic coil winding machine ZPX1000



The following is the standard specifications of the automatic coil winding machine ZPX1000 and the automatic coil winding machine can also be manufactured as requested.



Winding Shaft Center Height: 900mm
Winding Shaft Size: 40x40x1300mm
Maximum Winding Width: 1000mm
Winding Power: 5.5kw
Rotating Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5mm x 12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Counting Turn Range: 0 ~ 9999.9



Transformer Winding Machine PLC Control Automatic Coil Winding Machine 0

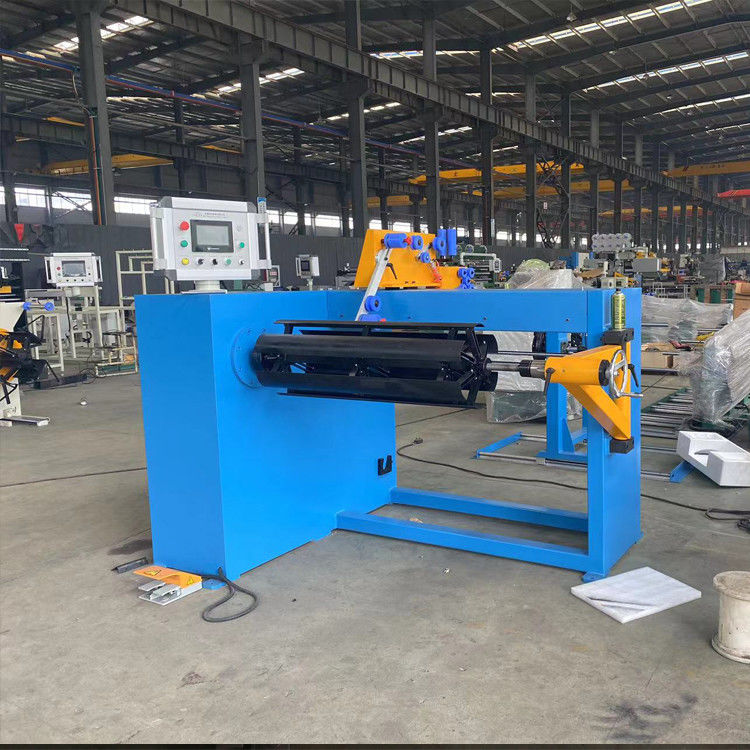

Fig 1: Automatic coil winding machine ZPX1000's front view



Transformer Winding Machine PLC Control Automatic Coil Winding Machine 1

Fig 2: Automatic coil winding machine ZPX1000's wire guide



Transformer Winding Machine PLC Control Automatic Coil Winding Machine 2Transformer Winding Machine PLC Control Automatic Coil Winding Machine 3



Transformer Winding Machine PLC Control Automatic Coil Winding Machine 4Transformer Winding Machine PLC Control Automatic Coil Winding Machine 5

Transformer Winding Machine PLC Control Automatic Coil Winding Machine 6Transformer Winding Machine PLC Control Automatic Coil Winding Machine 7

Transformer Winding Machine PLC Control Automatic Coil Winding Machine 8Transformer Winding Machine PLC Control Automatic Coil Winding Machine 9Transformer Winding Machine PLC Control Automatic Coil Winding Machine 10Transformer Winding Machine PLC Control Automatic Coil Winding Machine 11
