Transverse Width 600mm Cast Resin Transformer Foil Winding Machine
Quick details of transformer foil winding machine BRJ600-2
Description of transformer foil winding machine BRJ600-2
Transformer foil winding machine BRJ600-2 is a professional winder equipment. The transformer foil winding machine is mainly used to wind copper foil or aluminium foil. The transformer foil winding machine can wind one or two layers of foil and one or two layers of insulation paper. The transformer foil winding machine is provided with photoelectric sensors, which can correct the position of foil foil to guarantee the foil edge neat when winding. The transformer foil winding machine is provided with a TIG welding unit for welding foil and bus bar together. With HMI and control system based on PLC, the transformer foil winding machine can be operated easily and intuitively.
Main parameters of transformer foil winding machine BRJ600-2
Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below and the foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 600mm |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Number of Conductor Decoiler: | 2 pcs |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed: | 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 ~ 9999.9 |
| Power Supply: | 3-phase 380V 50Hz |

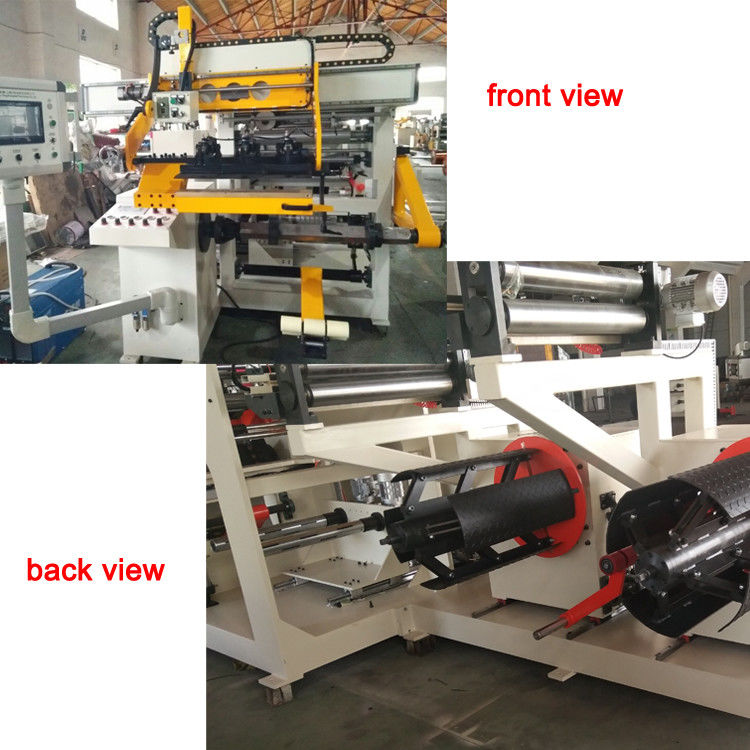

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
