| Name: | Transformer Foil Winding Machine | Foil Width: | 150 ~ 800mm |
|---|---|---|---|
| Welding Mode: | Cold Pressure Welding | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~3.0mm | Winding Speed: | 0 ~ 20 Rpm |
| Motor Power: | 15kw | Color: | Optional |
Cold Pressure Welding Foil Sheet Winder Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is a professional foil sheet winder, this kind of foil coils can be used to make make cast resin transformer. This model of transformer foil winding machine is provided with 15kw motor to drive the winding shaft, which provide big torque. The transformer foil winding machine BRJ800-2 can be used to wind foil sheet with maximum width 800mm. With two foil decoilers, the transformer foil winding machine can wind two layers of oil at most. The transformer foil winding machine adopts cold pressure welding process to weld foil and bus bar together. With HMI and control system based on PLC, the transformer foil winding machine can be operated very easily.
Quick details of transformer foil winding machine BRJ800-2
1) Two foil decoilers
2) Two insulation paper decoilers
4) End-fill strip feeder
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below and the foil winding machine can also be manufactured as requested.
| Foil Width: | 150mm ~ 800mm |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Expansion Range: | Ø420 - 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Shear: | Electric disc shear |
| Insulation Decoiler Number: | 2 sets |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |

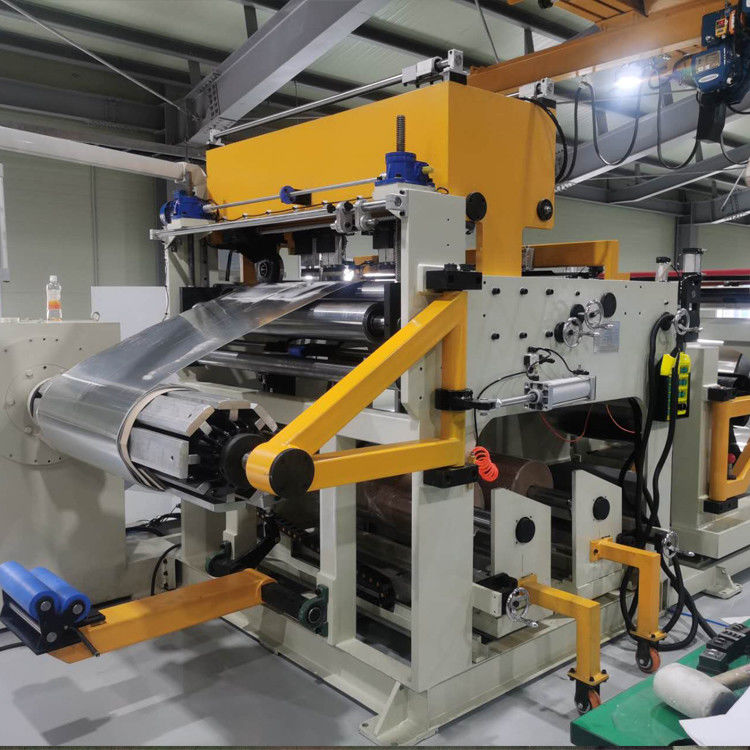

Fig 1: Transformer foil winding machine BRJ800-2's full view
Fig 2: Transformer foil winding machine BRJ300-2's welding effect
