Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Coil Winding Machine | Usage: | Winding Wire Coils |
|---|---|---|---|
| Center Height: | 1000mm | Shaft Size: | 40x40x1500mm |
| Tail Stock: | Live Centre | Color: | Optional |
| Counter: | Digital | Winding Speed: | 0 ~ 80rpm |
| Highlight: | High Voltage Transformer Coil Winding Machine,Semi Automatic Transformer Coil Winding Machine,High Voltage Transformer Coil Winder |
||
Semi Automatic Wire Winder High Voltage Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-2T
Transformer coil winding machine GDY-2T is a professional winding equipment, which is mainly used to wind transformer coils. The transformer coil winding machine can wind different sizes of copper and aluminium wires. These wound coils can be used in transformers or other similar products. The transformer coil winding machine is provided with main winding motor, tail stock, counter, foot pedal and so on. The foot pedal of the coil winding machine can stop and run the machine and switch the rotating direction. The transformer features slow starting, smooth running, big torque and easy operation etc.
Main features of transformer coil winding machine GDY-2T
Main parameters of transformer coil winding machine GDY-2T
Typical standard specifications of coil winding machine GDY-2T are shown below and the transformer coil winding machine can also be manufactured as requested.
| Shaft Height From Floor: | 1000mm |
| Distance Between Ends: | 1500mm |
| Winding Speed: | 0 ~ 80rpm |
| Speed Gear: | 2 pcs |
| Max. Winding Length: | 1200mm |
| Counting Range: | 0 ~ 9999.9 |
| Max. Loading Capacity: | 2000KG |
| Motor Power: | 5.5KW |
| Colour: | optional |
| Machine Dimension(L*W*H): | 2800*700*1400mm |

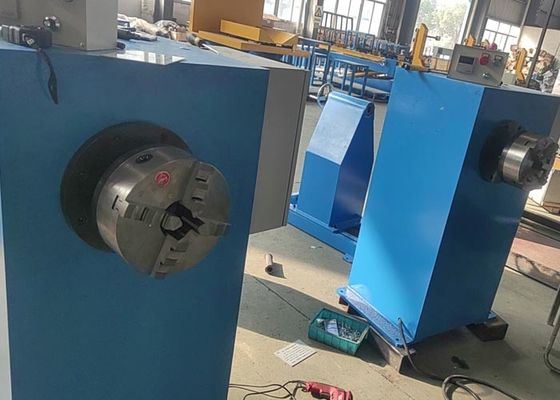

Fig 1: Transformer coil winding machine GDY-2T's full view
Fig 2: Transformer coil winding machine GDY-2T's control board
