| Product Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Welding Mode: | TIG | Welding Machine: | 1 Set |
| Motor Power: | 22kw | Warranty: | 12 Months |
| Highlight: | Automatic Copper Foil Winding Machine,Low Voltage Copper Foil Winding Machine,Conductor Foil Winder |
||
Conductor Foil Winder Automatic Low Voltage Copper Foil Winding Machine
Description of copper foil winding machine BRJ1200-2
Low voltage transformer copper foil winding machine BRJ1200-2 is a professional conductor foil winding machine. The foil winding machine can wind both copper foil and aluminium foil. With two foil decoilers, the copper foil winding machine can winding one or two layers of foil. The copper foil winding machine can wind the foil with thickness from 0.2mm to 3.0mm. The maximum width of foil is 1200mm. With PLC and HMI, the copper foil winding machine can be operated very easily.
Main Components of copper foil winding machine BRJ1200-2
Technical Parameters of copper foil winding machine BRJ1200-2
Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 200 - 1,200mm |
| Maxinum Wounded Coil OD: | Ø1,000mm |
| Conductor Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Expanding Range: | Ø 420-520mm |
| Winding Power: | 22KW |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler: | 2 pcs |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

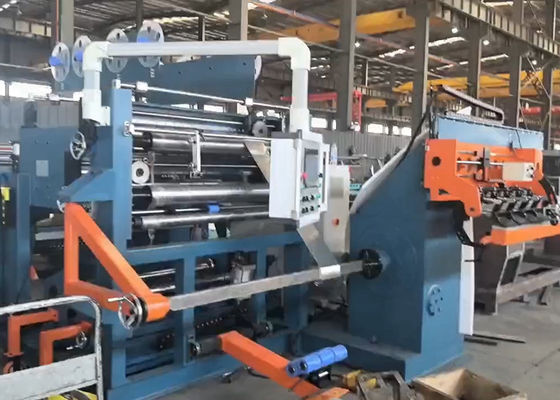

Fig 1: Copper foil winding machine BRJ1200-2's side view
Fig 2: Copper foil winding machine BRJ1200-2's back view
