| Product Name: | Coil Winding Machine | Usage: | Winding Wire Coil |
|---|---|---|---|
| Motor Power: | 4kw | Winding Speed: | 0 ~ 160rpm |
| Conductor: | Cu Wire Or Al Wire | Wire Type: | Flat Or Round Wire |
| Wire Size: | 0.3mm ~ 5.0mm | Warranty Period: | 12 Months |
| Highlight: | Three Coil Winder Equipment,Automatic Coil Winding Machine,Three Coil Winder Machine |
||
Three Coil Winder Equipment Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX150-3
Automatic coil winding machine ZPX150-3 is one kind of high effective wire coil winder. The automatic woil winding machine is provided with a wire guide driven by servo motor, which make the coil winding machine wind wire automatically. With three sets of wire guide unit, the automatic coil winding machine can wind three coils at once. With PLC control system and HMI, the automatic coil winding machine features high automation and easy operation, etc.
Main components of automatic coil winding machine ZPX150-3
1. Main steel frame, it is welded with steel
2. Main winding unit, including winding motor and winding shaft
3. Automatic wire laying unit, driven by 750w servo motor
4. PLC based control system,
5. Pneumatic system
6. Servo motor
7. Foot pedal
Technical parameters of automatic coil winding machine ZPX150-3
Typical standard specifications of automatic coil winding machine ZPX150-3 are shown below and the coil winding machine can also be manufactured as requested.
| Center Height: | 900 mm |
| Square Shaft Size: | 40x40mm |
| Round Wire Diameter: | Ø0.3-4.0 mm |
| Max. Flat Wire Size: | 3x8 mm |
| Finished Coil ID.: | Depends on your mold (shaft size 40*40 mm) |
| Max. Finished Coil OD.: | Ø400 mm |
| Max. Each Coil Length: | 150 mm |
| Winding Motor Power: | 4kw |
| Winding Speed: | 0 ~ 200 rpm |
| Winding Speed Regulation: | Variable frequency and stepless speed regulation |
| Control system: | PLC |
| Spread Pitch: | Min. step: 0.01 mm |
| Counting Mode: | 5-digit counting |
| Max. Turns Number Preset: | 9999.9 |

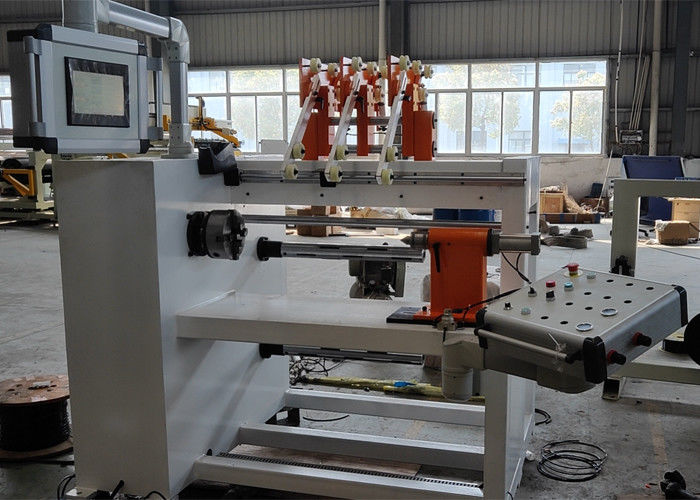

Fig 1: Automatic coil winding machine ZPX150-3's full view
Fig 2: Automatic coil winding machine ZPX150-3's wire guide
