| Name: | Transformer Foil Winding Machine | Foil Width: | 150 ~ 300mm |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~3.0mm |
| Winding Speed: | 0 ~ 35 Rpm | Winding Power: | 5.5kw |
| Machine Color: | Optional | Warranty: | 12 Months |
| Highlight: | Automatic Conductor Sheet Winding Equipment,Automatic Foil Winding Machine,Transformer Foil Winding Equipment |
||
Automatic Conductor Sheet Winding Equipment Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ300
Transformer foil winding machine BRJ300 can be used to wind one layer of foil and one or two layers of insulation paper. The foil winding machine can wind both copper foil and aluminium foil. The transformer foil winding machine can weld different kinds of conductor together with the cold pressure welding unit, that is to say, the foil winding machine can weld not only copper foil and copper bus bar or aluminium foil and aluminium bus bar, but also copper foil and aluminium bus bar or aluminium foil and copper bus bar together. With the expanding range from Ø480mm to Ø520mm, the foil decoiler of the foil winding machine can be used to place the conductor foil material with inner diameter 500mm and maximum outer diameter 1000mm.
Main components of transformer foil winding machine BRJ300
Technical parameters of transformer foil winding machine BRJ300
Typical standard specifications of transformer foil winding machine BRJ300 are shown below and the transformer foil winding machine can also be manufactured as requested.
| Foil width: | 100 ~ 300mm |
| Finished Coil Shape: | Oval, circle and rectangular |
| Conductor Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 1 set |
| Foil Decoiler Length: | 350 mm |
| Foil Decoiler Expanding Range: | Ø480 ~ 520mm |
| Max Coil Weight: | 750 KG |
| Tension Mode: | Pneumatic |
| Adjusting Speed Mode: | Stepless adjustable |
| Rotating Speed: | 0 ~ 35 rpm |
| Insulation Decoiler Number: | 2 sets |
| Insulation Decoiler Width: | 350mm |
| Control system: | PLC |
| Touch Screen: | 10inch (254mm) |
| Counting Turn Range: | 0 - 9999.9 |

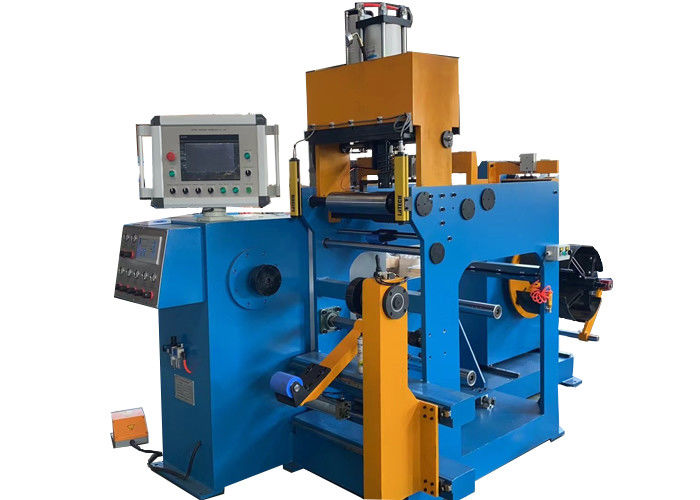

Fig 1: Transformer foil winding machine BRJ300's full view
Fig 2: Transformer foil winding machine BRJ300's welding effect
