Transformer Coil Winding Machine With 750w Servo Motor Driven Wire Guide
Description of transformer coil winding machine ZPX1400
Transformer coil winding machine ZPX1400 is a professional winding equipment. The transformer coil winding machine is mainly used to wind wire coils, and these wound coils can be used in transformers and other similar products. With a wire guide, the transformer coil winding machine can lay the wire automatically. The transformer coil winding machine is provided with a 7.5KW motor to provide enough torque to wind copper or aluminium wire. The rotating speed of the transformer coil winding machine can be adjusted through a potentiometer on the board. The winding direction of the winding shaft can be switched through a foot pedal. With PLC and HMI, the transformer coil winding machine features high automation and easy operation etc.
Main Components of transformer coil winding machine ZPX1400
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters of transformer coil winding machine ZPX1400
Typical standard specifications of coil winding machine ZPX1400 are shown below, however the transformer coil winding machine can also be manufactured as requested.
| Center Height: | 900mm |
| Shaft Length: | 1700mm |
| Transverse Width: | 1400mm |
| Main Motor Power: | 7.5Kw |
| Winding Speed: | 0 ~ 90 rpm |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Ø0.3-5.0mm |
| Max. Rotating OD.: | 1200mm |
| Max. Loading Capacity: | 700kg |
| Spread Pitch: | Min. 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Turn Range: | 0 ~ 9999.9 |

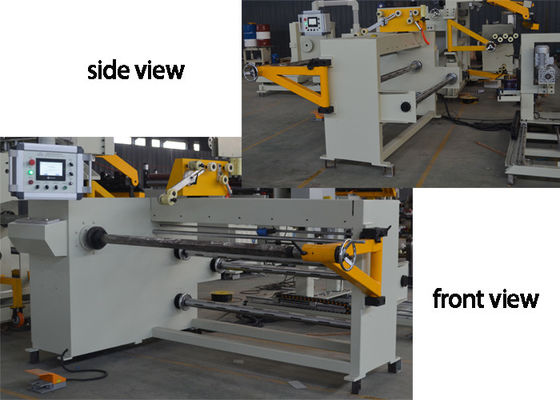

Fig 1: Transformer coil winding machine ZPX1400's front view
Fig 2: Transformer coil winding machine ZPX1400's triangle support
