| Product Name: | Transformer Foil Winding Machine | Foil Width: | 150 ~ 800mm |
|---|---|---|---|
| Welding Mode: | Cold Pressure Welding | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~3.0mm | Winding Speed: | 0 ~ 20 Rpm |
| Winding Power: | 15kw | Color: | Optional |
| Highlight: | Winder Transformer Foil Winding Machine,Cold Transformer Foil Winding Machine |
||
Factory Direct Sales Cold Welding Winder Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is a professional cold pressure welding winder equipment. With 15kw main winding motor, the transformer foil winding machine is with big torque to wind foil and insulation paper. The transformer foil winding machine is provided with two foil decoilers and two insulation decoilers, which makes the transformer foil winding machine can wind one or two layers of conductor foil and one or two layers of insulation paper at the same time. With cold pressure welding unit, the transformer foil winding machine weld different material foil and bus bar together. With HMI and control system based on PLC, the transformer foil winding machine features high automation, easy operation and so on.
Quick details of transformer foil winding machine BRJ800-2
1) Two foil decoilers
2) Two insulation paper decoilers
4) End-fill strip feeder
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic cold welding unit
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below and the foil winding machine can also be manufactured as requested.
| Foil Width: | 150mm ~ 800mm |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Expansion Range: | Ø420 - 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Shear: | Electric disc shear |
| Insulation Decoiler Number: | 2 sets |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |

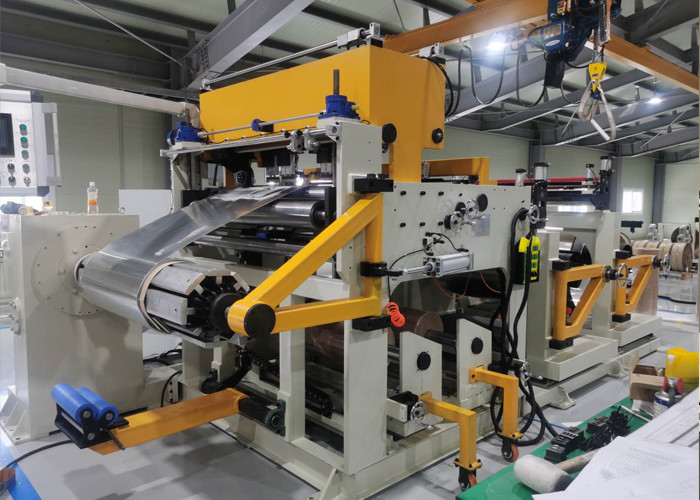

Fig 1: Transformer foil winding machine BRJ800-2's full view
Fig 2: Transformer foil winding machine BRJ300-2's welding effect
