Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Coil Winding Machine | Wire Type: | Flat Wire Or Round Wire |
|---|---|---|---|
| Control System: | PLC | Winding Speed: | 0 ~ 200rpm |
| Wire Guide: | 3 Pcs | Warranty Period: | 12 Months |
| Color: | Optional | Wire Material: | Copper / Aluminium Wire |
| Highlight: | Automatic Transformer Coil Winding Machine,Wire Winder Transformer Coil Winding Machine,Three Head Transformer Coil Winding Machine |
||
Three Head Wire Winder Automatic Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX150-3
Transformer coil winding machine is a professional winder, which can be used to wind copper or aluminium wire coils. The transformer coil winding machine is a high effective winder. With three wire guides, the transformer coil winding machine can wind three same coils at the same time. With PLC control system and HMI, the transformer coil winding machine can be operated very easily. The transformer coil winding machine features high automation, slow start, smooth running and so on.
Quick details of transformer coil winding machine ZPX150-3
Technical parameters of transformer coil winding machine ZPX150-3
Typical standard specifications of transformer coil winding machine ZPX150-3 are shown below and the coil winding machine can also be manufactured as requested.
| Center Height: | 900 mm |
| Square Shaft Size: | 40x40x800 mm |
| Round Wire Diameter: | Ø0.3 ~ 4.0 mm |
| Maximum Flat Wire Size: | 3x10 mm |
| Maximum Finished Coil OD.: | 400 mm |
| Maximum Each Coil Length: | 150 mm |
| Winding Motor Power: | 4kw |
| Winding Speed: | 0 ~ 200 rpm |
| Winding Speed Regulation: | stepless speed regulation |
| Control system: | PLC |
| Minimum Spread Pitch: | 0.01 mm |
| Counting Mode: | 5-digit counting, |
| Maximum Turns Number Preset: | 9999.9 |

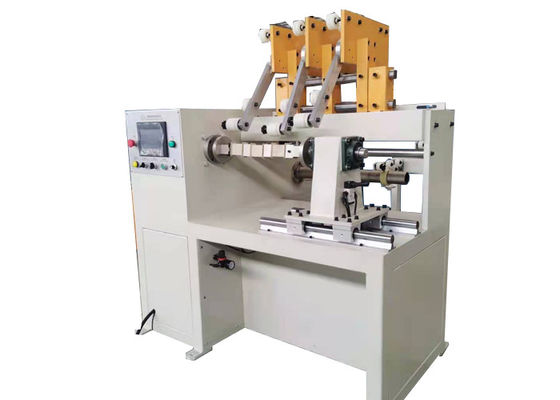

Fig 1: Transformer coil winding machine ZPX150-3's full view
Fig 2:Transformer coil winding machine ZPX150-3's back view
