Conductor Foil Film Winder Automatic Transformer Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Transformer Foil Winding Machine | Foil Width: | 150 ~ 300mm |
|---|---|---|---|
| Welding Mode: | Cold Pressure Welding | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~3.0mm | Winding Speed: | 0 ~ 35 Rpm |
| Power: | 5.5kw | Machine Color: | Optional |
| Highlight: | Automatic Transformer Foil Winding Machine,Conductor Foil Film Winder,Transformer Foil Film Winder |
||
Conductor Foil Film Winder Automatic Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ300-2
Transformer foil winding machine BRJ300-2 is one kind of cold pressure welding foil winding machine. This kind of foil winding machine is provided with two sets of foil decoilers and two sets of insulation decoilers, which makes the foil winding machine hold one or two layers of foil and one or two layers of insulation paper. The conductor foil can be copper foil or aluminium foil. With the cold pressure welding unit, the transformer foil winding machine can weld different kinds of conductor together, that is to say, the machine can weld not only cu foil and cu bus bar or al foil and al bus bar, but also cu foil and al bus bar or al foil and cu bar together. The transformer foil winding machine is provided with a PLC and HMI, which makes the machine be operated easily.
Main components of transformer foil winding machine BRJ300-2
1. Main frame
2. Foil decoilers
3. Foil feeder
4. Pressing roller
5. Main winding unit
6. PLC based control system
7. Pneumatic system
8. Cold welding
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below and the transformer foil winding machine can also be manufactured as requested.
|
Foil width: |
100 ~ 300mm |
|
Finished Coil Shape: |
Oval, circle and rectangular |
|
Conductor Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Foil Decoiler Number: |
2 pcs |
|
Foil Decoiler Length: |
350 mm |
|
Foil Decoiler Expanding Range: |
Ø480 ~ 520mm |
|
Max Coil Weight: |
750 KG |
|
Tension Mode: |
Pneumatic |
|
Adjusting Speed Mode: |
Stepless adjustable |
|
Rotating Speed: |
0 ~ 35 rpm |
|
Insulation Decoiler Number: |
2 pc |
|
Insulation Decoiler Width: |
350mm |
|
Control system: |
PLC |
|
Touch Screen: |
10inch (254mm) |
|
Counting Range: |
0 - 9999.9 |

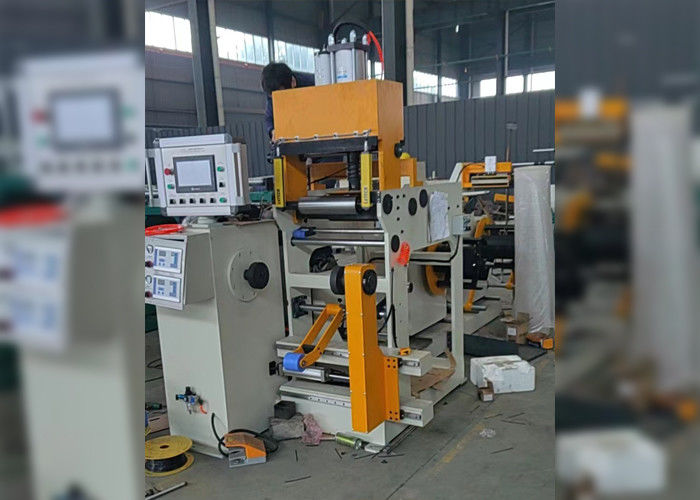

Fig 1: Transformer foil winding machine BRJ300-2's full view

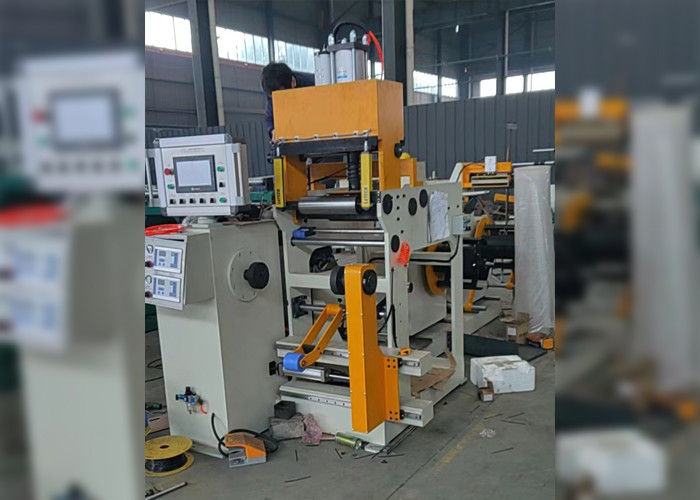

Fig 2: Transformer foil winding machine BRJ300-2's welding effect
