Automatic Wire Winder HV Transformer Coil Winding Machine

1 set
MOQ
negotiable
Price
Automatic Wire Winder HV Transformer Coil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Transformer Coil Winding Machine
Function: Winding Transformer Coil
Max Winding Width: 600mm
Center Height: 900mm
Winding Power: 4kw
Winding Speed: 0 ~ 200rpm
Wire Guide: Servo Driven
Warranty: 12 Months
Highlight:

Automatic Transformer Coil Winding Machine

,

HV Transformer Coil Winder

,

HV Transformer Coil Winding Machine

Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: ZPX600
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description

Automatic Wire Winder HV Transformer Coil Winding Machine




Introduction of transformer coil winding machine ZPX600



Transformer coil winding machine ZPX600 is a professional conductor wire winder. This kind of transformer coil winding machine is mainly used to wind copper or aluminium wire coil and this kind of coils can be used in transformers or other similar products. The transformer coil winding machine is driven by a 4kw winding motor, which guarantees the coil winding machine have an enough torque to wind different size of wires. The transformer coil winding machines wire guide is driven by a servo motor, which guarantees the precision of the wire guide moving. The transformer coil winding machine is provided with PLC and HMI, which makes the transformer coil winding machine be operated easily.




Main features of transformer coil winding machine ZPX600

·  programmable

·  easy operation

·  slow starting

·  smooth running

·  strong pulling force

·  high reliability

·  high accuracy

·  full functions



Main parameters of transformer coil winding machine ZPX600



The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.

Center Height:

900mm

Winding Shaft Size:

40x40mm

Max Winding Width:

600mm

Winding Motor Power:

4kw

Winding Speed:

0 ~ 200rpm

Speed Regulation:

stepless speed regulation

Round Wire:

Φ0.3 ~ Φ3.0mm

Max. Rotating Diameter:

Φ600mm

Max. Loading Capacity:

500kg

Counting Mode:

5-digit counting

Counting Range:

0 - 9999.9


Automatic Wire Winder HV Transformer Coil Winding Machine 0

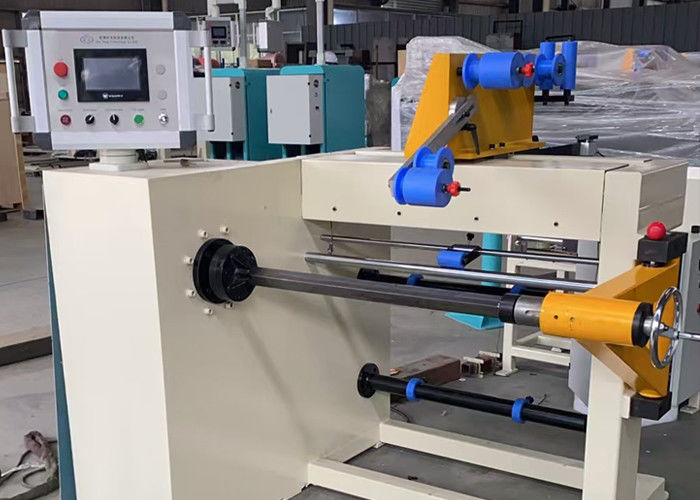

Fig 1: Transformer coil winding machine ZPX600's full view


Automatic Wire Winder HV Transformer Coil Winding Machine 1

Fig 2: Transformer coil winding machine ZPX600's winding guide


Automatic Wire Winder HV Transformer Coil Winding Machine 2Automatic Wire Winder HV Transformer Coil Winding Machine 3Automatic Wire Winder HV Transformer Coil Winding Machine 4Automatic Wire Winder HV Transformer Coil Winding Machine 5
