TIG Welding Automatic Copper Foil Winding Machine For Smooth Fast Production
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Copper Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Al Foil Thickness: | 0.3 ~ 3.0mm | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Welding Mode: | TIG | Winding Speed: | 0 ~ 26 |
| Color: | Optional | Foil Decoiler: | 1 Set |
| Highlight: | TIG Welding Copper Foil Winding Machine,Fast Copper Foil Winding Machine,Smooth Copper Foil Winding Machine |
||
Máquina de bobinado de láminas Automatic Copper Foil Winding Machine
Description of copper foil winding machine BRJ700
Copper foil winding machine BRJ700 is a professional conductor foil film winder equipment. The foil winding machine is mainly used to wind copper foil or aluminium foil to make foil coils and this kind of wound foil coils can be used in cast resin transformers or other similar products. The copper foil winding machine is provided with one set of foil decoiler and two insulation decoilers, which makes the copper foil winding machine wind one layer of copper foil or aluminium foil and one or two layers of insulation paper. With a set of TIG welding unit, the copper foil winding machine can weld foil with bus bar together. The copper foil winding machine is also provided with PLC and HMI. The copper foil winding machine features slow starting, smooth running and easy operation, etc.
Quick detail of copper foil winding machine BRJ700
· Winding foil with maximum width 700mm
· Winding both copper foil and aluminium foil
· Conductor foil with ID 500mm and OD 1000mm maximum
· TIG welding
· Pressing roller
· Customized color
Technical Parameters of copper foil winding machine BRJ700
Typical standard specifications of copper foil winding machine BRJ700 are shown below and the copper foil winding machine can also be manufactured as requested.
|
Foil width: |
200 ~ 700mm |
|
Max. Finished Coil OD: |
Ø800mm |
|
Finished Coil Shape: |
oval, circle and rectangular |
|
Conductor Foil Material OD.: |
Ø1,000mm, maximum |
|
Conductor Foil Material ID.: |
Ø500mm |
|
Foil Decoiler Number: |
1 set |
|
Welding Mode: |
TIG |
|
Insulation Decoiler Number: |
2 sets |
|
Insulation Decoiler Shaft: |
Expandable (pneumatic open/close action) |
|
End-fill Strip Feeder: |
6 pcs |
|
Edge Alignment System: |
Photoelectric sensing |
|
Control System: |
PLC |
|
User Interface: |
10inch (254mm) touch screen |
|
Counting Range: |
0 ~ 9999.9 |

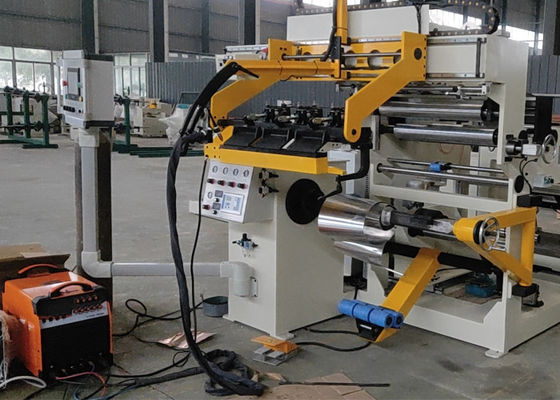

Fig 1: Copper foil winding machine BRJ700's front view
Fig 2: Copper foil winding machine BRJ700's back view
