Transformer Coiling Equipment Automatic Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Automatic Coil Winding Machine | Function: | Making Coil |
|---|---|---|---|
| Rotatin Power: | 4kw | Rotating Speed: | 0 ~ 200rpm |
| Conductor: | Cu Wire Or Al Wire | Wire Type: | Flat Wire Or Round Wire |
| Control System: | PLC | Warranty Period: | 12 Months |
| Highlight: | Automatic Coil Winding Machine,Transformer Coiling Equipment,Transformer Coiling Equipment Automatic |
||
Transformer Coiling Equipment Automatic Coil Winding Machine
Introduction of automatic coil winding machine ZPX600
Automatic coil winding machine ZPX600 is a special conductor wire coiling machine. The coil winding machine is mainly used to wind wire to make transformer coils and other similar products. The coil winding machine can wind both round wire and flat wire. The coil winding machine is provided with PLC, which makes the coil winding machine be with high automation. After entering the relevant parameters, the coil winding machine can wind wire coil automatically. With HMI, the coil winding machine features easy operation and so on.
Main features of automatic coil winding machine ZPX600
· slow starting
· smooth running
· strong pulling force
· high reliability
· high accuracy
· full function
Main parameters of automatic coil winding machine ZPX600
The typical stand specifications of automatic coil winding machine ZPX600 is as following and the coil winding machine can also be manufactured as requested.
|
Center height: |
900mm |
|
Square Shaft Size: |
40x40mm |
|
Max Winding Width: |
600mm |
|
Servo Motor Power: |
0.75kw |
|
Winding Speed: |
0 ~ 200 rpm |
|
Speed Regulation: |
stepless speed regulation |
|
Max. Flat Wire Size: |
5X12mm |
|
Round Wire: |
Ø0.3mm ~ Ø5.0mm |
|
Max Finished Coil OD.: |
Ø400mm |
|
Max Capacity: |
200kg |
|
Counter: |
5-digit counting |
|
Counting Range: |
0 ~ 9999.9 |

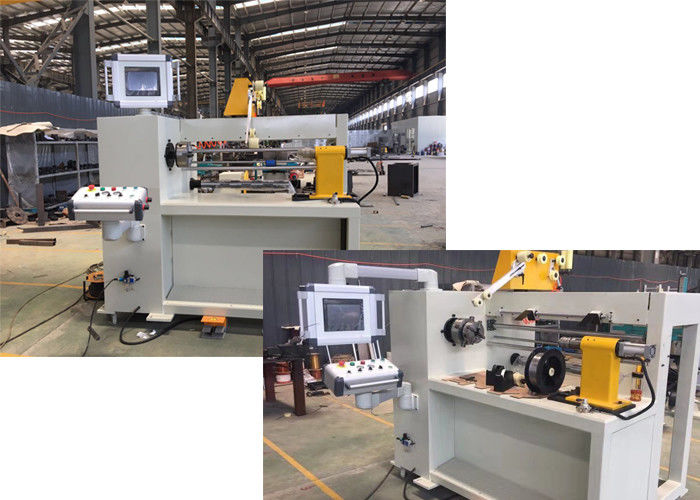

Fig 1: Automatic coil winding machine ZPX600's front view
Fig 2: Automatic coil winding machine ZPX600's wire guide
