Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Coil Winding Machine | Counter: | Digital |
|---|---|---|---|
| Function: | Winding Wire Coil | Motor Power: | 7.5KW |
| Operation Mode: | Semi Automatic | Power Supply: | As Requested |
| Rotating Speed: | 0 ~ 40rpm | Warranty Period: | 12 Months |
| Highlight: | Semi Automatic Copper Coiling Winder,Transformer Coil Winding Machine,Coiling Winder Semi Automatic |
||
Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-3T
Transformer coil winding machine GDY-3T is a professional coiling winder equipment. The transformer coil winding machine is a kind of semi automatic winder and the coil winding machine is provided with a counter to count the number of turns when the coil winding machine is winding wire. The foot pedal of the coil winding machine can be used to stop and start running the transformer coil winding machine and switch the rotating direction. The transformer coil winding machine features slow starting, smooth running, big torque, easy operation, etc.
Main components of transformer coil winding machine GDY-3T
o Main frame
o Square shaft
o Split tailstock
o Foot pedal
o Counter
o Control board
Main parameters of transformer coil winding machine GDY-3T
Typical standard specifications of transformer coil winding machine GDY-3T are shown below and the coil winding machine can also be manufactured as requested.
|
Central Height: |
1000mm |
|
Distance Between Ends: |
2000mm |
|
Square Shaft Size: |
50x50mm |
|
Winding Speed: |
0 ~ 40rpm |
|
Maximum Transverse Length: |
1800mm |
|
Counting Range: |
0 ~ 9999.9 |
|
Maximum Loading Capacity: |
3000KG |
|
Motor Power: |
7.5KW |
|
Power Supply: |
3-phase 380V 50Hz |
|
Machine Dimension(LxWxH): |
3600x900x1400mm |

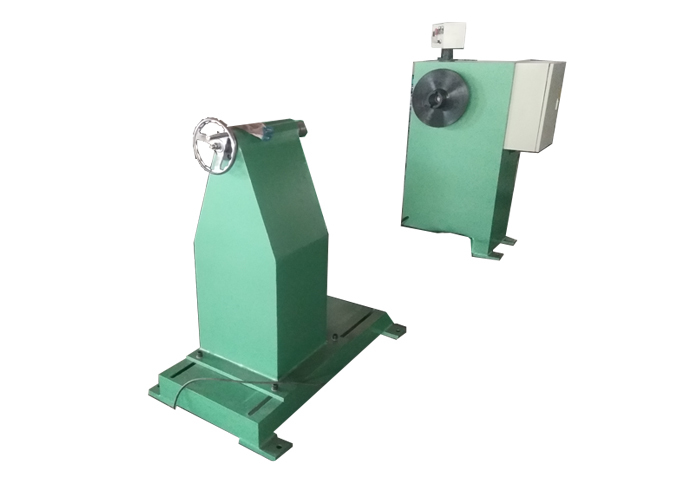

Fig 1: Transformer coil winding machine GDY-3T's full view
Fig 2: Transformer coil winding machine GDY-3T's control panel
