HV Winder Automatic Transformer Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Coil Winding Machine | Winding Width: | 1000mm, Maximum |
|---|---|---|---|
| Rotating Power: | 5.5kw | Rotating Speed: | 0 ~ 160rpm |
| Wire Guide: | Driven By Servo Motor | Warranty Period: | 12 Months |
| Power Supply: | AC 3-phase 380V 50Hz | Wire Diameter: | 0.3 ~ 5.0mm |
| Highlight: | Automatic HV Winder,HV Winder Coil Winding Machine,Automatic Transformer Coil Winding Machine |
||
HV Winder Automatic Transformer Coil Winding Machine
Description of automatic coil winding machine ZPX1000
Automatic coil winding machine ZPX1000 is a professional coiling winder equipment. The automatic coil winding machine is mainly used to wind copper wire or aluminium wire to make transformer coils or other similar products. The automatic coil winding machine is provided with a wire guide, and the wire guide is driven by a servo motor. With the wire guide, the coil winding machine can lay the wire automatically when the coil winding machine is winding a wire. The coil winding machine is also provided with HMI and PLC. The automatic coil winding machine features high automation and easy operation.
Features of automatic coil winding machine ZPX1000
· slow starting
· smooth running
· accurate control
· big torque
· easy operation
· 12 months warranty
Main parameters of automatic coil winding machine ZPX1000
The following is the standard specifications of the automatic coil winding machine ZPX1000 and the automatic coil winding machine can also be manufactured as requested.
|
Winding Shaft Center Height: |
900mm |
|
Winding Shaft Size: |
40x40x1300mm |
|
Maximum Winding Width: |
1000mm |
|
Winding Power: |
5.5kw |
|
Rotating Speed: |
0 ~ 160 rpm |
|
Max. Flat Wire Size: |
5mm x 12mm |
|
Round Wire Diameter: |
Φ0.3mm ~ Φ5.0mm |
|
Maximum wound Coil OD.: |
Φ800mm |
|
Maximum Capacity: |
800kg |
|
Minimum Spread Pitch: |
0.01mm |
|
Counting Mode: |
5-digit counting |
|
Counting Range: |
0 ~ 9999.9 |

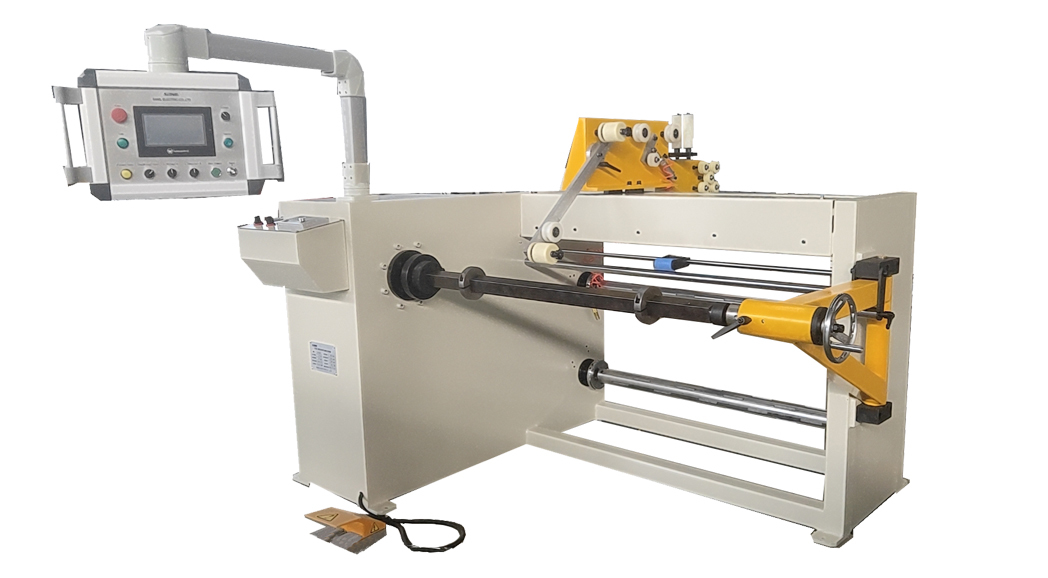

Fig 1: Automatic coil winding machine ZPX1000's front view
Fig 2: Automatic coil winding machine ZPX1000's wire guide
