Description of copper foil winding machine BRJ800-2

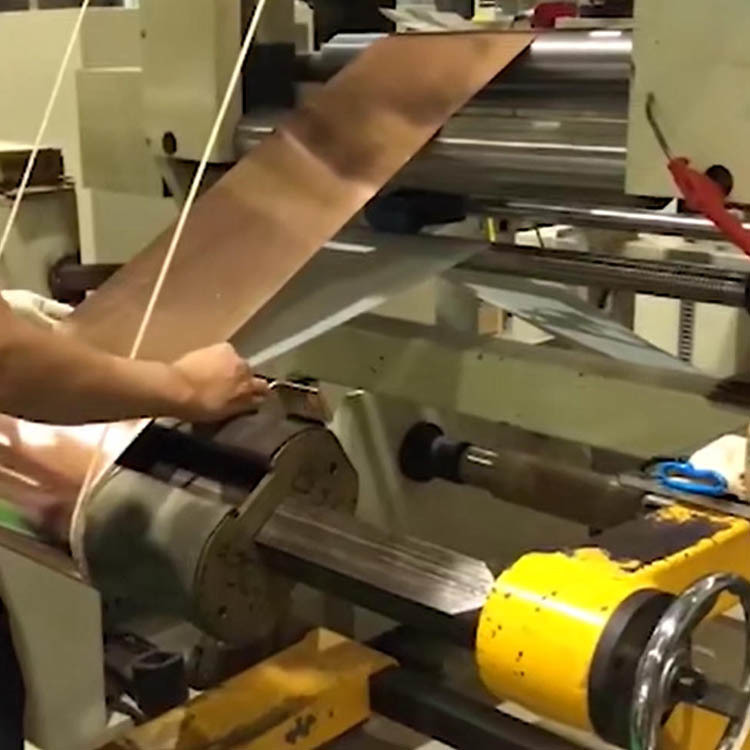

Copper foil winding machine BRJ800-2 is a special winder equipment, which is mainly used to wind foil conductor to make transformer coils and other similar products. This model of foil winding machine can wind foil conductor with maximum width 800mm. The foil winding machine is provided with two foil decoilers and two insulation decoilers. With TIG welding unit, the copper foil winding machine can weld foil and bus bar together. The foil winding machine’s control system is base on PLC. With HMI, the copper foil winding machine can be operated easily.

Quick details of copper foil winding machine BRJ800-2

      · Maximum foil width 800mm
· Winding copper or aluminium foil
· Foil conductor ID 500mm, OD 1000mm
· TIG welding
· Pressing roller
· Machine’s color can be customized

Technical parameters of copper foil winding machine BRJ800-2

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below and the machine can also be manufactured as requested.

Fig 1: Copper foil winding machine BRJ800-2's front view


Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
