Automatic Wire Coiling Machine Transformer Coil Winding Machine

1 set
MOQ
USD8000-15000
Price
Automatic Wire Coiling Machine Transformer Coil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Ame: Coil Winding Machine
Usage: Making Wire Coil
Motor Power: 4kw
Rotating Speed: 0 ~ 200rpm
Wire Material: Cu Wire Or Al Wire
Wire Type: Flat Or Round Wire
Color: As Request
Warranty: 12 Months
Highlight:

600mm Max Winding Width Automatic Coil Winding Machine

,

5X12mm Flat Wire Transformer Coil Winding Machine

,

Ø0.3 ~ 5.0mm Round Wire Wire Coiling Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX600
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description
Automatic Wire Coiling Machine Transformer Coil Winding Machine
Introduction of Automatic Coil Winding Machine ZPX600
The ZPX600 is a professional wire coil winder designed for transformer coils and similar applications. This versatile machine handles both copper and aluminum wire with precision. Its servo motor-driven wire guide ensures accurate movement and automatic wire laying during operation. Equipped with PLC and HMI controls, the ZPX600 offers high automation and user-friendly operation, featuring slow starting and smooth running capabilities.
Main Features
  • Slow starting mechanism
  • Smooth running operation
  • Strong pulling force
  • High reliability and durability
  • Precision accuracy
  • Full-featured functionality
Technical Specifications
Parameter Value
Center Height 900mm
Square Shaft Size 40x40x900mm
Winding Width 600mm max.
Servo Motor Power 0.75kw
Winding Speed 0 ~ 200 rpm
Max. Flat Wire Size 5X12mm
Round Wire Capacity Ø0.3 ~ 5.0mm
Finished Coil OD. Ø600mm max
Counting Mode 5-digit counting
Counting Turn Range 0 - 9999.9
Automatic Wire Coiling Machine Transformer Coil Winding Machine 0

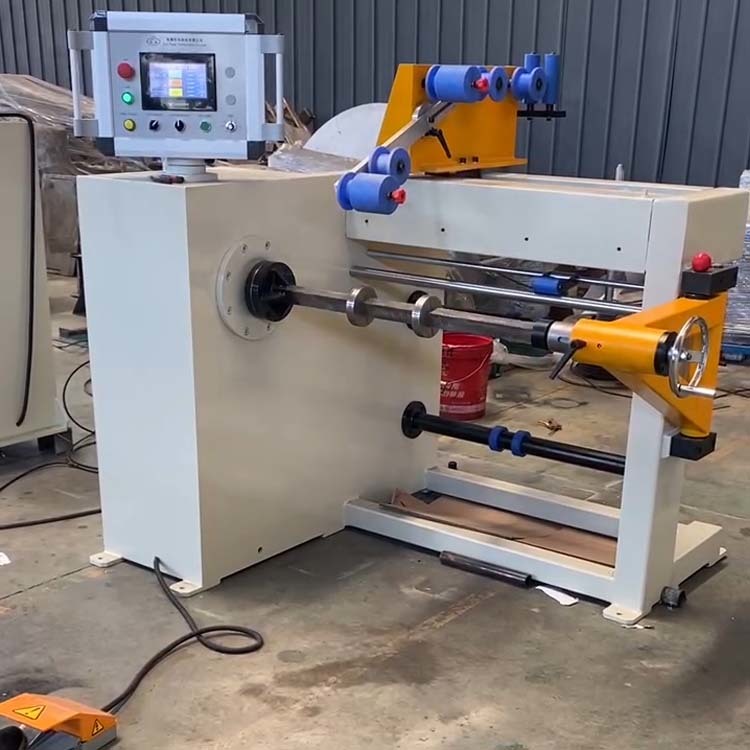

Fig 1: Automatic coil winding machine ZPX600's front view
Automatic Wire Coiling Machine Transformer Coil Winding Machine 1
Fig 2: Automatic coil winding machine ZPX600's wire guide
Automatic Wire Coiling Machine Transformer Coil Winding Machine 2
Automatic Wire Coiling Machine Transformer Coil Winding Machine 3
Automatic Wire Coiling Machine Transformer Coil Winding Machine 4
Automatic Wire Coiling Machine Transformer Coil Winding Machine 5
Automatic Wire Coiling Machine Transformer Coil Winding Machine 6
Automatic Wire Coiling Machine Transformer Coil Winding Machine 7
Automatic Wire Coiling Machine Transformer Coil Winding Machine 8
Automatic Wire Coiling Machine Transformer Coil Winding Machine 9
Automatic Wire Coiling Machine Transformer Coil Winding Machine 10
