Transformer Coiling Machine Automatic Coil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Coil Winding Machine
Rotating Power: 4kw
Rotating Speed: 0 ~ 160rpm
Conductor Wire: Flat Wire Or Round Wire
Control System: PLC
Display Mode: Touch Screen
Tension Control: Pneumatic
Winding Direction: Forward/Reverse
Wire Diameter: 0.3~ 5.0mm
Machine Color: As Requested
Highlight:

automatic transformer coiling machine

,

coil winding machine with warranty

,

automatic coil winding machine for transformers
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX800
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description
Transformer Coiling Machine Automatic Coil Winding Machine
Automatic Coil Winding Machine ZPX800 is a specialized wire coiling equipment designed for manufacturing wire coils used in transformers and other similar products. This kind of coil winding  machine can wind both copper wire and aluminum wire, featuring a servo-driven wire guide for automated wire laying. Equipped with PLC and HMI controls, the coil winding machine features slow starting, smooth operation, high torque, and user-friendly functionality.
Key Features
• Processes both copper wire and aluminum wire
• Servo-driven automatic wire guide system
• PLC and HMI
• Slow start function for precise operation
• High torque performance
• User-friendly operation and programming
Technical Specifications
Parameter Specification
Center Height 900mm
Winding Shaft Size 40x40mm
Maximum Winding Width 800mm
Winding Motor 4kw
Winding Speed 0 ~ 160 rpm
Speed Regulation Stepless
Max. Flat Wire Size 5X12mm
Round Wire Diameter Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD. Ø800mm
Maximum Capacity 700kg
Counting Mode 5-digit counting
Counting Range 0 ~ 9999.9
Product Images
Transformer Coiling Machine Automatic Coil Winding Machine 0

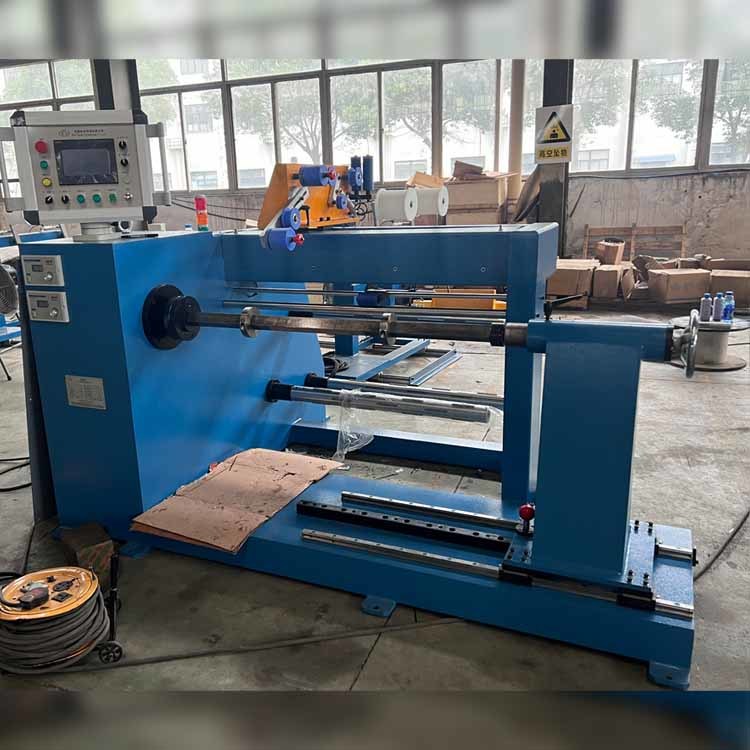

Fig 1: Automatic coil winding machine ZPX800's front view
Transformer Coiling Machine Automatic Coil Winding Machine 1

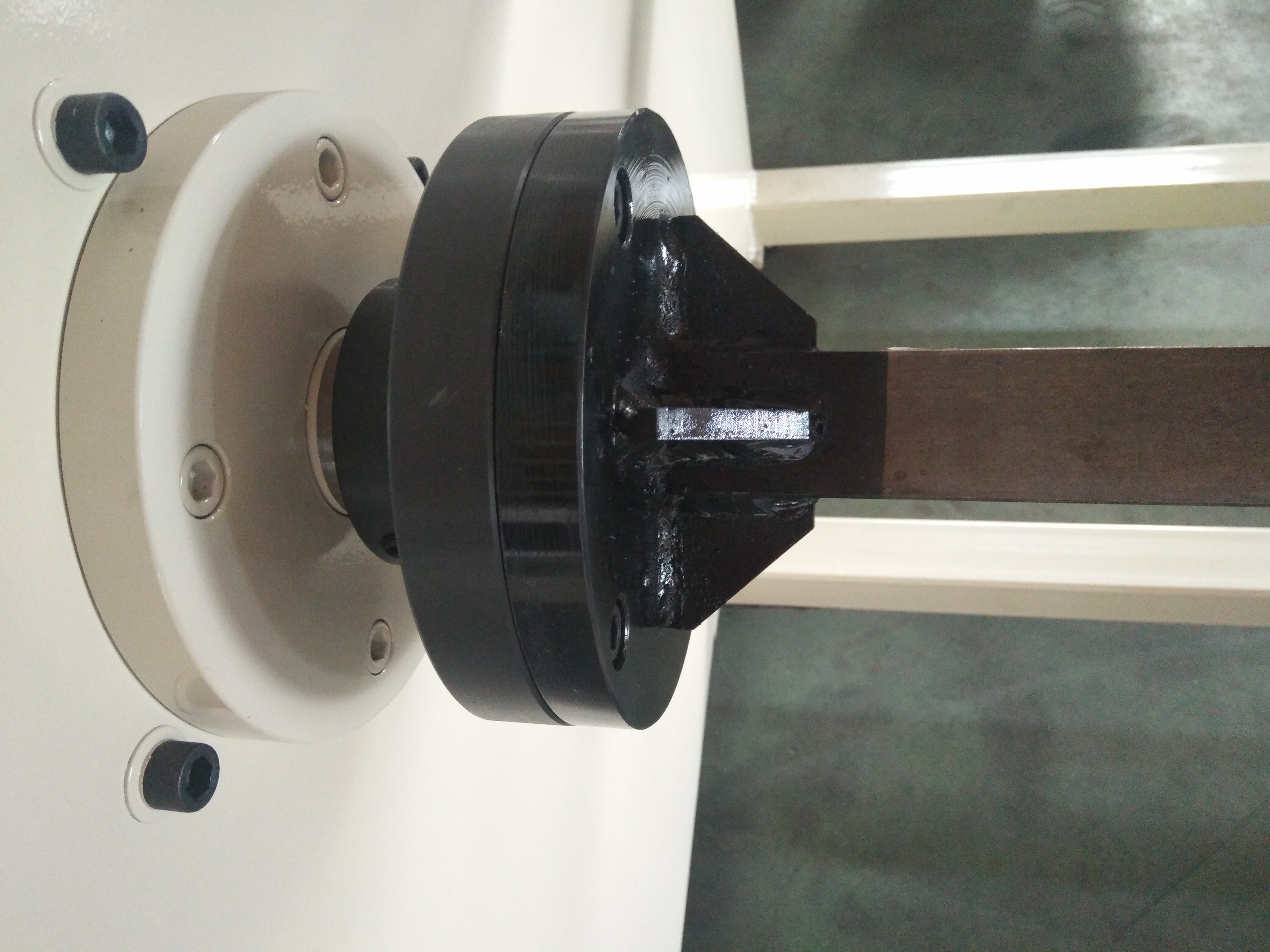

Fig 2: Automatic coil winding machine ZPX800's wire guide
