PLC Controlled Copper Foil Winding Machine with 5.5kW Motor for 0.2-3.0mm Foil Thickness

1 set
MOQ
negotiable
Price
PLC Controlled Copper Foil Winding Machine with 5.5kW Motor for 0.2-3.0mm Foil Thickness
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Foil Winding Machine
Usage: Winding Foil Conductor
Foil Thickness: 0.2 ~ 3.0mm
Foil Decoiler: 1 Set
Insulation Decoiler: 1 Set
Winding Motor: 5.5kw
Machine Color: As Requested
Warrangy: 12 Months
Highlight:

PLC Control System Copper Foil Winding Machine

,

5.5kW Winding Motor Foil Winding Machine

,

0.2-3.0mm Foil Thickness Transformer Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ200
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: T/T,L/C
Product Description

Copper Foil Winding Machine optimized for aluminium foil and copper foil conductor winding

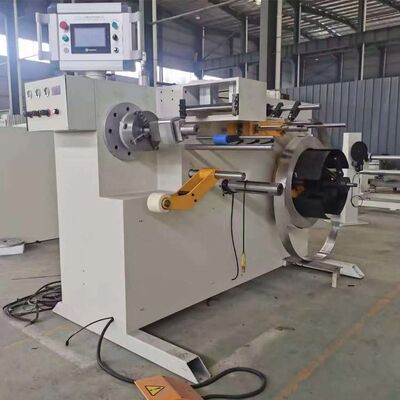

Description of copper foil winding machine JJ-BRJ200



Copper foil winding machine JJ-BRJ200 is a kind of simply and practical professional foil winder equipment. This kind of foil winding machine is provided with one foil decoiler for wind one layer of copper foil or aluminium foil. With PLC control system and HMI, the foil winding machine features slow start, smooth running, easy operation and so on.




Main components of copper foil winding machine JJ-BRJ200



1. Main frame

2. Foil conductor decoiler

3. Roller

4. Winding unit

5. Insulation decoiler

6. Photoelectric sensor

7. Pneumatic unit



Technical parameters of copper foil winding machine JJ-BRJ200



Typical standard specifications of copper foil winding machine JJ-BRJ200 are shown below and the copper foil winding machine can also be manufactured as requested.



Maximum foil width:

200mm

Finished Coil OD. ( excl. Bus bar ):

Ø 400mm

Finished Coil OD. ( incl. Bus bar ):

Ø 500mm

Finished coil Shape:

Round, rectangle, and oval

Conductor Material:

Copper or aluminum foil

Cu Foil Thickness:

0.2 ~ 2.0mm

Al Foil Thickness:

0.3 ~ 3.0mm

Foil Material ID.:

Ø 500mm

Foil Material OD.:

Ø 1000mm, Maximum

Foil Decoiler Number:

1 pcs

Foil Decoiler Length:

250mm

Foil Decoiler Expanding Range:

Ø 480 ~ 520mm

Maximum Coil Weight:

750kg

Rectifying Mode:

Photoelectric sensing

Insulation Paper Decoiler Number:

1 set

Insulation Paper Coil OD.:

Ø 400mm, maximum

Insulation Paper Coil ID.:

Ø 76mm

Insulation Decoiler Width

250mm

Insulation Paper Decoiler Shaft:

Expandable (pneumatic open/close action)

Winding Speed:

0 ~ 60rpm

Winding Power of Motor:

5.5kw

Control System:

PLC

Operation Interface:

Touch screen
