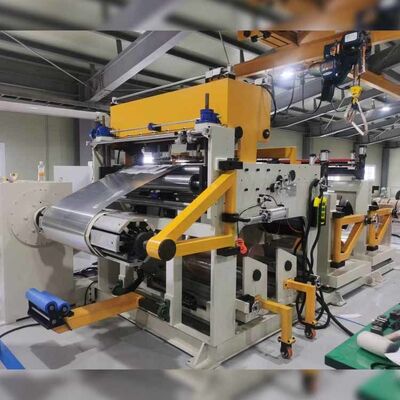

Transformer Foil Winding Machine with 16RPM Winding Speed 22KW Winding Motor and 1000mm Foil Conductor OD

Product Description:

The Transform Foil Wind Machine BRJ1200-2 is an advanced and highly efficient piece of equipment designed specifically for the precise winding of transformer foil coils. Engineered with cutting-edge technology, this Transformer Foil Wind Device ensures superior performance and reliability, making it an essential tool for manufacturers in the transformer industry. Its robust design and versatile features cater to a wide range of transformer foil winding requirements, delivering consistent and high-quality results every time.

One of the standout features of the Transformer Foil Winding Machine is its excellent control over winding speed. With an adjustable winding speed of up to 16rpm, the machine offers great flexibility to accommodate different production needs and foil specifications. This high-speed capability significantly enhances productivity while maintaining the precision necessary for transformer foil winding, ensuring optimal foil tension and alignment throughout the process.

The machine is equipped with a powerful winding motor rated at 22KW, which provides the necessary torque and power to handle demanding winding tasks efficiently. This motor power enables the Transformer Foil Wind Machine to operate smoothly even under continuous heavy-duty conditions, reducing downtime and increasing overall throughput. The motor’s reliable performance also contributes to the longevity and durability of the device.

In terms of material handling, the Transformer Foil Wind Device is designed to accommodate foil conductors with an outer diameter (OD) of up to 1000 mm. This large capacity allows it to work with a wide variety of foil sizes, making it suitable for different transformer types and sizes. Additionally, the decoiler diameter range is from 480 to 520 mm, a foil material reel ID 500mm can be used for this machine.

Another significant attribute of this Transformer Foil Winding Machine is its welder speed, which is set at 0.8 meters per minute. This precise welding speed ensures accurate and secure joining of foil ends, which is critical for maintaining the electrical integrity and mechanical strength of the transformer coils. The consistent welder speed also helps in reducing defects and improving the overall quality of the finished product.

The design of the Transform Foil Wind Machine emphasizes ease of use and operator safety. It incorporates user-friendly controls and an intuitive interface, allowing operators to adjust parameters such as winding speed and tension effortlessly. The foil winding machine also includes safety features to protect both the operator and the equipment during operation, making it a reliable choice for any transformer manufacturing facility.

Moreover, the Transformer Foil Wind Device is built with high-quality components and materials, ensuring excellent durability and resistance to wear and tear. This construction quality means less maintenance is required, reducing operational costs and downtime. The machine’s sturdy framework and precision engineering contribute to stable and vibration-free operation, which is essential for producing uniform and defect-free transformer foils.

In summary, the Transform Foil Wind Machine stands out as a versatile, powerful, and precise solution for transformer foil winding needs. Its combination of adjustable winding speeds up to 16rpm, a strong 22 kW winding motor, capability to handle large foil conductor outer diameters of up to 1000 mm, and an optimal decoiler diameter range of 480 to 520 mm makes it be suitable for the foil material reel with inner diameter 500mm. Coupled with its consistent welder speed of 0.8 m/min, this Transformer Foil Wind Device ensures high-quality, efficient, and reliable foil winding performance, making it an invaluable asset in the transformer production process.

Features:

• Product Name: Transformer Foil Winding Machine
• Decoiler Diameter Range: 480 ~ 520mm
• Copper Foil Width Compatibility: 200-1200mm
• Foil Conductor Inner Diameter: 500mm
• Primary Application: Transformer Manufacturing
• Warranty Period: 12 Months

Technical Parameters:

Applications:

Our Transformer Foil Winding Machine, model BRJ1200-2, is an advanced and reliable solution designed specifically for the transformer manufacturing industry. This Transformer Foil Winding Machine is engineered to handle conductor materials such as copper or aluminium foil, accommodating foil materials of the same types. With a foil conductor outer diameter (OD) capacity of up to 1000mm, it efficiently supports a wide range of transformer foil winding requirements, ensuring precision and consistency in every winding process.

Ideal for various transformer manufacturing applications, the Transformer Foil Wind Machine is perfect for producing high-quality transformer coils with enhanced electrical performance. Its versatility allows manufacturers to work with different conductor foil materials, making it suitable for both copper and aluminium foil winding tasks. This adaptability makes it indispensable in facilities focusing on diverse transformer specifications and production scales.

The Transformer Foil Winding Machine BRJ1200-2 is also well-suited for industries requiring customized and precise foil winding solutions. Its optional machine color feature offers flexibility for clients looking to integrate the equipment seamlessly into their existing production lines or maintain specific aesthetic standards. The machine’s robust design, combined with seaworth packing for secure shipment, ensures safe delivery and long-lasting operational stability.

With a minimum order quantity of just 1 set, negotiable pricing, and a supply ability of 100 sets per year, WE provides a reliable and scalable solution for manufacturers looking to enhance their transformer production capabilities. The delivery time is competitively set at 45 days, with payment terms via T/T, facilitating smooth procurement processes for businesses worldwide.

In summary, our Transformer Foil Winding Machine BRJ1200-2 is an essential piece of equipment for transformer manufacturers aiming to improve production efficiency, product quality, and operational flexibility. Its ability to handle both copper and aluminium conductors and foils, combined with its customizable features and reliable supply chain, makes it a top choice for transformer foil winding applications and scenarios across the industry.

Customization:

Introducing the STT brand Transformer Foil Winding Machine, model number BRJ1200-2, a high-performance Transform Foil Wind Machine designed for precision and efficiency in foil winding applications. This Transform Foil Wind Machine supports a winding motor power of 22kw and operates on a power supply of 3-phae 380V, 50Hz(defualt), ensuring versatile compatibility with different power standards.

Our product customization services allow you to specify the foil material, choosing between copper or aluminium, to meet your specific project requirements. The machine color is also optional, giving you the flexibility to select a finish that best suits your workspace or brand identity. The foil conductor outer diameter (OD) capacity is 1000mm, making the BRJ1200-2 suitable for a wide range of transformer foil winding tasks. We offer a minimum order quantity of just 1 set, with pricing negotiable to accommodate your budget and order scale.

Packaging is handled with care using seaworth packing to ensure the machine arrives safely at your location. Delivery time is typically 45 days, supported by a supply ability of 100 sets per year, allowing for timely fulfillment of both small and large orders.

Payment terms are flexible and primarily conducted via T/T, streamlining the purchasing process. Choose STT’s Transform Foil Wind Machine for reliable, customizable foil winding solutions backed by professional service and support.

Support and Services:

Our Transformer Foil Winding Machine is supported by a dedicated technical support team committed to ensuring optimal performance and reliability. We offer comprehensive installation guidance, operator training, and routine maintenance services to maximize your machine's efficiency and lifespan.

Our experienced engineers provide troubleshooting assistance and remote diagnostics to quickly resolve any operational issues. Additionally, we supply genuine spare parts and offer upgrade options to keep your equipment up-to-date with the latest technology advancements. We also provide customized service contracts tailored to your specific production needs, ensuring minimal downtime and continuous support throughout the machine’s lifecycle. Our goal is to deliver exceptional service that enhances your productivity and investment value.

Packing and Shipping:

Product Packaging:

The Transformer Foil Winding Machine is carefully packaged to ensure safe delivery and protection during transit. The machine is first wrapped with stretch plastic film to prevent scratches and dust accumulation. All fragile components and accessories are separately cushioned and packed within the main packaging.

Shipping:

We offer reliable shipping options to deliver the Transformer Foil Winding Machine to your location efficiently and safely. The machine can be shipped via sea freight for cost-effective bulk orders. Our logistics partners ensure timely pickup and delivery, with tracking available throughout the shipping process. Prior to shipment, a thorough inspection and testing are conducted to guarantee the machine is in optimal condition. Customs documentation and export compliance are handled professionally to avoid any delays.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is manufactured by STT, and the model number is BRJ1200-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity for the STT BRJ1200-2 Transformer Foil Winding Machine is 1 set.

Q3: What are the packaging details for the Transformer Foil Winding Machine?

A3: The machine is packaged using seaworthy packing to ensure safe delivery.

Q4: How long does it take to deliver the Transformer Foil Winding Machine after placing an order?

A4: The delivery time for foil winding machine BRJ1200-2 model is approximately 45 days after order confirmation.

Q5: What payment terms are accepted for purchasing this machine?

A5: Payment for the Transformer Foil Winding Machine is accepted via T/T (Telegraphic Transfer).

Q6: What is the supply capacity for the Transformer Foil Winding Machine?

A6: STT can supply up to 100 sets of the BRJ1200-2 Transformer Foil Winding Machine per year.
