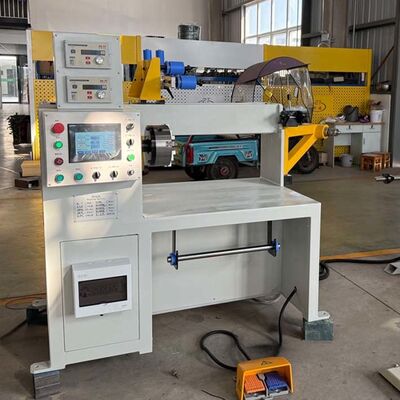

Transformer Coil Winding Machine with 0.75KW Servo Motor and 3KW Winding Motor for Copper and Aluminum Wire

Transformer Winding Machine Featuring Servo Motor 0.75kw Ideal For Electrical Coil Production

Product Description:

The Transformer Coil Winding Machine ZPX500 is a state-of-the-art piece of equipment designed to meet the demanding needs of modern coil manufacturing industries. Engineered with precision and reliability in mind, this machine is an essential tool for producing high-quality transformer coils with exceptional consistency and efficiency. Whether you are working with copper or aluminium wire materials, this coil winding machine provides the versatility and performance required to handle various winding tasks with ease.

At the heart of this Transformer Coil Winding Machine lies a powerful 3KW motor that ensures robust and stable operation throughout the winding process. This motor delivers the necessary torque and speed control to achieve precise coil winding, which is critical for producing coils that meet stringent electrical and mechanical specifications. The machine’s winding motor, rated at 3KW, is to provide optimal winding performance, ensuring that each coil is wound accurately and uniformly.

One of the standout features of this machine is its compatibility with both copper and aluminium wire materials. Copper wires are well-known for their excellent electrical conductivity, while aluminium wires offer a lightweight and cost-effective alternative. This coil winding machine is designed to handle either material efficiently, allowing manufacturers the flexibility to choose the wire that best suits their specific application requirements. This capability makes the Transformer Coil Winding Machine an invaluable asset in industries where different wire types are used interchangeably.

Incorporating advanced CNC technology, this CNC Coil Winding Machine allows for programmable and automated winding processes, reducing manual intervention and minimizing the risk of human error. The CNC control system provides precise control over winding parameters such as tension, speed, and the number of turns, enabling the production of complex coil geometries with high repeatability. This level of automation not only improves productivity but also enhances the overall quality of the coils produced.

Durability and operational reliability are further assured by the inclusion of a comprehensive 12-month warranty. This warranty covers manufacturing defects and ensures that customers receive prompt support and service, minimizing downtime and maintaining production schedules. The machine’s design emphasizes ease of maintenance and long service life, making it a sound investment for businesses looking to enhance their coil winding capabilities.

In summary, the Transformer Coil Winding Machine is a high-performance, versatile, and reliable coil winding solution. With its 0.75KW servo motor power, 3KW winding motor, compatibility with copper and aluminium wires, and advanced CNC control, it stands out as a premier CNC Coil Winding Machine in the industry. Whether you require a Coil Winder Machine for transformer coils or a Wire Coil Winding Machine for other applications, this equipment offers the precision, efficiency, and durability needed to meet your production demands.

Features:

• Product Name: Transformer Coil Winding Machine
• Shaft Size: 40x40mm
• Winding Width: Up to 500mm
• Winding Motor Power: 3kw
• Material Compatibility: Copper and aluminum wires
• Suitable for Transformer Coil Winding Machine applications
• Efficient Coil Winding Machine design
• Ideal Transformer Coil Winding Machine for precise coil production

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under OEM or Custom Brand, is an essential piece of Electrical Coil Winding Equipment designed to meet the diverse needs of coil manufacturing industries. Originating from China, this CNC Coil Winding Machine is certified with CE, ensuring high quality and reliable performance. With a minimum order quantity of just 1 set, it provides flexibility for both small-scale operations and large production lines.

This advanced Transformer Winding Machine is perfectly suited for occasions where precision and efficiency are paramount. It is widely used in factories producing transformers, and other electromagnetic components. The machine’s compatibility with both copper and aluminum wires, thanks to its robust winding motor of 3KW and a servo motor of 0.75KW, allows it to handle various wire materials with ease. Its winding width up to 500mm makes it ideal for producing coils of different sizes and specifications.

In terms of application scenarios, this CNC Coil Winding Machine excels in environments that demand automation and accuracy. Electrical manufacturers can employ this equipment for mass production, ensuring consistent coil quality and reducing manual labor. Its adaptability to different wire materials and coil dimensions makes it suitable for specialized coil winding tasks, including prototypes and custom orders. The machine’s precision controls and automated winding process minimize errors and enhance productivity.

When it comes to logistics and delivery, the Transformer Coil Winding Machine is packaged securely in export wooden cases to ensure safe transportation. Standard models are delivered within 30 to 35 days, while customized versions require 35 to 40 days, reflecting the machine’s tailored manufacturing process. Payment options such as T/T provide convenient and secure transactions, supporting customer needs worldwide.

With a supply ability of 100 sets per year, this Transformer Winding Machine is a reliable choice for businesses seeking to upgrade their electrical coil winding capabilities. Whether for new production lines or replacement equipment, it offers a cost-effective solution with prices ranging from USD 8,000 to 15,000 per set. This machine stands out as a versatile, high-performance Electrical Coil Winding Equipment essential for modern coil manufacturing operations.

Customization:

Our Transformer Coil Winding Machine offers exceptional customization services to meet your specific needs. As an OEM / Custom Brand manufacturer based in China, we ensure high-quality products certified with CE standard. We cater to orders starting from a minimum order quantity of just 1 set, priced between USD 8,000 and 15,000 per set.

The machine features a shaft height of 900mm and is compatible with both copper and aluminum wires, making it ideal for winding copper or aluminium wire coils. We package each unit securely in export wooden cases to ensure safe delivery. The standard delivery time is 30–35 days for standard models and 35–40 days for customized versions. Payment terms include T/T to offer you flexible and convenient options. With a supply ability of 100 sets per year, we can meet both small and large scale demands efficiently.

Choose our Transformer Coil Winding Machine for reliable, customizable solutions tailored to your coil winding requirements, backed by professional support and quality assurance.

Support and Services:

Our Transformer Coil Winding Machine is designed to deliver precision, efficiency, and reliability for all your coil winding needs. To ensure optimal performance and longevity of the machine, we provide comprehensive product technical support and services.

Our technical support team is available to assist you with installation guidance, operational training, and troubleshooting to ensure smooth and efficient machine operation. We offer detailed user manuals and maintenance guides to help you understand the machine’s functions and upkeep requirements. Regular maintenance services are recommended to keep the Transformer Coil Winding Machine in excellent working condition. These services include inspection, calibration, lubrication, and replacement of worn parts, carried out by our skilled technicians either remotely or on-site as needed.

For any technical issues or service requests, our dedicated support team is committed to providing timely and effective solutions to minimize downtime and maximize productivity.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packed to ensure safe delivery and protection from any damage during transportation. Each machine is securely wrapped with protective foam and plastic film to prevent scratches and moisture exposure. The machine is then placed inside a sturdy wooden crate, depending on the size and weight of the unit. Inside the packaging, all accessories, manuals, and spare parts are neatly organized and securely fixed to avoid movement.

Shipping:

We offer reliable shipping options to ensure timely delivery of the Transformer Coil Winding Machine to your location. The product can be shipped via sea freight, air freight, or land transport based on your preference and destination. All shipments come with tracking information and insurance coverage for added security. Our logistics partners follow stringent protocols for handling heavy machinery to maintain the product’s integrity throughout the shipping process. Upon arrival, please inspect the package carefully and report any damage immediately to facilitate prompt resolution.

FAQ:

Q1: What is the origin and brand of the Transformer Coil Winding Machine?

A1: The Transformer Coil Winding Machine is manufactured in China and is available under OEM or custom brand names.

Q2: What certifications does this machine have?

A2: This machine is certified with CE, ensuring high quality and safety standards.

Q3: What is the minimum order quantity and price range for the Transformer Coil Winding Machine?

A3: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the model and customization.

Q4: How is the machine packaged and what is the delivery time?

A4: The machine is packaged in export wooden cases. The delivery time is 30–35 days for standard models and 35–40 days for customized machines.

Q5: What payment terms are accepted and what is the supply ability?

A5: Payment terms accepted include T/T. The supply ability is 100 sets per year to meet customer demand efficiently.
