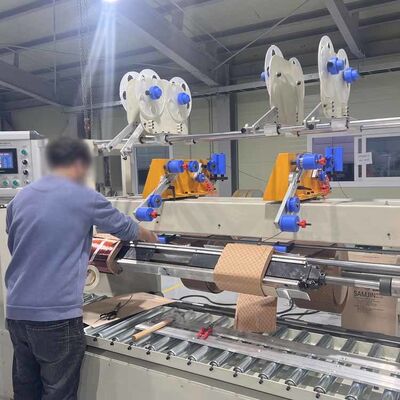

7.5KW Winding Motor Transformer Coil Winding Machine with 40x40mm Shaft Size for Copper and Aluminum Wire Compatibility

7.5kw Motor Electrical Coil Winding Equipment With Servo Motor Power 0.75kw Capable of Handling Diverse Coil Sizes and Types

Product Description:

The Transformer Coil Winding Machine is a state-of-the-art Electrical Coil Winding Equipment designed to meet the precise and demanding requirements of transformer manufacturing. Engineered for efficiency and reliability, this advanced Transformer Winding Machine is ideal for producing high-quality coils with consistent accuracy, making it an indispensable tool in the electrical manufacturing industry.

One of the standout features of this Transformer Coil Winding Machine is its powerful winding motor, rated at 7.5KW, which ensures robust performance and smooth operation during the coil winding process. This high-powered motor enables the machine to handle a wide range of coil sizes and wire types without compromising on speed or precision.

The machine is equipped with a sturdy square shaft, designed to support the coil securely throughout the winding process. This shaft size, 40x40mm, allows for the accommodation of various coil dimensions, making the Transformer Coil Winding Machine versatile enough to be used in different transformer production lines. Its durable construction ensures minimal vibrations and enhanced stability, which are critical for maintaining coil quality and preventing wire damage.

Flexibility in wire material compatibility is another key advantage of this Automatic Coil Winding Machine. It is capable of winding coils using both copper and aluminium wires, two of the most commonly used materials in transformer manufacturing. This adaptability allows manufacturers to switch between wire types effortlessly, catering to diverse customer requirements and reducing downtime associated with material changeovers.

The Transformer Coil Winding Machine integrates advanced automation features that streamline the entire coil winding process, reducing manual intervention and increasing production efficiency. As an Automatic Coil Winding Machine, it offers precise control over winding parameters such as tension, speed, and number of turns, which are crucial for producing coils that meet stringent electrical and mechanical specifications. This level of automation not only improves consistency but also minimizes the risk of human error, enhancing overall product quality.

Designed with user-friendly controls and a robust mechanical structure, this Electrical Coil Winding Equipment ensures ease of operation and maintenance. Operators can quickly set up the machine for different coil designs and wire materials, enabling rapid changeovers and higher throughput. Additionally, the machine’s construction emphasizes durability and longevity, allowing it to withstand the rigors of continuous industrial use.

In summary, the Transformer Coil Winding Machine is a highly efficient and versatile Transformer Winding Machine that combines powerful motors, a substantial shaft size, and compatibility with multiple wire materials to deliver superior coil winding performance. Its automation capabilities make it an excellent choice for manufacturers seeking to optimize production, improve coil quality, and reduce labor costs. Whether producing small or large transformer coils, this Automatic Coil Winding Machine stands out as a reliable and essential piece of Electrical Coil Winding Equipment in modern transformer manufacturing facilities.

Features:

• Product Name: Transformer Coil Winding Machine
• Shaft Size: 40x40mm
• Power: 7.5kw Motor
• Shaft Height: 900mm
• Automatic Coil Winding Machine for efficient and precise coil production
• High-performance Electrical Coil Winding Equipment suitable for various transformer coils
• Designed as an Automatic Coil Winding Machine to enhance productivity and reduce manual labor

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under OEM or Custom Brand options, is a highly versatile piece of Electrical Coil Winding Equipment designed to meet diverse industrial needs. Manufactured in China and certified with CE certificate, this machine guarantees reliable performance and adherence to international quality standards. It is ideal for various applications in the electrical and manufacturing industries, especially where precision winding of transformer coils is required.

This CNC Coil Winding Machine excels in scenarios that demand high efficiency and accuracy in coil production. Whether you are producing small batches or custom transformer coils, this machine supports a finished coil number of up to 2 pieces per cycle, making it suitable for both prototype development and small to medium-scale production runs. Its shaft size of 40x40mm accommodates a wide range of coil dimensions, providing flexibility for different transformer designs.

Equipped with a 0.75kw servo motor and a 7.5kw winding motor power, the Transformer Coil Winder ensures stable and consistent winding performance. It is compatible with various wire materials, including copper and aluminium, which broadens its application scope across different coil manufacturing requirements. The machine is particularly useful in electrical equipment factories, transformer manufacturing plants, and research and development centers where precision coil winding is critical to product quality.

Payment terms are flexible, supporting T/T, which facilitates smooth transactions for international buyers. With a supply ability of 100 sets per year, this Electrical Coil Winding Equipment is readily available to meet market demands without compromising on quality or delivery schedules.

In summary, the Transformer Coil Winding Machine is an essential CNC Coil Winding Machine solution for industries focused on transformer production. Its robust design, certified quality, and adaptable features make it an indispensable tool for precise and efficient coil winding tasks.

Customization:

Our Transformer Coil Winder customization services cater to your specific production needs with OEM and Custom Brand options. Manufactured in China, our Coil Winder Machine is certified with CE certificate, ensuring high quality and reliability.

We offer a flexible minimum order quantity starting from just 1 set, with prices ranging from USD 8,000 to 15,000 per set. Each Transformer Coil Winding Machine is carefully packaged in export wooden cases to guarantee safe delivery. The delivery time for standard Coil Winder Machines is between 30 to 35 days, while customized machines require 35 to 40 days. Payment terms include T/T for your convenience.

With a supply ability of 100 sets per year, we ensure timely fulfillment of your orders. The machine features a shaft height of 900mm, powered by a 0.75kw servo motor and a 7.5kw winding motor, supporting wire materials of copper or aluminium.

All Transformer Coil Winders come with a 12-month warranty, underscoring our commitment to quality and customer satisfaction. Choose our Coil Winder Machine customization services for efficient, reliable, and tailored coil winding solutions.

Support and Services:

Our Transformer Coil Winding Machine is designed to deliver precise and efficient winding solutions for transformer manufacturing. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and services.

Our technical support team is available to assist with installation guidance, operational training, and troubleshooting to help you maximize productivity. We offer detailed user manuals and maintenance instructions to facilitate smooth daily operations. Regular maintenance services are recommended to keep the machine in excellent working condition. Our service packages include routine inspections, calibration, and replacement of worn components to prevent unexpected downtime.

For any technical inquiries or service requests, our dedicated support team is committed to providing timely and effective solutions to ensure your Transformer Coil Winding Machine operates at peak efficiency.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packaged to ensure safe delivery and protection during transit. Each unit is securely wrapped with protective materials such as stretch film to prevent damage from shocks and vibrations. The machine is then placed inside a sturdy wooden crate or reinforced cardboard box, depending on the shipping requirements. All accessories, manuals.

Shipping:

We offer reliable shipping options for the Transformer Coil Winding Machine to destinations worldwide. The shipment is handled by trusted logistics partners who specialize in heavy machinery transport. Prior to shipping, the machine undergoes thorough inspection and testing to ensure it is in perfect working condition. Shipping methods include air freight for faster delivery and sea freight for cost-effective bulk transport. We provide tracking information and estimated delivery times to keep customers informed throughout the shipping process. Additionally, insurance options are available to cover any unforeseen damages or losses during transit.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names, tailored to your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine holds CE certification, ensuring quality and safety standards.

Q4: What is the minimum order quantity and price range for the Transformer Coil Winding Machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on specifications.

Q5: What are the packaging and delivery details for the Transformer Coil Winding Machine?

A5: The machine is packed in export wooden cases or vacuum packaging. Delivery time is typically 30–35 days for standard models and 35–40 days for customized orders.

Q6: What payment terms are accepted for purchasing the Transformer Coil Winding Machine?

A6: We accept payment via T/T.

Q7: What is the yearly supply capacity of the Transformer Coil Winding Machine?

A7: We have a supply ability of 100 sets per year.
