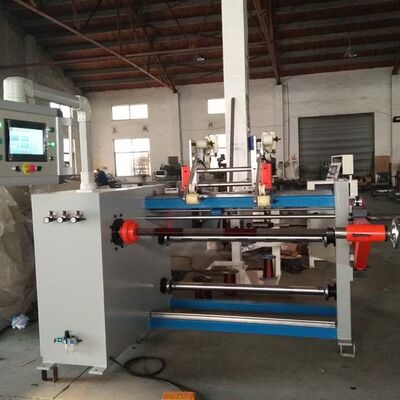

Transformer Coil Winding Machine with 7.5KW Winding Motor 900mm Shaft Height and 500mm Winding Width

Transformer Coil Winding Machine Designed for Copper Or Aluminium Wire and 900mm Shaft Height

Product Description:

Transformer Coil Winding Machine ZPX500-2 is a state-of-the-art Electrical Coil Winding Equipment designed to meet the rigorous demands of modern manufacturing environments. Engineered for precision and efficiency, this Automatic Coil Winding Machine is ideal for producing high-quality coils with consistent performance, making it an indispensable tool for industries specializing in transformers, motors, and other electrical components.

One of the standout features of this Transformer Coil Winding Machine is its capability to handle a finished coil number of up to 2 pieces at a time. This allows for increased productivity without compromising the quality or accuracy of the winding process. Whether you are working on small batches or require rapid production cycles, this machine adapts seamlessly to your operational needs.

The winding capacity of this Electrical Coil Winding Equipment is impressive, with the ability to wind coils with maximjum width 500mm per coil. This substantial capacity ensures that the machine is suitable for a wide range of coil sizes and specifications, accommodating diverse requirements across different applications.

In terms of structural design, the Transformer Coil Winding Machine features a robust shaft height of 900mm. This generous shaft height allows the machine to handle larger coils and provides ample space for versatile winding configurations. The design not only enhances the machine’s adaptability but also ensures stability and durability during intensive winding operations. The consistent shaft height is a critical factor in maintaining uniform tension and alignment throughout the winding process, which is essential for producing high-quality coils.

Powering this sophisticated Automatic Coil Winding Machine is a powerful 7.5KW winding motor. The motor’s capacity ensures smooth and efficient operation, delivering the necessary torque and speed to handle complex winding tasks with ease. The 7.5KW motor is optimized for energy efficiency, reducing operational costs while maintaining high performance. This robust motor system is engineered to provide consistent power output, minimizing downtime and maximizing productivity.

The Transformer Coil Winding Machine integrates advanced control systems that facilitate precise adjustments and monitoring throughout the winding process. This level of control is vital for achieving uniform coil dimensions and electrical characteristics, which directly impact the performance of transformers and motors. Operators benefit from user-friendly interfaces and automated functions that simplify setup, reduce manual intervention, and enhance overall workflow efficiency.

Designed with durability and longevity in mind, this Transformer Coil Winding Machine is constructed from high-quality materials that withstand the rigors of continuous industrial use. The machine’s components are engineered for easy maintenance and quick replacement, ensuring minimal downtime and sustained operational excellence. Its compact footprint combined with a sturdy build makes it an excellent choice for both small workshops and large-scale manufacturing facilities.

In summary, the Transformer Coil Winding Machine is a versatile and reliable piece of Electrical Coil Winding Equipment that excels in delivering precision winding with impressive capacity and power. Its ability to handle up to 2 finished coils simultaneously, wind coil with maximum width 500mm per coil, utilize a 900mm shaft height, and operate with an 7.5KW winding motor makes it a superior choice for any application requiring high-quality coil production. Whether you are looking to enhance your existing production line or establish a new coil manufacturing setup, this Automatic Coil Winding Machine provides the performance, durability, and efficiency necessary to meet and exceed your expectations.

Features:

• Product Name: Transformer Coil Winding Machine
• Winding Motor: 7.5 kW
• Shaft Height: 900 mm
• High precision Coil Winder Machine suitable for transformer coils
• Advanced Transformer Coil Winder with robust construction
• Equipped with CNC Coil Winding Machine technology for automated and accurate winding

Technical Parameters:

Applications:

Transformer Coil Winding Machine, also known as the Transformer Wire Coil Winder, is an essential piece of equipment designed for precision winding of coils used in transformers, and other electromagnetic components. Ideal for both copper and aluminium wire materials, this machine supports a winding width up to 500mm per coil, making it highly versatile for various coil manufacturing needs. With a powerful 7.5kw motor, it ensures efficient and reliable operation in diverse industrial settings.

Manufactured in China under OEM or custom brand options, this Coil Winder Machine is certified with CE certificate, guaranteeing high quality and compliance with international standards. Its robust shaft height of 900mm accommodates a wide range of coil sizes, enabling users to produce coils with precision and consistency. The minimum order quantity is just one set, making it accessible for small workshops and large-scale manufacturers alike.

The Transformer Coil Winding Machine is perfectly suited for application occasions such as transformer manufacturing plants, electrical component factories, research and development laboratories, and educational institutions. It is ideal for winding wire coils and other complex coil shapes used in power transformers and other similar products. This machine significantly improves production efficiency and reduces manual labor, making it indispensable in modern coil production lines.

Packaging is handled with care, employing export wooden cases to ensure the machine arrives safely at its destination. Delivery time ranges from 30 to 35 days for standard models and 35 to 40 days for customized versions, supporting timely project execution. Payment terms T/T, catering to international buyers’ preferences.

With a supply ability of 100 sets per year, this Transformer Coil Winder meets the demands of both small and large-scale operations. Whether you are producing wire coils or other types of transformer coils, this Coil Winder Machine offers precision, reliability, and efficiency, making it an indispensable asset in the coil manufacturing industry.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services to meet your specific needs. As an OEM / Custom Brand manufacturer based in China, we ensure high-quality standards with certifications including CE. Whether you require a single unit or bulk orders, our minimum order quantity is just 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on your customization requirements.

The Transformer Winding Machine is designed with a powerful 7.5kw winding motor power and can handle winding width 500 mm per coil. It features a shaft height of 900mm and supports wire materials such as copper or aluminium, ensuring versatility for various transformer coil specifications.

We package each Transformer Winding Machine carefully using export wooden cases to guarantee safe delivery. Our standard delivery time is 30–35 days for standard models, and 35–30 days for customized machines. Payment terms T/T to accommodate your convenience.

With a supply ability of 100 sets per year, we are ready to fulfill your orders promptly while maintaining strict quality control. Trust our Coil Winder Machine customization services to provide you with reliable, efficient, and tailored Transformer Winding Machines that perfectly suit your production needs.

Support and Services:

Our Transformer Coil Winding Machine is designed to deliver precision and efficiency in the manufacturing of transformer coils. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and services.

Technical Support: Our experienced technical team is available to assist with installation, operation guidance, and troubleshooting. We offer detailed user manuals and maintenance guides to help you maximize the machine’s productivity and minimize downtime.

Maintenance Services: Regular maintenance is crucial for the smooth operation of your Transformer Coil Winding Machine.

Training: We offer training sessions for your staff to ensure they are proficient in operating and maintaining the machine if needing. This helps in improving operational efficiency and reducing the risk of errors.

Spare Parts: Genuine spare parts are available to ensure compatibility and reliability. Using original parts helps maintain the quality and safety standards of your machine.

Warranty and Repairs: The machine comes with a warranty covering manufacturing defects. In case of any issues, our repair service ensures quick and effective resolution to minimize your production downtime.

We are committed to providing excellent technical support and services to help you achieve the best results with your Transformer Coil Winding Machine.

Packing and Shipping:

Product Packaging and Shipping for Transformer Coil Winding Machine

Our Transformer Coil Winding Machine is carefully packaged to ensure it arrives at your location in perfect condition. Each machine is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage during transit.

Shipping is available worldwide via sea, air, or land transportation based on customer preference and destination. We provide detailed tracking information and work with reliable logistics partners to ensure timely and safe delivery.

Before shipment, each Transformer Coil Winding Machine undergoes thorough quality checks and testing to guarantee optimal performance upon arrival. Our team is also available to assist with installation guidance and after-sales support to ensure customer satisfaction.

FAQ:

Q1: What brands are available for the Transformer Coil Winding Machine?

A1: The Transformer Coil Winding Machine is available under OEM or custom brand options to meet your specific branding requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: Our Transformer Coil Winding Machines are manufactured in China, ensuring high-quality production standards.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine holds CE certification, guaranteeing compliance with international quality and safety standards.

Q4: What is the minimum order quantity and price range for the Transformer Coil Winding Machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the model and customization.

Q5: What are the packaging and delivery details for this machine?

A5: The machine is packaged in export wooden cases for safe transportation. Standard models are delivered within 30–35 days, while customized machines take 35–40 days.

Q6: What payment methods are accepted for purchasing the Transformer Coil Winding Machine?

A6: We accept payment via T/T to provide flexible financial options.

Q7: What is the yearly supply capacity of the Transformer Coil Winding Machine?

A7: Our supply ability is 100 sets per year, ensuring timely availability for your orders.
