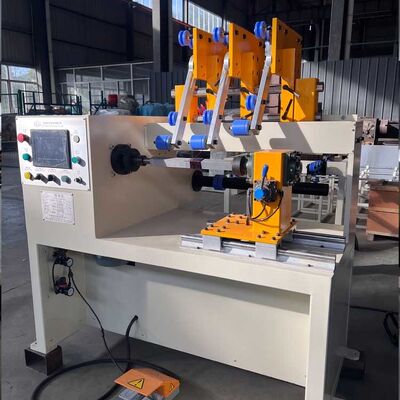

Transformer Coil Winding Machine with 4KW Motor 40x40mm Shaft for 3 Finished Coils CNC Automatic Operation

Finished Coil Number 3 Pcs Max Transformer Coil Winding Machine Powered by Winding Motor 4KW Ensuring Operation

Product Description:

The Transformer Coil Winding Machine ZPX150-3 is a highly efficient and versatile piece of equipment designed to meet the precise winding needs of various coil manufacturing processes. This coil winding machine is ideal for producing high-quality coils used in transformers, and other electrical devices. Its robust construction and advanced features make it an essential tool for industries requiring precision and reliability in coil winding operations.

One of the standout features of this Transformer Winding Machine is its substantial shaft size, measuring 40x40mm(optional). This sizeable shaft dimension allows the machine to accommodate a wide range of coil sizes, providing flexibility and adaptability for different production requirements. Whether you need to wind small, intricate coils or larger, more robust ones, this machine can handle the task with ease, ensuring consistent performance and high productivity.

The machine supports winding with both copper and aluminium wire materials, catering to diverse customer needs and applications. Copper, known for its excellent electrical conductivity and durability, is commonly used in transformer and motor coils, while aluminium offers a lightweight and cost-effective alternative. The ability to work with both wire materials makes this CNC Coil Winding Machine a versatile solution for manufacturers aiming to optimize their production processes and meet varied market demands.

Powered by a strong 4KW winding motor, the Transformer Coil Winding Machine delivers reliable and consistent torque, ensuring smooth and precise winding operations. The motor's power facilitates efficient handling of the wire tension and speed control, which are critical factors in producing coils with uniform turns and minimal defects. This level of motor performance enhances the machine’s capability to operate continuously under demanding production schedules without compromising on quality.

In terms of output capacity, the machine is capable of producing a maximum of 3 finished coils at a time. This feature allows for efficient batch processing, reducing downtime between coil changes and increasing overall throughput. Manufacturers can benefit from this capability by meeting higher production targets and improving workflow efficiency, making it a cost-effective investment for coil winding operations.

As a CNC Coil Winding Machine, this equipment integrates advanced computer numerical control technology, which ensures high precision and repeatability in coil winding processes. The CNC system allows operators to program specific winding parameters, such as the number of turns and winding speed, resulting in consistent coil quality and reduced manual intervention. This automation not only enhances production accuracy but also minimizes human error and material waste.

Additionally, this Coil Winding Machine is designed with user-friendly controls and safety features, providing a safe and convenient working environment for operators. The ergonomic design facilitates easy loading and unloading of coils, while the sturdy frame and durable components ensure long-term operational stability and minimal maintenance requirements.

In summary, the Transformer Coil Winding Machine is a powerful, flexible, and precise solution for winding coils used in transformers and other electrical applications. With its shaft size of 40x40mm, compatibility with copper and aluminium wires, and a robust 4KW motor, it stands out as a reliable choice for coil manufacturers. The machine’s ability to handle up to 3 finished coils simultaneously, combined with its CNC capabilities, ensures high efficiency, quality, and productivity in coil winding operations. Whether you are looking to enhance your transformer winding process or improve motor coil production, this CNC Coil Winding Machine offers the perfect blend of technology and performance to meet your industrial needs.

Features:

• Product Name: Transformer Coil Winding Machine
• Compatible with Copper and Aluminum Wires
• Equipped with a 0.75kw Servo Motor for wire arrangement
• Shaft Size: 40x40mm suitable for various coil sizes
• Winding Motor Power: 4kw ensuring efficient winding process
• Ideal Transformer Winding Machine for manufacturing and repair
• Efficient Motor Coil Winding Machine designed for high performance

Technical Parameters:

Applications:

The Transformer Coil Winding Machine is an essential piece of equipment designed for precision and efficiency in the production of various shapes of coils. Manufactured by OEM / Custom Brand in China, this machine is ideal for industries that require high-quality coil winding solutions. Certified with CE standards, it ensures reliability and safety for professional use.

This CNC Coil Winding Machine is versatile and suitable for winding copper and aluminum wires, accommodating material compatibility with ease. It features a robust square shaft size of 40x40mm and is powered by a 4kw winding motor, which guarantees stable performance and high productivity. The machine can produce up to 3 finished coils at a time, making it perfect for small to medium-scale manufacturing environments.

The Transformer Coil Winder is widely used in transformer manufacturing, and various electronic component industries. It excels in scenarios where precise coil winding is critical, such as in the production of coils for transformers, and other electromagnetic devices. The machine’s CNC capabilities allow for automation and high repeatability, reducing manual labor and improving product consistency.

With a minimum order quantity of just one set, this machine is accessible for startups and established manufacturers alike. The pricing ranges from USD 8,000 to 15,000 per set, depending on the model and customization requirements. Packaging is handled with care, using export wooden cases to ensure safe delivery. Standard models can be delivered within 30–35 days, while customized versions require 35–40 days, catering to various production timelines.

Payment terms are flexible, accepting T/T, making transactions convenient for international buyers. The supply ability of 100 sets per year guarantees availability for bulk orders. Whether you are producing wire coils or transformers, this CNC Coil Winding Machine offers a reliable, efficient solution to meet your manufacturing needs.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services tailored to meet your specific requirements. Branded under OEM or your custom brand, this Automatic Coil Winding Machine is manufactured in China and certified with CE standards, ensuring top-quality performance and reliability. We accept a minimum order quantity of just 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the configuration and customization level. Each Transformer Coil Winder is carefully packaged in export wooden cases to guarantee safe delivery.

Standard models are delivered within 30 to 35 days, while customized CNC Coil Winding Machines may require 35 to 40 days to ensure all specifications are met. Payment terms are flexible, including T/T to facilitate smooth transactions. The machine is equipped with a winding motor power of 4kw, supported by a 0.75kw servo motor for wire arrangement. It features a shaft height of 900mm and can handle up to 3 finished coils simultaneously, enhancing productivity and efficiency.

With a supply capacity of 100 sets per year, we are well-equipped to fulfill your orders promptly. Choose our Transformer Coil Winding Machine for a reliable, customizable solution that integrates the latest CNC technology and automatic coil winding capabilities.

Support and Services:

Our Transformer Coil Winding Machine is designed to provide precise and efficient winding solutions for various types of transformer coils. We offer comprehensive technical support and services to ensure optimal performance and longevity of your equipment. Our technical support team is available to assist with installation, setup, and calibration of the machine to meet your specific production requirements. We provide detailed user manuals and operational guidelines to help you understand and utilize all features effectively.

Regular maintenance services are recommended to keep the Transformer Coil Winding Machine running smoothly. Our service packages include routine inspections, cleaning, lubrication, and replacement of worn-out parts to prevent unexpected downtime. In addition, we offer training sessions for operators and maintenance personnel to enhance their skills and ensure safe and efficient machine operation. Customized training programs can be arranged based on your team's experience and needs. Should you encounter any technical issues, our support team is ready to provide troubleshooting assistance remotely or on-site, minimizing your production disruptions. We also supply genuine spare parts and accessories to maintain the machine’s performance and reliability.

Partner with us for dedicated technical support and comprehensive services that maximize the productivity and lifespan of your Transformer Coil Winding Machine.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is securely packed using high-quality materials to ensure safe delivery. Each machine is wrapped with stretch film to prevent any damage during transit. The machine is then placed inside a sturdy wooden crate, depending on the size and weight of the unit.

Shipping:

We offer reliable shipping options to deliver the Transformer Coil Winding Machine worldwide. The shipping method is selected based on the destination, urgency, and customer preference, including air freight, sea freight, or land transport. Each shipment is tracked with a tracking number provided to the customer for real-time status updates. Prior to dispatch, the machine undergoes final quality checks and is securely fastened within the packaging to avoid movement. We also provide assistance with customs documentation and import regulations to ensure a smooth delivery process.

FAQ:

Q1: What brand options are available for the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names according to your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China.

Q3: What certifications does this machine have?

A3: Our Transformer Coil Winding Machine is certified with CE standards.

Q4: What is the minimum order quantity and price range for this machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the model and customization.

Q5: What packaging and delivery options are available?

A5: The machine is packed in export wooden cases. Delivery time is typically 30–35 days for standard models and 35–40 days for customized orders.

Q6: What payment methods do you accept?

A6: We accept T/T as payment methods.

Q7: What is your yearly supply capacity for this product?

A7: We can supply up to 100 sets of Transformer Coil Winding Machines per year.
