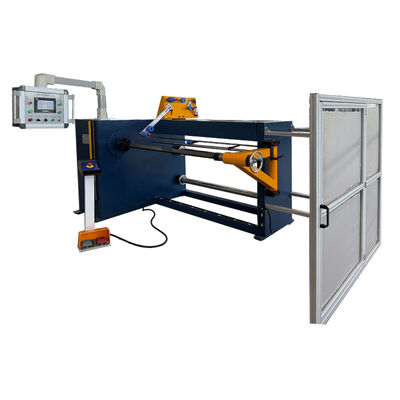

7.5kw Motor Transformer Coil Winding Machine with 40x40mm Shaft and 1200mm x 800mm x 1500mm Dimensions

7.5kw Winding Motor Power Transformer Coil Winding Machine Incorporating 40x40mm Winding Shaft

Product Description:

Transformer Coil Winding Machine is a highly efficient and reliable piece of equipment designed specifically for the precise winding of transformer coils. Engineered to meet the demanding requirements of modern transformer manufacturing, this winding machine offers outstanding performance and durability, making it an essential tool for any facility involved in transformer production or coil winding operations.

One of the standout features of this kind of transformer coil winder is its impressive winding capacity. The coil winding machine is capable of winding wire with maximum winding width 1000mm, allowing for the production of coils that meet exacting specifications with consistent accuracy. This capacity makes it suitable for a wide range of transformer sizes and applications, ensuring versatility and adaptability in diverse manufacturing environments.

Powering the winding process is a robust 7.5 KW motor, which provides ample torque and speed control to maintain smooth and stable operation throughout the winding cycle. This winding motor power allows the machine to handle heavy-duty tasks without compromising precision, thereby improving productivity and reducing the risk of coil defects. The motor’s reliability also contributes to minimal downtime, enhancing overall manufacturing efficiency.

The machine’s shaft size is another critical specification that underlines its robustness and capability. Measuring 40x40mm, the shaft is designed to support a wide variety of coil sizes and types. This substantial shaft dimension ensures stability and precision during the winding process, preventing wobbling or misalignment that could compromise coil quality. The sturdy construction of the shaft also contributes to the machine’s long service life, making it a sound investment for manufacturers.

Recognizing the importance of reliability and customer confidence, the Transformer Winding Machine comes with a comprehensive 12-month warranty. This warranty period reflects the manufacturer’s commitment to quality and provides users with peace of mind knowing that any issues or defects will be addressed promptly. The warranty also underscores the durability and dependability of the machine, assuring customers of its long-term performance.

Designed for ease of use, the Transformer Coil Winder features user-friendly controls and an ergonomic layout that simplifies operation. Whether operated by experienced technicians or new personnel, the machine’s intuitive interface minimizes the learning curve and reduces the likelihood of operator error. This ease of use, combined with its advanced technical features, makes it suitable for both small-scale workshops and large industrial plants.

In summary, the Transformer Coil Winding Machine is an indispensable tool for anyone involved in transformer coil production. Its high winding capacity, powerful 7.5KW winding motor, and a robust 40x40mm shaft size collectively ensure outstanding performance and reliability. Coupled with a 12-month warranty, this Transformer Coil Winder represents a smart investment for enhancing manufacturing efficiency and product quality in the transformer industry.

Whether you are upgrading your existing equipment or establishing a new production line, this Transformer Winding Machine delivers the precision, speed, and durability required to meet today’s demanding manufacturing standards. Its blend of advanced technology and practical design makes it a top choice for transformer manufacturers seeking to optimize their coil winding processes and achieve superior results consistently.

Features:

• Product Name: Transformer Coil Winding Machine
• Dimensions: 1200 mm x 800 mm x 1500 mm
• Material Compatibility: Copper and Aluminum Wires
• Winding Motor Power: 7.5KW
• Type: CNC Coil Winding Machine
• Specialized for Transformer Coil Winding Machine applications
• High precision Coil Winding Machine suitable for transformer manufacturing

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under OEM or Custom Brand, is a versatile and efficient piece of Electrical Coil Winding Equipment designed to meet the diverse needs of manufacturers and workshops. Originating from China and certified with CE standards, this winding machine guarantees high quality and reliability in coil winding processes. With a minimum order quantity of just 1 set, it is accessible to small and large-scale operations alike.

This coil winding machine is particularly suitable for occasions that require precise and consistent coil winding, such as in the production of transformers and other similar products. Its robust 7.5kw motor provides the necessary torque and control to wind copper or aluminium wire efficiently. The shaft size of 40x40mm supports winding capacities up to 600kg per coil, making it ideal for a wide range of coil sizes and applications.

The Transformer Coil Winding Machine excels in various scenarios including mass production lines in electrical component factories, research and development labs, and custom coil manufacturing workshops. Its automatic features enable high-speed and accurate winding, reducing manual labor and improving productivity. The machine’s compatibility with different wire materials and winding specifications makes it a perfect choice for producing transformer coils, hence functioning effectively as a Transformer Coil Winding Machine.

Packaging details such as export wooden cases ensure that the equipment arrives safely and in pristine condition, whether ordered for immediate use or stock. Delivery times are competitive, with standard models shipped within 30 days and customized machines delivered within 35 to 40 days. Payment terms are flexible, such as T/T, etc to accommodate international customers.

With a supply ability of 100 sets per year, this Automatic Coil Winding Machine is readily available to meet growing industrial demands. Priced between USD 10,000 to 15,000 per set, it offers excellent value considering its advanced features and dependable performance. Whether for electrical manufacturing plants or specialized coil production, this coil winding equipment is an essential investment that enhances operational efficiency and product quality.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services to meet your specific needs. As an OEM / Custom Brand manufacturer based in China, we provide high-quality CNC Coil Winding Machines and Transformer Coil Winders with CE certification, ensuring reliable performance and compliance with international standards.

We accept a minimum order quantity of just 1 set, with prices ranging from USD 10,000 to 15,000 per set, depending on the configuration and customization requirements. Each machine is carefully packaged in export wooden cases to guarantee safe delivery.

Our standard model delivery time is about 30 days, while customized Transformer Coil Winding Machines typically require 35 to 40 days. We support flexible payment terms including T/T and L/C to facilitate smooth transactions.

With a supply ability of 100 sets per year, we can efficiently meet large orders without compromising quality. Key technical specifications include a shaft size of 40x40mm, an 11kw motor powering the main system, and a 0.75kw servo motor, all designed to deliver precise and efficient coil winding operations.

Additionally, we offer a 12-month warranty on all our Transformer Coil Winders, ensuring long-term reliability and customer satisfaction. Whether you require a CNC Coil Winding Machine or a Transformer Coil Winding Machine, our customization services are tailored to support your production needs with superior technology and support.

Support and Services:

Our Transformer Coil Winding Machine is engineered for precision, efficiency, and durability, ensuring optimal performance in your manufacturing processes. To support the seamless operation of your equipment, we provide comprehensive technical support and services tailored to your needs.

Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance procedures to maximize the lifespan and reliability of your winding machine. We offer detailed user manuals and operational training to help your staff operate the machine safely and effectively.

Regular maintenance services are recommended to keep the Transformer Coil Winding Machine running at peak performance. Our service packages include routine inspection and replacement of worn components to prevent unexpected downtime.

In case of technical issues, our experts provide prompt remote assistance and, if necessary, on-site repair services to minimize disruption to your production schedule. We also offer software updates and upgrades to enhance machine functionality and incorporate the latest technological advancements.

For customized requirements, we provide consulting services to tailor the machine’s capabilities to your specific coil winding applications, ensuring optimal results and improved productivity.

Trust our dedicated support and service team to keep your Transformer Coil Winding Machine operating smoothly, delivering consistent, high-quality winding performance for your transformer manufacturing needs.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packed to ensure safe delivery. It is securely placed in a sturdy wooden crate with stretch film to protect against shocks and vibrations during transit. All delicate components are wrapped in stretch film and the machine is covered with a stretch film to prevent moisture damage. The packaging is clearly labeled to facilitate smooth customs clearance and handling.

Shipping:

We offer reliable shipping options to deliver the Transformer Coil Winding Machine to your location safely and on time. The machine can be shipped via sea freight, air freight, or land transport depending on your preference and destination. Shipping schedules and tracking information will be provided once the order is confirmed. Our logistics partners ensure careful handling and timely delivery, with insurance options available for added security.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names according to your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine is certified with CE standards to ensure quality and safety.

Q4: What is the minimum order quantity and price range for this machine?

A4: The minimum order quantity is 1 set, and the price ranges from USD 10,000 to 15,000 per set depending on specifications.

Q5: What are the delivery times and payment terms for ordering the Transformer Coil Winding Machine?

A5: Delivery time is about 30 days for standard models and 35–40 days for customized machines. Payment terms accepted include T/T, etc.
