ZPX500 High-Efficiency Servo-Driven Precision Transformer Coil Winding Machine with 0 ~ 90 rpm Adjustable Speed

ZPX500 High-Efficiency Transformer Coil Winding Machine

Precision Servo-Driven Wire Guiding for  Coil Production

Maximize your production efficiency with the coil winding machine ZPX500. Engineered for versatility and precision, the coil winding machine ZPX500 is the industry-standard solution for manufacturers looking to wind coil without compromising on accuracy. Whether you are handling round wire or flat wire, our advanced servo-driven technology ensures perfect layering every time.

Why Choose Coil Winding Machine ZPX500 for Your Production Line?

Productivity: Boost your output by automatic winding coil, significantly reducing labor costs and cycle times.

Servo-Driven Precision: Unlike traditional mechanical guides, our wire guide is driven by a high-torque Servo Motor, guaranteeing micron-level positioning and flawless wire arrangement.

Intuitive Touchscreen Control: An easy-to-use HMI (Human-Machine Interface) allows operators to input parameters in seconds, storing over 50 unique winding programs for rapid product changeover.

Superior Wire Flexibility: Seamlessly switch between round wire and heavy-duty flat wire.

Industrial Durability: Featuring slow-start protection and smooth-run technology, the coil winding machine ZPX500 minimizes wire tension spikes and machine wear.

Technical Specifications

Advanced Features for Modern Manufacturing

Humanized Design: Ergonomically optimized height (900mm) to reduce operator fatigue during long shifts.

Smart Automation: Fully automated winding process with high-precision counting and automatic stop functions.

Customizable Solutions: While our standard coil winding machine ZPX500 meets most industrial needs, we offer custom modifications to match your specific coil dimensions or speed requirements.

Optimize Your Coil Winding Today

The coil winding machine ZPX500 combines High Automation with Simple Operation, making it the ideal investment for transformer, inductor, and reactor manufacturers worldwide.

Ready to upgrade your production capacity?

[Get a Free Quote Now] —— Our engineers are ready to help you find the perfect configuration.

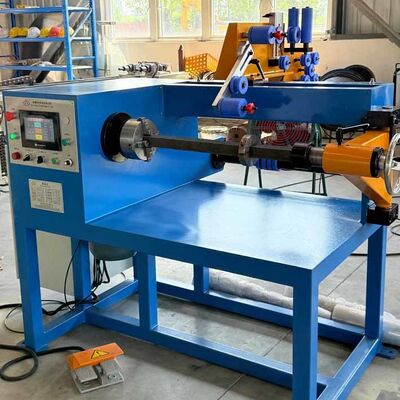

Fig 1: Transformer coil winding machine ZPX500's front view


Fig 2: Transformer coil winding machine ZPX500's triangle support
