ZPX600 Automatic Coil Winding Machine with 600mm Max Winding Width Servo-Driven Wire Guide and 0-200rpm Speed

Copper Wire Winder ZPX600 Automatic Coil Winding Machine

Precision Servo-Driven Solution for Oil-Type Transformer Coils

The coil winding machine ZPX600 is a high-performance industrial solution specifically engineered for the manufacturing of oil-immersed transformer coils, reactors, and similar inductive components. Combining PLC intelligent control with a high-torque Servo Motor wire guide, the coil winding machine ZPX600 ensures flawless wire layering for both round and flat wires. If you are looking to enhance your production accuracy while reducing labor intensity, the coil winding machine ZPX600 is your ideal workshop partner.

Key Advantages of the coil winding machine ZPX600 Winding System

Ultimate Precision with Servo Control: Unlike mechanical transmission, our wire guide is driven by a 0.75kw Servo Motor, achieving a minimum spread pitch of 0.01mm, which guarantees neat, compact layers that are critical for oil-type transformer insulation.

Versatile Wire Handling: Whether you are working with fine Round Wire (Ø0.3 - 5.0mm) or heavy-duty Flat Wire (up to 5x12mm), the coil winding machine ZPX600 handles both with ease.

Intelligent PLC & HMI Interface: Equipped with a responsive touch screen, operators can input parameters and store winding profiles in seconds. The machine automates the winding process based on your specific coil dimensions.

High-Speed Stability: Experience smooth, stepless speed regulation from 0 to 200 rpm. The "Slow Start" and "Smooth Running" features prevent wire tension spikes and breakage.

Robust Load Capacity: Designed for durability, the coil winding machine ZPX600 supports a maximum loading capacity of 200kg and a finished coil OD of up to 600mm.

Technical Specifications

Advanced Manufacturing Features

Strong Pulling Force: Engineered to handle the high tension required for thick flat wires used in power transformers.

High Reliability: Built with industrial-grade components to ensure 24/7 continuous operation with minimal maintenance.

Full Function Automation: Features automatic wire laying, preset turn counting (up to 9999.9), and automatic stop at completion.

Humanized Ergonomics: A center height of 900mm allows for comfortable operation and easier loading/unloading of heavy coils.

Why Partner with Us?

As a professional manufacturer in transformer manufacturing equipment, we understand that accuracy equals quality. The coil winding machine ZPX600 is more than just a winder; it’s a commitment to improving your product's electrical performance through superior coil geometry.

Boost your transformer production efficiency today.

[Request a Technical Consultation & Quote]

Contact our engineering team for customized configurations based on your specific winding needs.

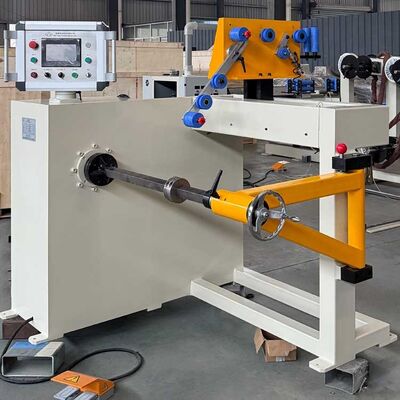

Fig 1: Transformer coil winding machine ZPX600's full view

Fig 2: Transformer coil winding machine ZPX600's winding guide
