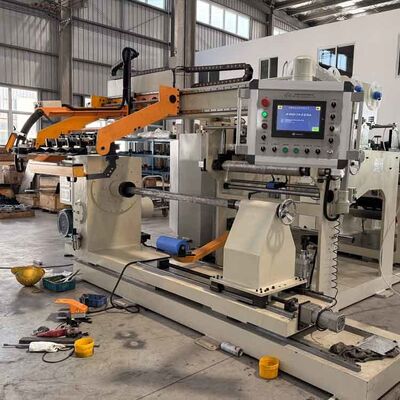

Transformer Foil Winding Machine with 15kw Winding Power, Pneumatic Tension Control for 0.2-2.0mm Copper Foil

Transformer Foil Winding Machine Model Providing 15kw Winding Power for High Precision Coil Production

Product Description:

The Transformer Foil Winding Machine is an advanced and highly efficient solution designed specifically for the precise and reliable winding of transformer foil. As a brand-new piece of equipment, this machine guarantees top-notch performance and durability, making it an essential tool for manufacturers and technicians involved in transformer production. The TFF Winding Machine is engineered to meet the highest standards of quality, ensuring consistent results and enhanced productivity.

One of the standout features of the Transformer Foil Wind Machine is its impressive speed range, operating smoothly from 0 to 20 RPM. This variable speed capability allows operators to customize the winding process according to the specific requirements of different transformer designs, ensuring optimal tension and alignment of the foil throughout the winding cycle. The precise control over speed contributes significantly to the overall quality and efficiency of the winding operation.

Tension Control is another critical attribute of the TFF Winding Machine that sets it apart from conventional equipment. Maintaining consistent tension during the winding process is essential to prevent damage to the foil and to achieve uniform winding layers. The tension control system continuously monitors and adjusts the tension, eliminating the need for manual intervention and reducing the risk of errors. This feature not only improves product quality but also enhances operational safety and reduces downtime.

Powering the Transformer Foil Wind Machine is a robust 15 kW motor, which provides sufficient energy to handle demanding winding tasks without compromising stability or precision. The high power rating ensures that the machine can operate continuously under heavy workloads while maintaining consistent performance. This makes it an ideal choice for high-volume production environments where reliability and efficiency are paramount.

The welding mode incorporated in the TFF Winding Machine is TIG (Tungsten Inert Gas) welding, known for its precision and high-quality welds. TIG welding is particularly suitable for delicate and thin materials like transformer foil, as it produces clean, strong, and corrosion-resistant joints. This welding technique ensures that the foil connections are secure and durable, contributing to the overall reliability of the finished transformer. The integration of TIG welding within the winding machine streamlines the manufacturing process by combining winding and welding operations into a single automated system. The Transform Foil Wind Machine is designed with user convenience and operational efficiency in mind. Its advanced control panel allows easy programming and monitoring of winding parameters, making it accessible even to operators with limited technical experience. The machine's robust construction and high-quality components promise long service life and minimal maintenance requirements, reducing operational costs in the long run.

In summary, the TFF Winding Machine is a cutting-edge transformer foil winding solution that combines speed, precision, and automation to deliver superior performance. Its new condition, versatile speed range of 0 to 20 RPM, automatic tension control, powerful 15 kW motor, and TIG welding mode make it an indispensable asset for transformer manufacturers aiming to improve product quality and production efficiency. Investing in the Transform Foil Wind Machine ensures a reliable, efficient, and high-quality winding process that meets the demands of modern transformer manufacturing.

Features:

• Product Name: Transformer Foil Winding Machine
• Model Keywords: TFF Winding Machine, Transformer Foil Wind Device
• Foil Conductor: Suitable for Copper and Aluminium Foil
• Copper Foil Thickness Range: 0.2-2.0mm
• Operating Speed: 0 ~ 20 Rpm
• Power Supply: 380V, 50Hz
• Application: Specifically designed for Transformer Manufacturing

Technical Parameters:

Applications:

The STT/Zhutang Transformer Foil Winding Machine, model BRJ800-2, is an advanced and reliable piece of equipment designed specifically for the efficient and precise winding of copper foils used in transformer manufacturing. This machine is ideal for industries and workshops focused on producing high-quality transformers, where precision and consistency are paramount. With a minimum order quantity of just 1 set, the TFF Winding Machine caters to both small-scale manufacturers and large production facilities.

The Transformer Foil Winding Machine is equipped with pneumatic tension control, ensuring that the copper foil, ranging from 0.2 to 2.0mm thickness, is wound uniformly without damage or deformation. This feature is crucial in maintaining the integrity and performance of transformer coils. The machine operates at speeds from 0 to 20 RPM, allowing operators to adjust winding speed according to specific production requirements, which enhances productivity without compromising quality.  In environments where precision winding is critical, the BRJ800-2 model stands out with its dual deburring units. These units effectively remove burrs from the copper foil edges, preventing defects and improving the overall quality of the transformer windings. The machine’s robust design, powered by a 380V, 50Hz power supply, guarantees stable and continuous operation, making it suitable for industrial applications where reliability is essential.

The Transformer Foil Winding Machine is packaged securely with Seaworth packing, ensuring safe delivery anywhere in the world. With a delivery time of 45 days and a supply ability of 100 sets per year, STT/Zhutang ensures timely availability to meet production schedules. Payment terms via T/T provide flexibility for buyers, while the negotiable price allows customization based on order size and specific requirements.

Typical application occasions for the STT/Zhutang Transform Foil Wind Machine include transformer manufacturing plants, electrical equipment factories, and specialized coil winding workshops. It is especially beneficial in scenarios where high precision, consistent tension control, and deburring are necessary to produce durable and efficient transformer coils. Whether used for prototype development or mass production, the BRJ800-2 TFF Winding Machine delivers exceptional performance, making it an indispensable tool for the transformer industry.

In summary, the STT Transformer Foil Winding Machine BRJ800-2 is perfectly suited for a range of transformer manufacturing applications. Its advanced features like pneumatic tension control, adjustable speed, and dual deburring units, combined with reliable power supply and professional packaging, make it an excellent investment for businesses aiming to enhance their production capacity and product quality.

Customization:

Introducing the STT/Zhutang Transformer Foil Winding Machine, model number BRJ800-2, designed specifically for efficient and precise transformer manufacturing. This high-quality Transform Foil Wind Machine features automatic tension control to ensure optimal winding performance and minimal material waste.

Our TFF Winding Machine comes equipped with two deburring units and two foil decoiler sets, enhancing productivity and maintaining the quality of the foil during the winding process. The Transformer Foil Wind Device is brand new, built to meet the rigorous demands of modern transformer production lines. We offer a minimum order quantity of just one set, with pricing negotiable to suit your project requirements. Each unit is carefully packaged using seaworth packing to guarantee safe delivery. The delivery time is approximately 45 days, with payment terms handled via T/T for your convenience.

With a supply ability of 100 sets per year, STT/Zhutang ensures reliable availability and support for your manufacturing needs. Choose the BRJ800-2 Transformer Foil Winding Machine for a state-of-the-art solution in transformer manufacturing.

Support and Services:

Our Transformer Foil Winding Machine is designed to deliver precision and efficiency in the winding process, ensuring high-quality transformer production. For technical support, our team of experts is available to assist with installation, operation, and troubleshooting to optimize machine performance.

We offer comprehensive services including routine maintenance, calibration, and upgrades to keep your winding machine operating at peak efficiency. Detailed user manuals and training sessions are provided to help your staff become proficient in using the equipment safely and effectively. In case of any operational issues or inquiries, our support specialists are ready to provide prompt solutions and guidance. We are committed to ensuring minimal downtime and maximizing productivity for your manufacturing processes.

Additionally, we provide customized service packages tailored to meet the specific needs of your production environment, including on-site support and remote diagnostics to quickly address and resolve any technical challenges.

Packing and Shipping:

Our Transformer Foil Winding Machine is carefully packaged to ensure it arrives in perfect condition. The machine is securely wrapped with protective materials to prevent any damage during transit. We offer reliable shipping options worldwide, using trusted carriers to deliver your order promptly and safely. Tracking information will be provided once the product has been dispatched. For large or customized orders, please contact our sales team to discuss special packaging and shipping requirements.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is manufactured by STT/ Zhutang and the model number is BRJ800-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity for the Transformer Foil Winding Machine is 1 set.

Q3: How is the product packaged for delivery?

A3: The machine is packaged using seaworthy packing to ensure safe shipment.

Q4: What is the typical delivery time after placing an order?

A4: The delivery time for the Transformer Foil Winding Machine is approximately 45 days.

Q5: What payment terms does STT/Zhutang offer for this product?

A5: Payment for the Transformer Foil Winding Machine is accepted via T/T (Telegraphic Transfer).
