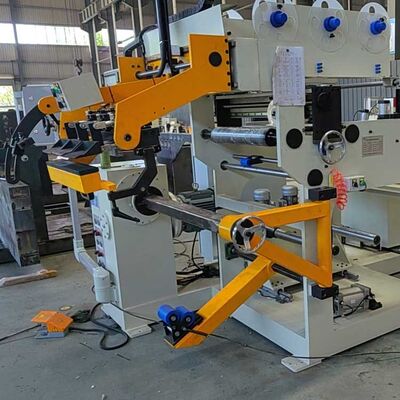

11kw Winding Power TFF Winding Machine with TIG Welding Mode and Automatic Coil Winding System for Transformer Manufacturing

11kw Winding Power TFF Winding Machine TIG Welding Mode Automatic Foil Winding System for Electrical Component Production

Product Description:

The TFF Winding Machine, also known as the Transformer Foil Winding Device or Transform Foil Winding Machine, is a state-of-the-art piece of equipment specifically designed for the precise and efficient winding of transformer foils. This machine plays a crucial role in the transformer manufacturing industry, ensuring high-quality production standards and enhanced operational efficiency. Built with advanced technology and robust construction, the Transformer Foil Winding Machine is ideal for modern transformer manufacturing facilities seeking reliable and consistent performance.

The Foil Winding Machine is equipped with 2 sets of deburring units. These deburring units are essential for maintaining the quality of the transformer foils by removing any burrs or sharp edges. The inclusion of two deburring units ensures that both sides of the foil are meticulously smoothed, preventing any potential damage or defects in the final transformer product. This dual deburring setup contributes significantly to the overall reliability and longevity of the transformers manufactured using this device.

Another important attribute of the TFF Winding Machine is its TIG welding capability. TIG welding is a technique that joins metal parts.

The Transformer Foil Winding Machine is delivered in new condition, reflecting its readiness for immediate deployment in production lines. Being a brand-new machine, it incorporates the latest technological advancements and quality assurance standards, offering reliability and durability for long-term use. Manufacturers can trust this machine to deliver consistent performance with minimal downtime, thereby improving overall manufacturing efficiency and reducing operational costs.

Specifically designed for transformer manufacturing applications, the Transform Foil Winding Machine is tailored to meet the demanding requirements of this specialized industry. Its precise winding capabilities, combined with effective deburring and TIG welding functions, make it an indispensable tool for producing high-quality transformer foils. Whether used in large-scale manufacturing plants or smaller specialized workshops, this machine enhances the quality and consistency of transformer components, directly contributing to superior transformer performance and reliability.

In summary, the TFF Winding Machine, Transformer Foil Winding Device, and Transform Foil Winding Machine represent a comprehensive solution for transformer foil winding needs. Featuring a welded flange fixture mode, 2 sets of deburring units, advanced TIG welding technology, and a brand-new condition, this machine is engineered to optimize the transformer manufacturing process. Its precision, efficiency, and durability make it an excellent investment for manufacturers aiming to produce top-tier transformer foils and components with ease and confidence.

Features:

• Product Name: Transformer Foil Winding Machine
• Power Supply: 380V, 50Hz for stable and efficient operation
• Foil Conductor Compatibility: Supports both Copper and Aluminium Foil
• Copper Foil Thickness Range: 0.2-2.0mm for versatile winding needs
• Automatic Tension Control system ensures precise foil tension during winding
• Application: Specifically designed for Transformer Manufacturing
• Also known as Transformer Foil Winding Machine and Transformer Foil Winding Device

Technical Parameters:

Applications:

The STT/Zhutang brand Transformer Foil Winding Machine, model number BRJ600-2, is an advanced piece of equipment designed specifically for precision winding of transformer foils. This TFF Winding Machine is ideal for various industrial applications where high-quality foil winding is essential. Its capability to handle both copper and aluminium foil conductors makes it versatile for different transformer manufacturing processes. The machine’s automatic tension control ensures consistent winding quality, which is critical in producing reliable transformer components.

This Transformer Foil Winding Machine is widely used in transformer manufacturing plants, electrical equipment factories, and research institutions focusing on transformer technology. It is particularly suitable for winding thin foils used in transformer cores and coils, where precise tension and alignment are crucial for optimal performance. The inclusion of two deburring units in the BRJ600-2 model guarantees that the foil edges are smooth and free from burrs, preventing damage during the winding process and ensuring the durability of the final product.

With a powerful 11kw winding motor, the TFF Winding Machine efficiently handles large-scale production demands while maintaining high accuracy. The foil decoiler included with the machine facilitates smooth unwinding of foil materials, enhancing operational efficiency. This machine is perfectly suited for occasions where transformers with high electrical and mechanical performance are required, such as in power generation stations, electrical grid construction, and heavy machinery manufacturing.

The minimum order quantity for the STT/Zhutang Transformer Foil Winding Machine is 1 set, making it accessible for both large manufacturers and smaller enterprises aiming to improve their transformer production capabilities. The price is negotiable, allowing customers to tailor the purchase according to their specific needs. Packaging is done using Seaworth Packing standards to ensure safe delivery, with a delivery time of approximately 45 days. Payment terms are flexible, with T/T accepted, and STT/Zhutang offers a supply ability of 100 sets per year, ensuring reliable availability.

In summary, the BRJ600-2 Transformer Foil Winding Machine by STT/Zhutang is an indispensable tool for transformer production, providing precision, efficiency, and reliability. Its advanced features such as automatic tension control, dual deburring units, and compatibility with both copper and aluminium foils make it the ideal choice for various application occasions and scenarios in the electrical manufacturing industry.

Customization:

Introducing the STT/Zhutang Transformer Foil Winding Machine, model number BRJ600-2, designed for precision and efficiency in transformer foil winding applications. This TFF Winding Machine features a TIG welding process and includes 2 sets of deburring units to ensure high-quality output.

The Transformer Foil Winding Device supports copper foil thickness ranging from 0.2 to 2.0mm and operates at speeds from 0 to 26 RPM, making it versatile for various transformer manufacturing needs. Each unit is brand new and comes with seaworthy packing to ensure safe delivery. We offer a minimum order quantity of 1 set, with a supply ability of 100 sets per year. The delivery time is approximately 45 days, and payment terms are handled via T/T. Pricing is negotiable to suit your project requirements.

Choose the STT/Zhutang BRJ600-2 Transformer Foil Winding Machine for reliable performance and excellent customization options in your production line.

Support and Services:

Our Transformer Foil Winding Machine is designed to deliver precision and efficiency in the winding process of transformer foils. To ensure optimal performance and longevity of the machine, we offer comprehensive technical support and services. Our technical support team is equipped to assist with installation, commissioning, and training to help your operators maximize the machine's capabilities. We provide detailed user manuals and maintenance guidelines to facilitate smooth operation and routine upkeep. In case of any operational issues or technical difficulties, our experts are available to troubleshoot and resolve problems promptly, minimizing downtime.

Preventive maintenance services are available to detect and address potential issues before they affect performance. Spare parts and replacement components are readily accessible to ensure quick repairs and sustained productivity. We are committed to delivering exceptional support and service to help you achieve reliable, high-quality transformer foil winding with our machine.

Packing and Shipping:

Product Packaging:

The Transformer Foil Winding Machine is securely packaged using high-quality, durable materials to ensure safe delivery. Each machine is carefully wrapped with protective foam and plastic film to prevent scratches and damage during transit. All packaging is designed to withstand handling, vibration, and moisture exposure, ensuring the machine arrives in perfect working condition.

Shipping:

We offer reliable shipping options worldwide for the Transformer Foil Winding Machine. The product can be shipped via sea freight based on customer preference and destination. Prior to shipment, the machine undergoes thorough inspection and testing. Shipping includes proper labeling, documentation, and tracking information to facilitate smooth customs clearance and delivery. Our logistics partners ensure timely and safe delivery to your specified location.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is manufactured by STT/Zhutang, and the model number is BRJ600-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity is 1 set.

Q3: What are the payment terms for purchasing the Transformer Foil Winding Machine?

A3: The payment terms are T/T (Telegraphic Transfer).

Q4: How is the machine packaged for delivery?

A4: The machine is packed using seaworthy packing to ensure safe transportation.

Q5: What is the typical delivery time after placing an order?

A5: The delivery time is approximately 45 days after order confirmation.

Q6: Is the price fixed or negotiable?

A6: The price is negotiable depending on order specifications and quantity.

Q7: What is the supply capacity of STT/Zhutang for this model?

A7: STT can supply up to 100 sets of the BRJ600-2 Transformer Foil Winding Machine per year.
