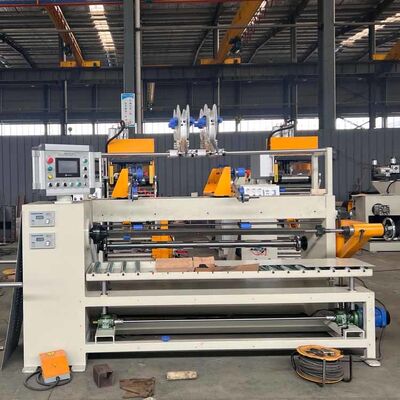

CNC Transformer Coil Winding Machine for 0.3 to 5.0mm Wires with Copper and Aluminum Compatibility

Round Wire Diameter 0.3 to 5.0mm Transformer Coil Winding Machine Designed for Coil Production and Consistent Performance

Product Description:

The Transformer Coil Winding Machine is a state-of-the-art solution designed for precision and efficiency in the production of transformer coils. This advanced equipment is engineered to handle a wide range of wire diameters, making it highly versatile for various transformer manufacturing needs. Specifically, it supports round wire diameters ranging from 0.3mm to 5.0mm, and rectangle wire with maximum size 5 x 12 mm, accommodating both small and medium-sized coils with exceptional accuracy.

One of the standout features of this Transformer Coil Winding Machine is its compatibility with different wire materials. It is expertly designed to work seamlessly with both copper and aluminum wires, which are the most commonly used materials in transformer coil production. This material compatibility ensures that manufacturers can rely on the machine to deliver consistent winding quality regardless of the conductor type, enhancing the flexibility and adaptability of the production process.

As a CNC Coil Winding Machine, this product incorporates cutting-edge computerized numerical control technology to automate the winding process with high precision. The CNC system allows for programmable winding patterns, speeds, and counting, resulting in consistent coil quality and reduced human error. This automation significantly improves production efficiency and repeatability, making it an indispensable tool for modern transformer manufacturing facilities.

In addition to its application in transformer manufacturing, this machine is also highly suitable as a other similar Coil Winding Machine. The versatility of the CNC controls and the wide wire diameter range make it ideal for winding similar coils, which require precise and uniform winding to ensure optimal motor performance. Whether producing transformer coils or other similar coils, this CNC Coil Winding Machine offers reliable performance and excellent results.

The machine is built with durability and reliability in mind, backed by a 12-month warranty period that provides peace of mind to users. This warranty underscores the manufacturer’s confidence in the machine’s quality and serves as a testament to its robust construction and dependable operation. Users can trust that any issues arising within the warranty period will be addressed promptly, minimizing downtime and maintaining production continuity.

Overall, the Transformer Coil Winding Machine combines advanced CNC technology and material versatility to provide a comprehensive solution for coil winding needs. Its ability to handle a broad range of wire diameters and conductors, along with its compatibility with copper and aluminum wires, makes it a highly adaptable piece of equipment suitable for various industries. Whether used as a CNC Coil Winding Machine for transformers or as a other similar Coil Winding Machine, it delivers precision, efficiency, and reliability, helping manufacturers achieve superior coil quality and increased productivity.

Features:

• Product Name: Transformer Coil Winding Machine
• Counting Range: 9999.99
• Color: Optional
• Transverse Width: 600mm
• Suitable for Transformer Coil Winding Machine applications
• Ideal for Transformer Coil Winding Machine operations
• Fully featured Automatic Coil Winding Machine

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under the OEM / Custom Brand from China, is an essential piece of equipment designed for a variety of industrial applications. Certified by CE, this Automatic Coil Winding Machine guarantees quality and reliability, making it an excellent choice for manufacturers and workshops involved in transformer production and other coil winding processes.

This Coil Winder Machine is highly versatile and can handle round wire diameters ranging from 0.3 to 5.0mm, suitable for winding copper or aluminium wire conductors. Its triangle support tail stock and a center height of 1000mm enable precise and efficient winding, crucial for creating high-quality transformer coils. The machine’s automation significantly improves productivity while maintaining consistent winding accuracy, making it ideal for mass production environments as well as custom orders.

The Transformer Coil Winding Machine is perfect for use in transformer manufacturing plants, and other electrical component production facilities where coil winding is a critical process. It is especially beneficial during occasions that require rapid turnaround times and precision, such as when producing custom transformer coils or prototyping new designs. With a supply ability of 100 sets per year, manufacturers can rely on timely delivery and consistent production capacity. Orders can be placed with a minimum quantity of just one set. The machine is securely packaged in export wooden cases to ensure safe delivery.

Payment terms are flexible, accepting T/T, facilitating smooth transactions for global customers. Additionally, the machine comes with a 12-month warranty period, providing peace of mind and dependable after-sales support. This combination of quality, flexibility, and efficiency makes the Automatic Coil Winding Machine an indispensable tool for any business involved in coil winding operations.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services tailored to meet your specific needs. As an OEM / Custom Brand product originating from China, we provide high-quality Electrical Coil Winding Equipment certified by CE, ensuring reliability and performance. With a minimum order quantity of just 1 set, you can choose from a price range of USD 10,000 to 20,000 per set depending on the configuration. The machine supports round conductor sizes from 0.3mm to 5.0mm, making it ideal for various transformer coil winding applications.

Our Transformer Coil Winding Machine type allows for color customization to match your brand or operational preferences. Each unit is carefully packaged in export wooden cases to guarantee safe delivery. Delivery times are prompt, with 35 to 40 days for standard models. We accept flexible payment terms including T/T to accommodate your convenience. With a supply ability of 100 sets per year and a 12-month warranty period, our Transformer Coil Winder ensures dependable service and support for your production needs.

Support and Services:

Our Transformer Coil Winding Machine is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We offer comprehensive installation guidance, user training, and maintenance services to help you maximize the efficiency and lifespan of your equipment. Our experts are readily available to assist with troubleshooting, machine calibration, and others. We provide detailed manuals and online resources to facilitate easy operation and quick resolution of common issues.

Regular maintenance services are recommended to maintain precision and reliability. These services include inspection, cleaning, lubrication, and replacement of worn components to prevent unexpected downtime. We also offer customized solutions and upgrades tailored to your specific production requirements, ensuring that your Transformer Coil Winding Machine evolves with your business needs.

Choose our technical support and service programs for prompt, professional assistance that keeps your operations running smoothly and efficiently.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packed to ensure safe delivery and protection during transportation. Each machine is securely wrapped with protective foam and plastic covers to prevent any damage. It is then placed inside a sturdy wooden crate or reinforced carton box, customized to fit the machine’s dimensions. All accessories, manuals, and spare parts are packed separately within the same crate to avoid any damage or loss.

Shipping:

We offer reliable shipping options worldwide. The Transformer Coil Winding Machine can be shipped via sea freight, air freight, or express courier depending on customer requirements and destination. Before shipping, the machine undergoes thorough inspection and testing to ensure it meets quality standards. Shipping documents, including the packing list, invoice, and certificate of origin, are provided to facilitate smooth customs clearance. We also offer tracking services so customers can monitor their shipment in real-time until delivery.

FAQ:

Q1: What is the minimum order quantity for the Transformer Coil Winding Machine?

A1: The minimum order quantity is 1 set.

Q2: What certifications does the Transformer Coil Winding Machine have?

A2: Our machine is certified with CE, ensuring high quality and safety standards.

Q3: What are the payment terms available for purchasing this machine?

A3: We accept T/T as payment method.

Q4: How long is the delivery time for the Transformer Coil Winding Machine?

A4: Delivery takes 35–40 days.

Q5: What packaging options are provided for shipping the machine?

A5: The machine is packaged in export wooden cases or vacuum packaging to ensure safe delivery.
