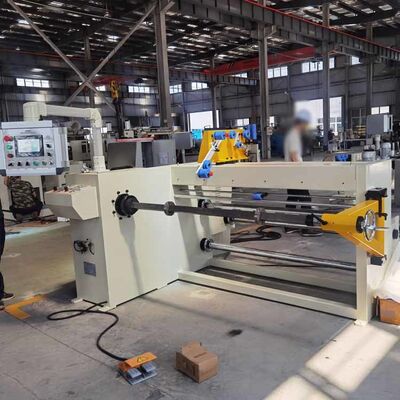

Automatic Coil Winding Machine with 12 Months Warranty, 1550mm Mandrel Length, and Triangle Support Tail Stock for Precision Winding

12 Months Warranty Period Transformer Coil Winding Machine Featuring Copper or Aluminium Wire Conductor and Counting Range 9999.99 Suitable for Industrial

Product Description:

The Transformer Coil Winding Machine is a state-of-the-art piece of equipment designed to meet the demanding requirements of modern transformer manufacturing. As a specialized Transformer Coil Winder, this machine ensures precision, efficiency, and reliability in winding coils for transformers of various sizes and specifications. Built with advanced technology and robust construction, it offers an ideal solution for both small-scale and large-scale production environments.

One of the standout features of this Transformer Coil Winding Machine is its impressive mandrel length of 1550mm. This extended mandrel length allows for the winding of large and complex coils, accommodating a wide range of transformer designs. Whether you are working on standard distribution transformers or specialized power transformers, the long mandrel length provides the flexibility to handle different coil sizes without compromising on accuracy or quality.

As an Automatic Coil Winding Machine, this product is engineered to deliver high-speed, consistent, and repeatable coil winding processes. Automation reduces the need for manual intervention, minimizing errors and enhancing productivity. The machine’s control system can be programmed to perform precise winding patterns, turns, and layers, ensuring that each coil meets exacting standards. This automation capability not only improves production efficiency but also helps in maintaining uniformity across batches, which is critical for transformer performance and longevity.

The Transformer Coil Winder comes equipped with a triangle support tail stock, which plays a crucial role in stabilizing the coil during the winding process. The triangle support tail stock supports the mandrel securely, reducing vibrations and preventing misalignment that could lead to defects in the coil. This feature ensures smooth rotation and consistent tension throughout the winding operation, contributing to the overall quality and durability of the finished coils.

In addition to its technical features, this Transformer Coil Winder is backed by a comprehensive 12-month warranty period. This warranty reflects the manufacturer’s confidence in the machine’s quality and durability. Customers can rely on prompt support and service during the warranty period, ensuring minimal downtime and maximizing return on investment. The warranty also covers essential components and offers peace of mind to users, knowing that their equipment is protected.

Overall, the Transformer Coil Winding Machine combines advanced automation, robust construction, and thoughtful design to provide an exceptional solution for transformer coil manufacturing. Its long mandrel length, PLC  control system and triangle support tail stock work together seamlessly to enhance winding accuracy, operational stability, and machine longevity. Whether you are upgrading your production line or starting a new manufacturing facility, this Automatic Coil Winding Machine represents a valuable investment that will improve productivity and product quality.

For companies looking to optimize their transformer coil production, this Transformer Coil Winder offers the perfect balance of precision, efficiency, and reliability. Its user-friendly operation, combined with advanced features, makes it suitable for a wide range of transformer coil winding applications. Experience the benefits of automated coil winding with this high-performance Transformer Coil Winding Machine and achieve superior results with every coil you produce.

Features:

• Product Name: Transformer Coil Winding Machine
• Type: Transformer Coil Winding Machine
• Warranty Period: 12 Months
• Conductor Compatibility: Copper or Aluminium Wire
• Tail Stock: Triangle Support for precise winding
• Counting Range: Up to 9999.99 for accurate coil counts
• Suitable for Wire Coil Winding Machine applications
• Also functions as a Wire Coil Winding Machine
• Ideal for manufacturing Transformer Coil Winding Machine components

Technical Parameters:

Applications:

The Transformer Coil Winding Machine is an essential piece of equipment designed to meet the diverse needs of manufacturers in the electrical and electronics industries. Available under the OEM / Custom Brand, this machine is proudly made in China and certified with CE, ensuring high quality and reliability. With a minimum order quantity of just 1 set, it offers great flexibility for businesses of all sizes, from small workshops to large-scale production lines.

This CNC Coil Winding Machine is ideal for winding various types of coils, including round conductors ranging from 0.3mm to 5.0mm in diameter, with a maximum transverse width of 1400mm and mandrel length of 1550mm. Its versatility makes it suitable for producing transformer coils, and other complex coil shapes with precision and efficiency. The Transformer Winding Machine supports both standard and customized models, accommodating specific requirements and applications in transformer manufacturing and coil production.

In practical application scenarios, this Transformer Coil Winding Machine is widely used in the production of  transformers and other similar products. It is particularly useful in industries such as electrical engineering and so on, where precise coil winding is crucial for product performance. The machine’s advanced CNC control system ensures consistent winding quality, reducing material waste and enhancing productivity.

Packaging is handled with care, using export wooden cases to protect the machine during transit. Delivery times range from 35 to 40 days, offering timely supply to meet production schedules. Payment terms are flexible, including T/T, facilitating smooth international transactions.

With a supply ability of 100 sets per year and a warranty period of 12 months, customers can rely on dependable service and ongoing support. Price ranges from USD 10,000 to 15,000 per set, making it a cost-effective solution for high-precision coil winding needs. Whether you are producing transformers or specialized electrical components, this Transformer Coil Winding Machine is designed to deliver exceptional performance in various manufacturing occasions and scenarios.

Customization:

Our Transformer Coil Winding Machine is available for product customization to meet your specific manufacturing needs. As an OEM / Custom Brand product originating from China, this CNC Coil Winding Machine is certified with CE, ensuring high quality and reliability.

We offer a minimum order quantity of just 1 set, with prices ranging from USD 10,000 to 15,000 per set depending on the configuration and customization options. Packaging is handled with care using export wooden cases to guarantee safe delivery. The delivery time varies from 35 to 40 days. Payment terms are flexible, including T/T, to accommodate your preferences.

Our supply ability stands at 100 sets per year, ensuring timely availability. The Transformer Coil Winder is compatible with both copper and aluminum wires, supporting round wire diameters from 0.3 to 5.0mm. It comes in optional colors to match your branding requirements. Customize your Transformer Coil Winding Machine today to enhance your production efficiency and meet your unique coil winding demands with our reliable and versatile transformer coil winding solutions.

Support and Services:

Our Transformer Coil Winding Machine is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We offer comprehensive installation guidance, user training, and routine maintenance services to maximize machine efficiency and lifespan.

Technical support includes troubleshooting assistance and hardware upgrades tailored to meet evolving production needs. Our engineers are available to provide expert advice on coil winding techniques and machine customization to suit specific transformer designs. We also offer extended warranty options and on-site service visits to minimize downtime and maintain continuous operation. Spare parts and replacement components are readily available to ensure quick repairs and sustained productivity.

For detailed operation manuals, troubleshooting guides, and maintenance schedules, customers can contact us any time. Our commitment is to provide reliable, prompt, and professional support to help you achieve the best results with your Transformer Coil Winding Machine.

Packing and Shipping:

Product Packaging and Shipping

The Transformer Coil Winding Machine is carefully packaged to ensure safe delivery and optimal protection during transit. Each machine is securely wrapped with protective plastic film and placed inside a sturdy wooden crate to prevent any damage from shocks or vibrations.

For shipping, we offer multiple options including sea freight, air freight, and express courier services, depending on the customer's requirements and destination. The packaging is designed to comply with international shipping standards to guarantee hassle-free customs clearance. Before dispatch, each machine undergoes thorough inspection and testing to verify quality and functionality.

Our dedicated logistics team coordinates with reliable carriers to ensure timely delivery and real-time tracking of your Transformer Coil Winding Machine from our facility to your doorstep.

FAQ:

Q1: What is the minimum order quantity for the Transformer Coil Winding Machine?

A1: The minimum order quantity is 1 set.

Q2: What certifications does the Transformer Coil Winding Machine have?

A2: The machine is certified with CE.

Q3: What is the price range for the Transformer Coil Winding Machine?

A3: The price ranges from USD 10,000 to 15,000 per set, depending on the model and customization.

Q4: How long does it take to deliver the Transformer Coil Winding Machine?

A4: Delivery time is 35–40 days.

Q5: What are the payment terms accepted for purchasing the Transformer Coil Winding Machine?

A5: We accept T/T as payment methods.

Q6: Where is the Transformer Coil Winding Machine manufactured?

A6: The machine is made in China.

Q7: How is the Transformer Coil Winding Machine packaged for shipment?

A7: The machine is packaged in export wooden cases to ensure safe delivery.

Q8: What is the yearly supply capacity for the Transformer Coil Winding Machine?

A8: We can supply up to 100 sets per year.

Q9: Can I order a machine with a custom brand?

A9: Yes, the machine can be supplied under OEM or custom brand names.
