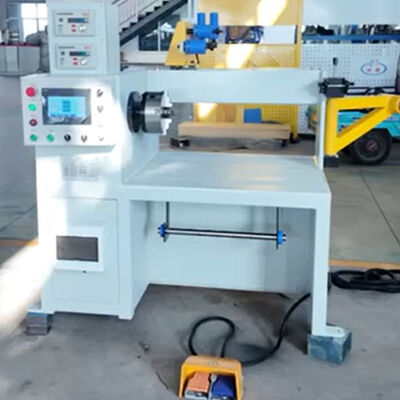

Transformer Coil Winding Machine with 1000mm Center Height for Copper and Aluminum Wires Featuring PLC Control System

Copper And Aluminum Wires Transformer Coil Winding Machine Including 1000mm Center Height

Product Description:

The Transformer Coil Winding Machine is an advanced and highly efficient piece of electrical coil winding equipment designed to meet the diverse needs of transformer manufacturing and coil production industries. This machine excels in precision winding of transformer coils using copper or aluminium wire, ensuring superior quality and performance in the final product. Its robust construction and innovative design make it an indispensable tool for producing coils with consistent accuracy and reliability.

One of the key features of this transformer coil winding machine is its versatility in handling round wire diameters ranging from 0.3mm up to 5.0mm. This broad range allows manufacturers to work with various wire gauges, accommodating different transformer specifications and design requirements. Whether you are working with fine copper wires for small transformers or thicker aluminium conductors for high-capacity coils, this machine provides the flexibility needed to achieve optimal winding results.

The machine boasts a center height of 1000mm, providing ample space for winding large coils while maintaining ergonomic operation standards. This generous center height facilitates the winding of both standard and custom transformer coils, which are commonly used in electrical applications for their efficiency and compact design.

Equipped with state-of-the-art control systems, the coil winder machine ensures precise tension control and uniform layering of the wire during the winding process. This is critical for maintaining the electrical and mechanical integrity of the coils, as uneven winding can lead to performance issues and reduced lifespan of the transformer. The machine’s control system allows operators to set parameters tailored to specific coil designs, enhancing productivity and minimizing material wastage.

Designed with both copper and aluminium conductors in mind, the transformer coil winding machine is adaptable to different conductor materials. Copper wire, known for its excellent electrical conductivity, and aluminium wire, valued for its lightweight and cost-effectiveness, can both be wound efficiently without the need for extensive machine adjustments. This flexibility reduces downtime and increases throughput, making it a cost-effective solution for transformer manufacturers.

In addition to its technical capabilities, the transformer coil winding machine is engineered for ease of use and maintenance. Its user-friendly interface and automated features reduce the learning curve for operators, enabling quick setup and changeover between different coil types and sizes. Routine maintenance is simplified with accessible components and durable parts, ensuring long-term reliability and minimizing operational interruptions

Overall, the Transformer Coil Winding Machine stands out as a comprehensive solution for electrical coil winding needs. Its compatibility with a wide range of round wire diameters, support for copper and aluminium conductors, and capacity to handle different coil shapes make it a versatile and reliable choice. Whether used in small-scale production or large manufacturing facilities, this coil winder machine combines precision, efficiency, and durability to enhance the quality and productivity of transformer coil manufacturing processes.

Investing in this electrical coil winding equipment ensures that manufacturers can meet stringent industry standards while optimizing operational efficiency. The Transformer Coil Winding Machine is not only a practical tool but also a strategic asset for businesses aiming to excel in the competitive field of transformer and coil production.

Features:

• Product Name: Transformer Coil Winding Machine
• Type: Transformer Coil Winding Machine
• Color: Optional
• Mandrel Length: 650mm
• Transverse Width: 500mm
• Center Height: 1000mm
• High precision Transformer Winding Machine for efficient coil production
• Durable and reliable Coil Winder Machine suitable for various transformer coils
• User-friendly interface for easy operation of the Transformer Winding Machine

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under OEM or custom brand options, is an essential piece of equipment designed for various industrial applications involving the precise winding of transformer coils. Manufactured in China and certified by CE, this machine ensures high-quality performance and reliability, making it ideal for factories and workshops specializing in transformer production.

This Transformer Winding Machine is widely used in the manufacturing of electrical transformers and other electromagnetic components. It is especially suitable for scenarios where accuracy and efficiency in coil winding are paramount. The machine supports round conductors ranging from 0.3mm to 5.0mm in diameter, allowing it to handle a variety of coil sizes and specifications. Its transverse width of 500mm accommodates different coil dimensions, making it a versatile choice for diverse production needs.

The Automatic Coil Winding Machine is perfect for small to medium-sized transformer manufacturers who require consistent winding quality combined with productivity.  Packaging is handled with care in export wooden cases, ensuring the machine arrives safely regardless of the destination. The minimum order quantity is just one set, making it accessible for businesses of all scales. Pricing ranges from USD 8,000 to 15,000 per set depending on the model and customization requirements. The delivery time is 35 to 40 days, offering flexibility based on client needs. Payment terms such as T/T are accepted, providing convenient options for international buyers. With a supply capacity of 100 sets per year, the Coil Winder Machine can meet growing demands without compromising lead times. This makes it an ideal solution for companies looking to expand their production capabilities or upgrade their existing winding equipment.

In summary, the Transformer Coil Winding Machine is a reliable, efficient, and customizable solution for various coil winding applications. Its advanced automatic features, robust build, and comprehensive support make it a top choice for transformer manufacturers seeking precision and productivity in their coil winding processes.

Customization:

Our Transformer Coil Winding Machine is available for customization under OEM or custom brand options, manufactured in China with CE certification ensuring top quality and reliability. We offer a minimum order quantity of just 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on specifications.

Each unit is carefully packaged using export wooden cases to guarantee safe delivery. Delivery time is from 35 to 40 days. We accept flexible payment terms including T/T to accommodate your needs. With a supply ability of 100 sets per year, our Electrical Coil Winding Equipment supports a counting range of up to 9999.99, and offers optional colors to fit your preferences. The machine is compatible with both copper and aluminum wires and features a transverse width of 500mm, making it ideal for various winding tasks.

Trust our Transformer Coil Winding Machine to meet your production requirements with excellent performance and customization options.

Support and Services:

Our Transformer Coil Winding Machine is designed to provide precise and efficient winding solutions for transformer coils of various sizes and specifications. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support includes assistance with machine setup, operation guidance, troubleshooting, and maintenance procedures. Our team of experts is available to help you maximize the productivity and accuracy of your coil winding processes. We also provide regular calibration services, and replacement of worn or damaged parts to keep your machine running smoothly. Training sessions are available for your staff to ensure proper handling and to enhance operational skills. For any technical inquiries or service requests, we recommend following the user manual guidelines and maintenance schedules detailed in the product documentation. Proper care and periodic inspections will extend the service life of the Transformer Coil Winding Machine and prevent unexpected downtime.

Our commitment is to deliver reliable and responsive support to help you achieve the best results with your Transformer Coil Winding Machine.

Packing and Shipping:

Product Packaging and Shipping for Transformer Coil Winding Machine

Our Transformer Coil Winding Machine is carefully packaged to ensure it arrives at your location in perfect condition. The machine is securely wrapped with protective materials such as plastic wrap to prevent any damage during transit. It is then placed in a sturdy wooden crate or reinforced cardboard box, depending on the size and weight of the unit.

Shipping is available worldwide through trusted logistics partners, with options for air freight, sea freight, or express courier services based on your requirements. Each shipment is tracked to ensure timely delivery, and we provide all necessary documentation, including customs paperwork, to facilitate a smooth import process. Upon receiving the Transformer Coil Winding Machine, we recommend inspecting the packaging for any signs of damage and verifying the contents against the packing list. Our customer support team is available to assist with any queries or concerns regarding packaging and shipping.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names according to your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: It is manufactured in China.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine holds CE certification, ensuring quality and safety standards.

Q4: What is the minimum order quantity and price range for the Transformer Coil Winding Machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the model and customization.

Q5: What are the packaging and delivery details for the machine?

A5: The machine is packaged in export wooden cases. Delivery time is typically 35–40 days.

Q6: What payment terms are accepted for purchasing the Transformer Coil Winding Machine?

A6: We accept T/T as payment methods.

Q7: What is the yearly supply capacity for the Transformer Coil Winding Machine?

A7: Our supply ability is 100 sets per year.
