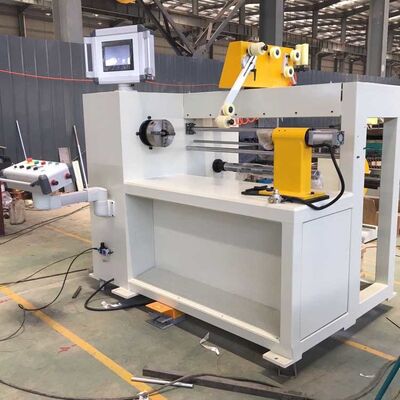

12 Months Warranty Transformer Coil Winding Machine for Round Conductor 0.3-5.0mm with Live Centre Tail Stock

12 Months Warranty Period Transformer Coil Winding Machine Designed for Round Conductor 0.3-5.0mm Including Live Centre Tail Stock

Product Description:

The Transformer Coil Winding Machine is a state-of-the-art piece of equipment designed to meet the demanding needs of modern electrical manufacturing industries. Engineered with precision and durability in mind, this machine is specifically tailored for winding coils used in transformers, ensuring consistent quality and efficiency in every operation. With its robust construction and advanced features, the Transformer Coil Winding Machine stands out as a reliable solution for both small-scale and large-scale production environments.

One of the key highlights of this machine is its impressive transverse width of 600mm, which allows it to accommodate a wide range of coil sizes with ease. This generous width ensures that the winding process is smooth and uninterrupted, reducing downtime and increasing overall productivity. Additionally, the machine offers a customizable color option, enabling manufacturers to choose the aesthetic that best fits their workshop environment or brand identity. This flexibility in appearance does not compromise the machine's performance but rather enhances its integration into various industrial settings.

The Transformer Coil Winding Machine is compatible with both copper and aluminum wires, two of the most commonly used materials in coil manufacturing. This versatility makes the machine an invaluable asset for businesses that work with different wire types, eliminating the need for multiple machines and streamlining the production process. Whether you are dealing with copper wires known for their excellent conductivity or aluminum wires favored for their lightweight properties, this machine handles both with precision and care.

Another significant feature is the machine's center height of 1000mm, which is ergonomically designed to facilitate easy loading and unloading of coils. This height ensures that operators can work comfortably and efficiently, minimizing physical strain during extended periods of use. The thoughtful design contributes to a safer working environment and helps maintain high levels of productivity throughout the day.

As an Automatic Coil Winding Machine, it incorporates advanced automation technology to simplify the coil winding process. Automation not only increases the speed of production but also ensures uniformity and precision in every coil produced. This reduces material waste and improves the overall quality of the finished product. The automatic features also allow for easy programming and quick changeovers between different coil specifications, making it an indispensable tool for dynamic manufacturing settings.

Moreover, the Transformer Coil Winding Machine provides consistent torque and speed control. This motorized operation guarantees smooth and accurate winding, essential for maintaining the integrity and performance of transformer coils. The motor system is designed for energy efficiency and low maintenance, contributing to reduced operational costs over the machine’s lifespan.

In summary, the Transformer Coil Winding Machine combines robust mechanical design with cutting-edge automation technology to deliver outstanding performance in coil manufacturing. Its wide transverse width, ergonomic center height, and long mandrel length make it suitable for a diverse array of coil sizes and materials, including both copper and aluminum wires. Whether you are looking for an Automatic Coil Winding Machine, this product offers the reliability, efficiency, and versatility needed to excel in transformer coil production. Investing in this machine means enhancing your manufacturing capabilities while ensuring high-quality output and operational excellence.

Features:

• Product Name: Transformer Coil Winding Machine
• Type: Transformer Coil Winding Machine
• Warranty Period: 12 Months
• Conductor: Copper or Aluminium Wire
• Color: Optional
• Center Height: 1000mm
• Suitable for use as Electrical Coil Winding Equipment
• Can function as a Wire Coil Winding Machine
• Efficient Transformer Coil Winder for precise winding

Technical Parameters:

Applications:

The Transformer Coil Winding Machine is an essential piece of equipment designed for a wide range of industrial applications, making it highly versatile and efficient. As a CNC Coil Winding Machine, it excels in precision winding of transformer coils and other electromagnetic components.

This Transformer Winding Machine is ideal for use in transformer manufacturing plants and electrical component workshops where accuracy and repeatability are critical. With a counting range of up to 9999.99, it guarantees precise control over wire length, which is crucial for maintaining consistent coil specifications. The machine supports both copper and aluminium wire conductors, offering flexibility to meet diverse production requirements.

Brands can customize this CNC Coil Winding Machine to fit their specific needs, with OEM and custom branding options available. Originating from China, the machine carries CE certifications, ensuring it meets international quality and safety standards. It is packaged securely in export wooden cases or vacuum packaging to protect the equipment during transit.

The Transformer Coil Winding Machine is suitable for various application scenarios including transformer coil production and other electromagnetic coil assembly tasks. Its live centre tail stock provides stable support for the wire during winding, preventing deformation and ensuring uniform coil shape. This makes it particularly useful in industries such as electrical engineering and power supply equipment fabrication.

With a supply ability of 100 sets per year, the machine caters to both small-scale workshops and large manufacturing facilities. The minimum order quantity is just one set, making it accessible for businesses of all sizes. Pricing ranges from USD 10,000 to 15,000 per set, reflecting different configurations and customization levels. Delivery time is 35–40 days. Payment terms are flexible, accepting T/T, facilitating smooth international transactions. Whether you are producing transformer coils or other specialized winding tasks, this Transformer Coil Winding Machine offers reliability, precision, and adaptability to enhance your production capabilities.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services to meet your specific requirements. As an OEM/Custom Brand manufacturer based in China, we provide high-quality Automatic Coil Winding Machines certified with CE standards. Each Coil Winder Machine is meticulously designed with a transverse width of 600mm, suitable for winding round conductors ranging from 0.3 to 5.0mm in diameter. The machine features a counting range of 9999.99, ensuring precise coil production.

We accept a minimum order quantity of just 1 set, with prices ranging from USD 10,000 to 15,000 per set, depending on the customization level. Packaging is handled with care, using export wooden cases to ensure safe delivery. Flexible payment terms are available, including T/T. Our supply ability reaches up to 100 sets per year, guaranteeing timely fulfillment of your orders. Choose our Transformer Coil Winding Machine for reliable, efficient, and fully customizable coil winding solutions that enhance your production capabilities.

Support and Services:

Our Transformer Coil Winding Machine is engineered to deliver precision and efficiency in the manufacturing of transformer coils. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and maintenance services. Our team of skilled technicians is available to assist with installation, calibration, troubleshooting, and routine maintenance. We offer detailed user manuals and instructional guides to help you operate the machine safely and effectively.

In case of any technical issues, our support staff is equipped to provide remote diagnostics and, if necessary, on-site repair services to minimize downtime. Spare parts and accessories are readily available to ensure your machine remains in excellent working condition. We are committed to delivering exceptional after-sales service to support your manufacturing needs and help you achieve consistent, high-quality transformer coil production.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packaged to ensure safe delivery and protection during transit. Each machine is securely wrapped with protective materials such as plastic film to prevent any damage. It is then placed inside a sturdy wooden crate or reinforced cardboard box, depending on the size and weight of the machine. The packaging is designed to withstand rough handling and environmental factors, ensuring the product arrives in perfect working condition.

Shipping:

We offer reliable shipping options for the Transformer Coil Winding Machine to various international and domestic destinations. Shipping is carried out by trusted logistics providers with experience in handling industrial machinery. The product is shipped via air freight, sea freight, or land transport based on customer preference, destination, and urgency. Tracking information is provided once the shipment is dispatched. Our team ensures timely delivery and coordinates with customers to facilitate smooth customs clearance and receipt of the product.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or Custom Brand as per customer requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: It is manufactured in China.

Q3: What certifications does this machine have?

A3: The Transformer Coil Winding Machine is certified with CE.

Q4: What is the minimum order quantity and price range?

A4: The minimum order quantity is 1 set, and the price ranges from USD 10,000 to 15,000 per set depending on the model and customization.

Q5: What are the delivery time and packaging details?

A5: The delivery time is 35–40 days. The machines are packaged in export wooden cases for safe shipment.

Q6: What payment terms are accepted?

A6: We accept T/T as payment methods.

Q7: What is the yearly supply ability of the Transformer Coil Winding Machine?

A7: We can supply up to 100 sets per year.
