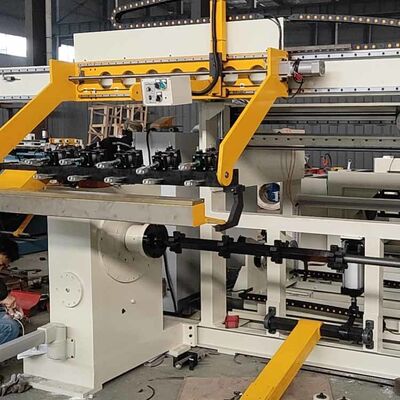

Transformer Foil Winding Machine with Two Pieces Decoiler, TIG Welding, and 22kw Winding Power for Efficient Material Processing

Transformer Foil Winding Machine with Two Pieces Decoiler Number Providing Consistent Welding and Material Processing

Product Description:

The Transformer Foil Winding Machine is a special equipment specifically designed for the precise and efficient winding of transformer foils. This machine is engineered to meet the rigorous demands of transformer manufacturing, ensuring high-quality winding with consistent performance. With its robust construction and state-of-the-art features, the Transformer Foil Winding Machine stands out as an essential tool for modern transformer production lines.

One of the key specifications of this machine is its Decoiler Width of 1450mm, which allows it to accommodate a wide range of foil sizes, making it highly versatile for various transformer applications. The wide decoiler ensures smooth unwinding of the foil material, minimizing the risk of damage or deformation during the winding process. This feature is particularly important for maintaining the integrity and electrical properties of transformer foils.

The welding mode employed by the Transformer Foil Wind Device is TIG Welding. TIG welding is a reliable and efficient method that creates strong and precise welds, ensuring that the foil layers are firmly bonded together without compromising their quality. This welding technique enhances the mechanical stability of the foil assembly, which is crucial for the overall performance and longevity of transformers. Another critical attribute of the Transformer Foil Winding Machine is its Center Height of the winding shaft, which is set at 900mm. This ergonomic height facilitates easy loading and handling of materials, reducing operator fatigue and improving workflow efficiency. The center height is optimized to integrate seamlessly with other equipment in the manufacturing line, enabling smooth transitions and automated processes.

Powering the winding mechanism is a 22kw winding power unit, which provides ample energy to handle high-speed and heavy-duty winding tasks. The powerful motor ensures consistent torque and speed control, allowing for precise tensioning and alignment of the foil during winding. This results in uniform winding layers that contribute to the transformer’s electrical performance and durability.

The welding speed of the Transform Foil Wind Machine is 0.8 meters per minute, striking a balance between efficiency and quality. The moderate welding speed also reduces the risk of defects and improves the overall reliability of the finished transformer components. In addition to its technical specifications, the Transformer Foil Winding Machine is designed with user-friendly controls and safety features. Operators can easily adjust parameters such as welding speed, power, and tension to suit different foil materials and transformer designs. The machine’s sturdy frame and precision engineering ensure stable operation and long service life, making it a cost-effective solution for transformer manufacturers.

Whether you are producing small distribution transformers or large power transformers, the Transformer Foil Wind Device offers the flexibility and performance needed to meet diverse production requirements. Its combination of wide decoiler width, TIG welding mode, ergonomic center height, powerful winding motor, and optimized welding speed makes it an indispensable asset in transformer manufacturing.

In summary, the Transformer Foil Winding Machine represents the pinnacle of technology in foil winding equipment. It delivers precision, efficiency, and reliability, enabling manufacturers to produce high-quality transformer foils that meet stringent industry standards. Investing in this machine will significantly enhance production capabilities and product quality, ensuring a competitive edge in the transformer market.

Features:

• Product Name: Transformer Foil Winding Machine
• Winding Power: 22kw for efficient operation
• Equipped with TIG Welder for precise welding
• Main Shaft Size: 80x80x1750mm ensuring stability and durability
• Includes Two Pieces Decoiler for enhanced productivity

Technical Parameters:

Applications:

The Transformer Foil Winding Machine, model BRJ1400-2 from the reputable STT brand, is designed to meet the demanding needs of transformer manufacturing industries. With its robust winding power of 22kw and advanced TIG welding mode, this Transformer Foil Winding Machine ensures precision and efficiency in foil winding processes. The machine supports copper film thickness ranging from 0.2 to 2.0mm and accommodates foil widths up to a maximum of 1400mm, making it highly versatile for various transformer foil specifications.

This Transformer Foil Winding Machine is ideal for use in production environments where high-quality transformer winding is essential. It excels in applications such as manufacturing power transformers, distribution transformers, and other electrical equipment requiring tightly wound copper foil coils. Its TIG welding feature guarantees strong and reliable joints, which are critical for the electrical performance and longevity of transformers.

Manufacturers who require precise and consistent winding results will find the BRJ1400-2 Transformer Foil Winding Machine indispensable. The machine’s capacity to handle a wide range of copper film thicknesses and foil widths enables it to cater to both small-scale and large-scale transformer production lines. Additionally, the machine’s seaworthy packaging ensures safe delivery, while the supply ability of 100 sets per year and a delivery time of 45 days make it a dependable choice for continuous production demands.

Purchasing this Transformer Foil Winding Machine requires a minimum order quantity of just 1 set, with pricing available on a negotiable basis, making it accessible for businesses of varying sizes. Payment terms are flexible with T/T accepted, facilitating smooth transactions. Overall, the BRJ1400-2 model from STT offers a comprehensive solution for transformer manufacturers seeking efficiency, reliability, and high performance in their foil winding operations.

Customization:

Introducing the STT Transformer Foil Winding Machine, model number BRJ1400-2, designed for high precision and efficiency in foil winding applications. Our Transformer Foil Wind Machine features a welding speed of 0.8m/min and a maximum foil width of 1400mm, ensuring optimal performance for your production needs. This Transformer Foil Wind Device comes equipped with two decoilers, each with a width of 1450mm, and a robust main shaft sized at 80x80x1750mm to handle demanding winding tasks seamlessly. The Transformer Foil Winding Machine is built to meet the highest standards with seaworth packing to guarantee safe delivery. We offer a minimum order quantity of 1 set with a supply ability of 100 sets per year. Price is negotiable to suit your budget requirements. Delivery time is approximately 45 days after order confirmation, with payment terms based on T/T.  Customize your Transformer Foil Winding Machine with STT to achieve superior winding precision and reliability. Contact us today to discuss your specific requirements and get a tailored solution for your foil winding process.

Support and Services:

Our Transformer Foil Winding Machine is designed to provide precise and efficient winding solutions for transformer foil applications. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Our technical support team is available to assist with installation guidance, operational training, and troubleshooting. We provide detailed user manuals and maintenance documentation to help you understand the machine’s functions and upkeep requirements. Regular maintenance services are available to keep your Transformer Foil Winding Machine running smoothly. This includes routine inspections, lubrication, calibration, and replacement of worn parts to prevent unexpected downtime.

In addition, our engineers can also customize solutions tailored to your specific winding needs. For any technical inquiries or service requests, our support team is committed to providing timely and effective assistance to minimize disruption to your operations and maximize productivity.

Packing and Shipping:

Product Packaging:

The Transformer Foil Winding Machine is carefully packaged to ensure safe delivery and protection from damage during transit. It is securely wrapped with protective materials

Shipping:

Shipping of the Transformer Foil Winding Machine is handled by reliable freight carriers with experience in handling heavy machinery. The product can be shipped via sea, air, or land transportation depending on the destination and customer requirements. Tracking information is provided to customers for real-time shipment updates.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is branded STT, and the model number is BRJ1400-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity is 1 set.

Q3: What are the payment terms for purchasing the Transformer Foil Winding Machine?

A3: The payment terms are T/T (Telegraphic Transfer).

Q4: How long does it take to deliver the machine after placing an order?

A4: The delivery time is approximately 45 days.

Q5: How is the machine packaged for shipment?

A5: The machine is packaged using seaworth packing to ensure safe delivery.

Q6: What is the supply capacity of the Transformer Foil Winding Machine?

A6: The supply ability is 100 sets per year.

Q7: Is the price fixed or negotiable?

A7: The price is negotiable depending on the order quantity and specific requirements.
