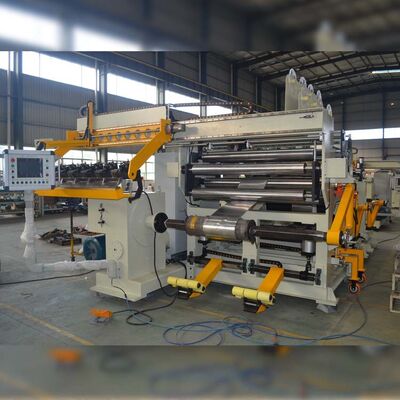

Heavy Duty Transformer Foil Winding Machine with TIG Welding, 1600mm Foil Width and 30kW Winding Power

Heavy Duty Transformer Foil Winding Machine Featuring TIG Welder and Welding Speed 0.8m per Minute for Operation

Product Description:

The Transform Foil Wind Machine is an advanced and highly efficient solution designed specifically for the precise winding of aluminum or copper foil used in transformer manufacturing. This Transformer Foil Wind Device is engineered to meet the demanding requirements of modern transformer production, ensuring exceptional quality, consistency, and productivity.

One of the standout features of the Transformer Foil Winding Machine is its impressive TIG welding speed of 0.8 meters per minute. This speed enables manufacturers to achieve rapid production cycles without compromising the integrity of the foil winding process. By maintaining a steady and controlled welding pace, the machine ensures that each foil layer is securely bonded, contributing to the overall reliability and performance of the transformer coils.

The Transform Foil Wind Machine accommodates foil widths of up to 1600 millimeters, making it versatile enough to handle a wide range of transformer sizes and specifications. Whether working with narrow or wide foil strips, the Transformer Foil Wind Device delivers consistent results, offering flexibility to manufacturers who require customization in their winding processes. This broad foil width capacity is particularly beneficial for producing transformers with varying power ratings and physical dimensions. At the core of the Transfomer Foil Winding Machine’s welding operation is the TIG (Tungsten Inert Gas) welder. TIG welding is renowned for its precision and high-quality welds, especially when working with aluminum and copper materials. The use of TIG welding technology in this Transformer Foil Wind Device ensures that the foil joints are clean, strong, and free from defects, which is critical for maintaining electrical conductivity and mechanical stability in transformer windings.

The winding power of the machine is rated at 30 kilowatts, providing ample energy to drive the winding process smoothly and efficiently. This power rating supports the machine’s ability to handle tough materials such as aluminum and copper foil, ensuring consistent tension and alignment throughout the winding operation. The robust power system contributes to minimizing downtime and maximizing throughput, which is essential for high-volume manufacturing environments.

The Transform Foil Wind Machine is specifically designed to work with aluminum or copper foil winding materials, both of which are widely used in transformer coil production. Aluminum foil offers the advantages of being lightweight and cost-effective, while copper foil is preferred for its superior electrical conductivity and durability. The Transfoirmer Foil Wining Machine’s compatibility with both materials allows manufacturers to select the optimal foil type based on their specific transformer design and performance requirements.

In addition to its technical specifications, the Transformer Foil Wind Device is built with user-friendly controls and automation features that simplify operation and reduce the risk of errors. Operators can easily adjust parameters to suit different foil widths and thicknesses, ensuring precise control over the winding process. The machine’s design also emphasizes safety and reliability, incorporating protective measures to safeguard both the equipment and personnel during operation.

Overall, the Transform Foil Wind Machine represents a significant advancement in transformer foil winding technology. Its combination of a high welding speed of 0.8m/min, maximum foil width capacity of 1600mm, TIG welding precision, 30kw winding power, and compatibility with aluminum or copper foil materials makes it an indispensable tool for transformer manufacturers aiming to enhance production efficiency and product quality. By integrating this Transformer Foil Wind Device into their production lines, manufacturers can achieve superior winding accuracy, reduce material waste, and ultimately deliver transformers that meet stringent industry standards.

For those seeking a reliable, powerful, and versatile foil winding solution, the Transformer Foil Winding Machine stands out as an excellent investment that drives innovation and excellence in transformer manufacturing.

Features:

• Product Name: Transformer Foil Winding Machine
• Winding Material: Aluminum or Copper Foil
• Power Supply: 3-phase 380V, 50Hz
• Center Height: 900mm
• Decoiler Width: 1650mm
• Model Reference: BRJ1600-2
• High precision and efficiency in foil winding
• Suitable for diverse transformer foil materials
• Reliable operation with stable power supply options
• Ergonomic design for ease of use and maintenance

Technical Parameters:

Applications:

The STT Transformer Foil Winding Machine, model BRJ1600-2, is an advanced Transformer Foil Wind Device designed to meet the demanding requirements of transformer manufacturing and related industries. This machine is ideal for producing high-quality transformer windings with precision and efficiency, making it an essential tool in both small-scale workshops and large industrial production lines. The Transformer Foil Winding Machine is widely used in the electrical and electronics industry, where transformers are a critical component. It excels in applications involving the winding of transformer foils for power transformers, distribution transformers, and special transformers used in various electrical equipment. Its TIG welding mode ensures strong and reliable connections between foil layers, enhancing the durability and performance of the final product.

Thanks to its dual insulation decoilers with a decoiler width of 6, the BRJ1600-2 model can handle large foil rolls efficiently, reducing downtime and increasing productivity. It operates on a power supply of 3-phase 380V, 50Hz, making it compatible with most industrial power systems worldwide. The machine is perfect for occasions where precision foil winding is crucial, such as in the production of transformers for power grids, renewable energy equipment, and industrial machinery.

Manufacturers looking to invest in a reliable Transformer Foil Wind Device will appreciate STT’s commitment to quality and service. With a supply ability of 100 sets per year and a minimum order quantity of just 1 set, this machine offers flexibility for different production scales. The price is negotiable, allowing buyers to find a cost-effective solution tailored to their needs. Each unit is carefully packaged using Seaworth Packing to ensure safe delivery within 45 days after order confirmation.

Payment terms are straightforward with T/T accepted, facilitating smooth transactions. The Transformer Foil Winding Machine is suitable for various production scenarios, including new transformer manufacturing facilities, upgrade projects in existing plants, and specialized winding workshops. Its robust design and efficient operation make it a valuable asset for any enterprise aiming to enhance transformer winding quality and production efficiency. In summary, the STT BRJ1600-2 Transformer Foil Wind Device stands out as a versatile and reliable solution for transformer foil winding applications.

Customization:

Introducing the STT Transformer Foil Winding Machine, model BRJ1600-2, designed for precision and efficiency in foil winding applications. This Transformer Foil Winidng Machine is capable of handling aluminum or copper foil materials with a copper foil width range of 200-1600mm, ensuring versatility for various transformer manufacturing needs.

The Transformer Foil Winding Machine features a center height of 900mm and employs TIG welding as its welding mode, guaranteeing strong and reliable winding results. With a minimum order quantity of just 1 set, customers can easily customize their orders to fit specific production requirements. STT offers a supply ability of 100 sets per year, with a delivery time of 45 days. The Transformer Foil Winding Machine comes with seaworth packing to ensure safe and secure transportation. Payment terms are flexible, with T/T accepted, and pricing is negotiable to accommodate different client needs.

Choose the STT BRJ1600-2 Transformer Foil Winding Machine for a robust and customizable winding solution that meets your production demands efficiently and reliably.

Support and Services:

Our Transformer Foil Winding Machine is designed to provide precise and efficient winding solutions for transformer manufacturing. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Our technical support team is available to assist with installation, commissioning, and operation guidance to help you get started quickly and effectively. We provide detailed user manuals and training sessions tailored to your specific needs. In addition, we offer regular maintenance services to keep your machine running smoothly and minimize downtime. Our experts can perform inspections, troubleshoot issues, and supply genuine replacement parts to maintain the quality and reliability of your equipment.

For any technical inquiries or service requests, our support team is committed to providing prompt and professional assistance to ensure your Transformer Foil Winding Machine operates at peak performance.

Packing and Shipping:

Product Packaging:

The Transformer Foil Winding Machine is carefully packaged to ensure safe delivery and protection against damage during transportation.

Shipping:

We offer reliable shipping options to deliver the Transformer Foil Winding Machine to your location promptly and safely. The machine can be shipped via sea freight or land transportation depending on the destination and customer preference. Prior to shipping, the machine undergoes thorough inspection and testing to ensure it is in perfect working condition. Tracking information and estimated delivery times are provided to keep you informed throughout the shipping process.

FAQ:

Q1: What is the brand and model of this Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is from the brand STT, and the model number is BRJ1600-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity for the STT BRJ1600-2 Transformer Foil Winding Machine is 1 set.

Q3: What are the payment terms for purchasing this machine?

A3: The payment terms for the Transformer Foil Winding Machine are T/T (Telegraphic Transfer).

Q4: How long does it take to deliver the machine after placing an order?

A4: The delivery time for the STT BRJ1600-2 Transformer Foil Winding Machine is approximately 45 days.

Q5: What kind of packaging is used for the machine during shipment?

A5: The machine is packaged with seaworth packing to ensure safe delivery.
